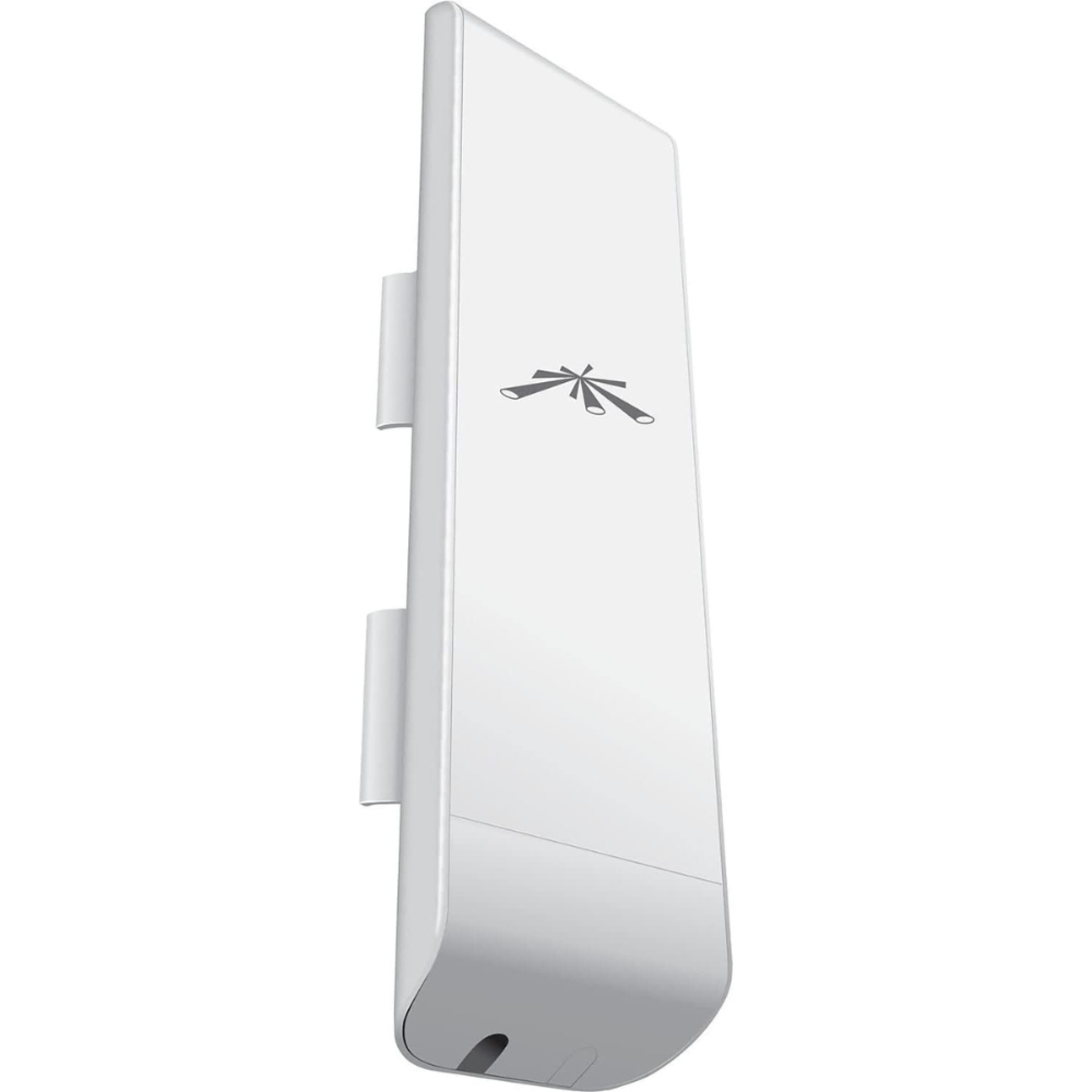

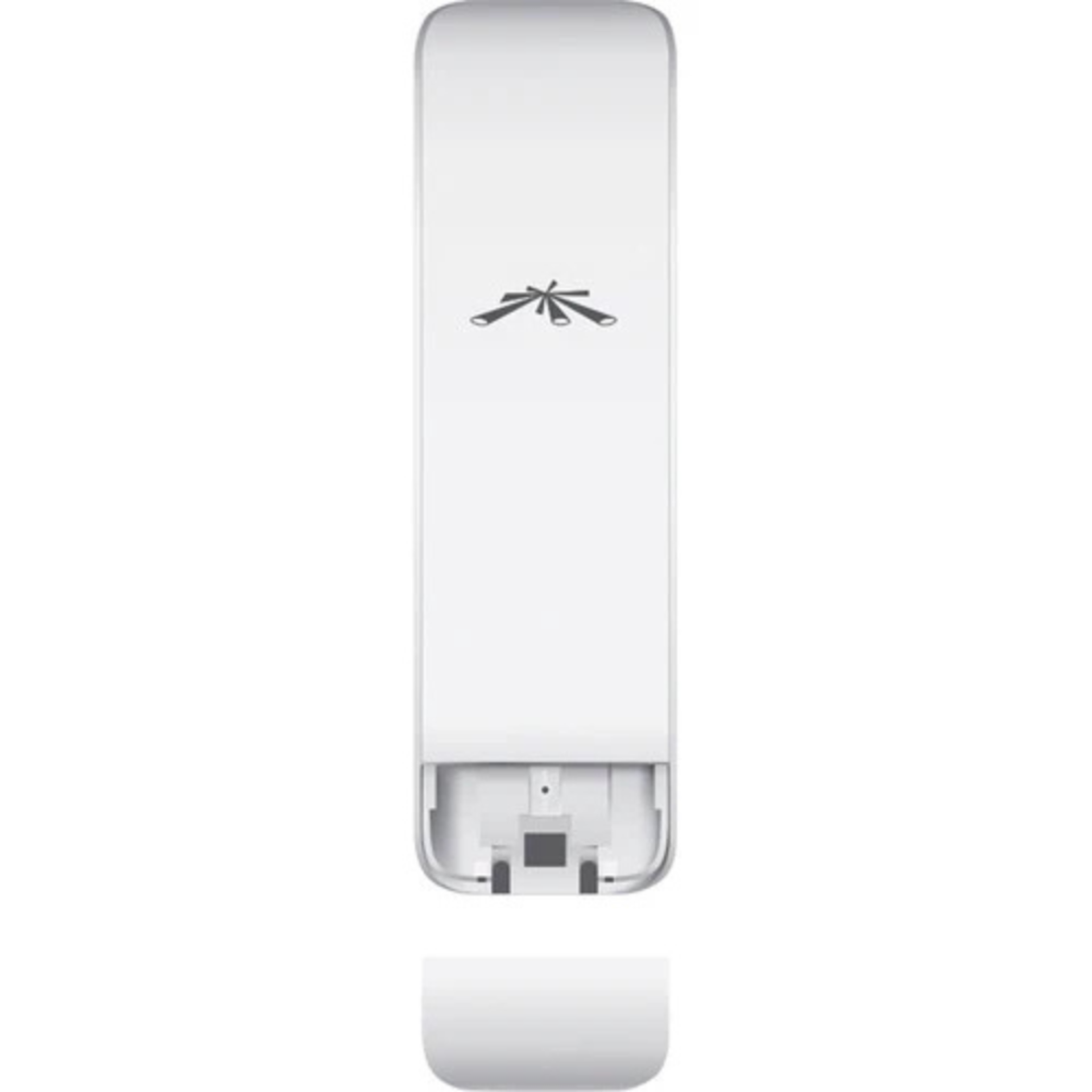

Ubiquiti NanoStation M2 (NSM2)

Ubiquiti NanoStation M2 (NSM2) Overview

The Ubiquiti NanoStation M2 (NSM2) is a reliable, compact outdoor Customer Premises Equipment (CPE) designed for high-performance 2.4GHz wireless networks. Combining an integrated 11dBi antenna with 2x2 MIMO technology, this model delivers stable, long-range connectivity in point-to-point and point-to-multipoint setups.

Ubiquiti NanoStation M2 (NSM2) High Real-World Throughput and Range

The NanoStation M2 achieves real-world TCP/IP throughput exceeding 150 Mbps, supporting data, video, and voice traffic over distances up to 15 kilometers in clear line of sight. This makes it an excellent choice for bridging buildings, extending broadband into rural areas, and supporting professional wireless networks.

Ubiquiti NanoStation M2 (NSM2) 11dBi Dual-Polarity Antenna Design

Equipped with an 11dBi dual-polarity antenna, the NSM2 focuses the RF signal into a directional beam for reliable long-distance performance. The design also helps reduce interference by improving signal isolation, which is crucial in noisy RF environments.

Ubiquiti NanoStation M2 (NSM2) airMAX TDMA Protocol

The NanoStation M2 uses Ubiquiti’s airMAX TDMA protocol to organize transmissions between devices. By coordinating time slots, airMAX reduces hidden-node collisions, improves network scalability, and ensures low latency even under heavy load.

Ubiquiti NanoStation M2 (NSM2) Dual Ethernet Ports and Passive PoE

This device includes two 10/100 Ethernet ports, with the secondary port offering PoE passthrough to power downstream devices like IP cameras. A single 24V passive PoE injector powers the entire unit, simplifying installation and reducing cable clutter.

Ubiquiti NanoStation M2 (NSM2) Rugged Outdoor Construction

Housed in a weather-resistant enclosure, the NanoStation M2 operates reliably in temperatures ranging from –30°C to 75°C. Its UV-stabilized plastic casing protects internal components from harsh weather conditions, ensuring long-term stability outdoors.

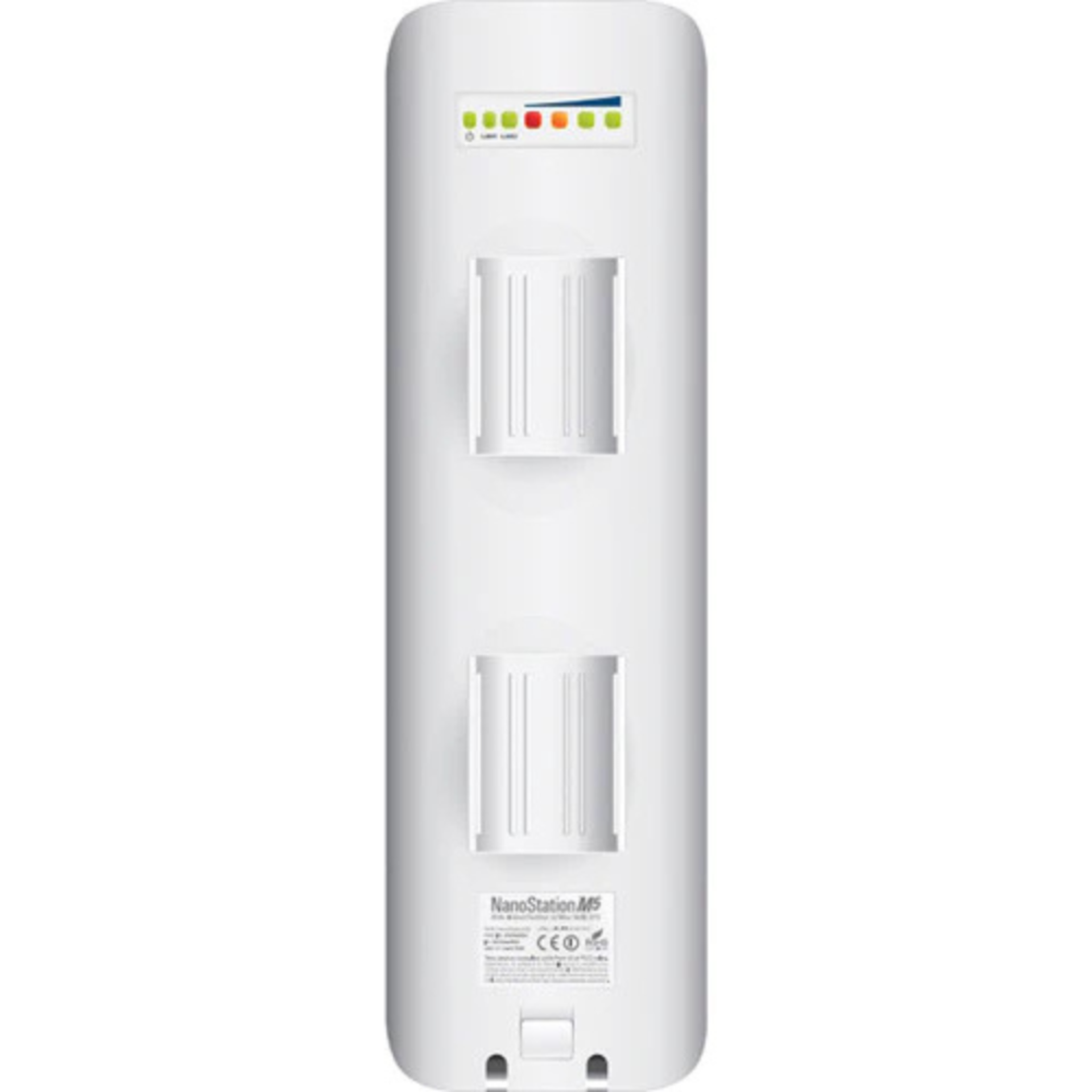

Ubiquiti NanoStation M2 (NSM2) Compact Design and Easy Mounting

The slim form factor allows for discreet installations on poles, masts, and walls. The included mounting hardware provides secure attachment and adjustable alignment to fine-tune signal strength during setup.

Ubiquiti NanoStation M2 (NSM2) Technical Specifications

Here are the key technical details:

• Frequency Range: 2.4GHz (2412–2462 MHz)

• Antenna Gain: 11dBi

• MIMO Configuration: 2x2

• Maximum Throughput: 150+ Mbps

• Ethernet Ports: 2x 10/100 Mbps

• Power Input: 24V passive PoE

• Power Consumption: Max ~8W

• Dimensions: 294 x 31 x 80 mm

• Weight: 0.4 kg

• Operating Temperature: –30°C to 75°C

• Wind Survivability: High outdoor resistance

• Enclosure: UV-stabilized plastic

These specifications demonstrate the balance between performance and durability that the NanoStation M2 delivers.

Ubiquiti NanoStation M2 (NSM2) Ideal Applications

The NanoStation M2 is ideal for:

• Rural broadband connections to homes or offices

• Long-distance wireless bridges between buildings

• Outdoor public WiFi hotspots

• Surveillance backhaul with PoE-powered cameras

• Small business network extensions

Ubiquiti NanoStation M2 (NSM2) Final Thoughts

The Ubiquiti NanoStation M2 (NSM2) combines dependable 2.4GHz performance, high gain, and efficient MIMO technology in a compact, affordable package. Whether you are deploying a point-to-point link, connecting multiple clients in a PtMP network, or extending coverage to hard-to-reach areas, this device provides reliable outdoor wireless connectivity with minimal complexity.
