Ubiquiti NanoStation 5AC Loco | 13 dBi 5 GHz CPE

Ubiquiti NanoStation 5AC Loco | 13 dBi 5 GHz CPE

• Suitable for indoor and outdoor installations
• Radio and antenna are combined into a single body that takes up minimal space
• Uses latest ESD Protection to help protect against power surges

Ubiquiti NanoStation 5AC Loco (Loco5AC) Overview

The Ubiquiti NanoStation 5AC Loco (Loco5AC) is a compact, high-performance outdoor Customer Premises Equipment designed to deliver reliable 5GHz wireless connectivity. Ideal for bridging long distances or serving as a client device in point-to-multipoint networks, it combines speed, efficiency, and ease of deployment in a slim form factor.

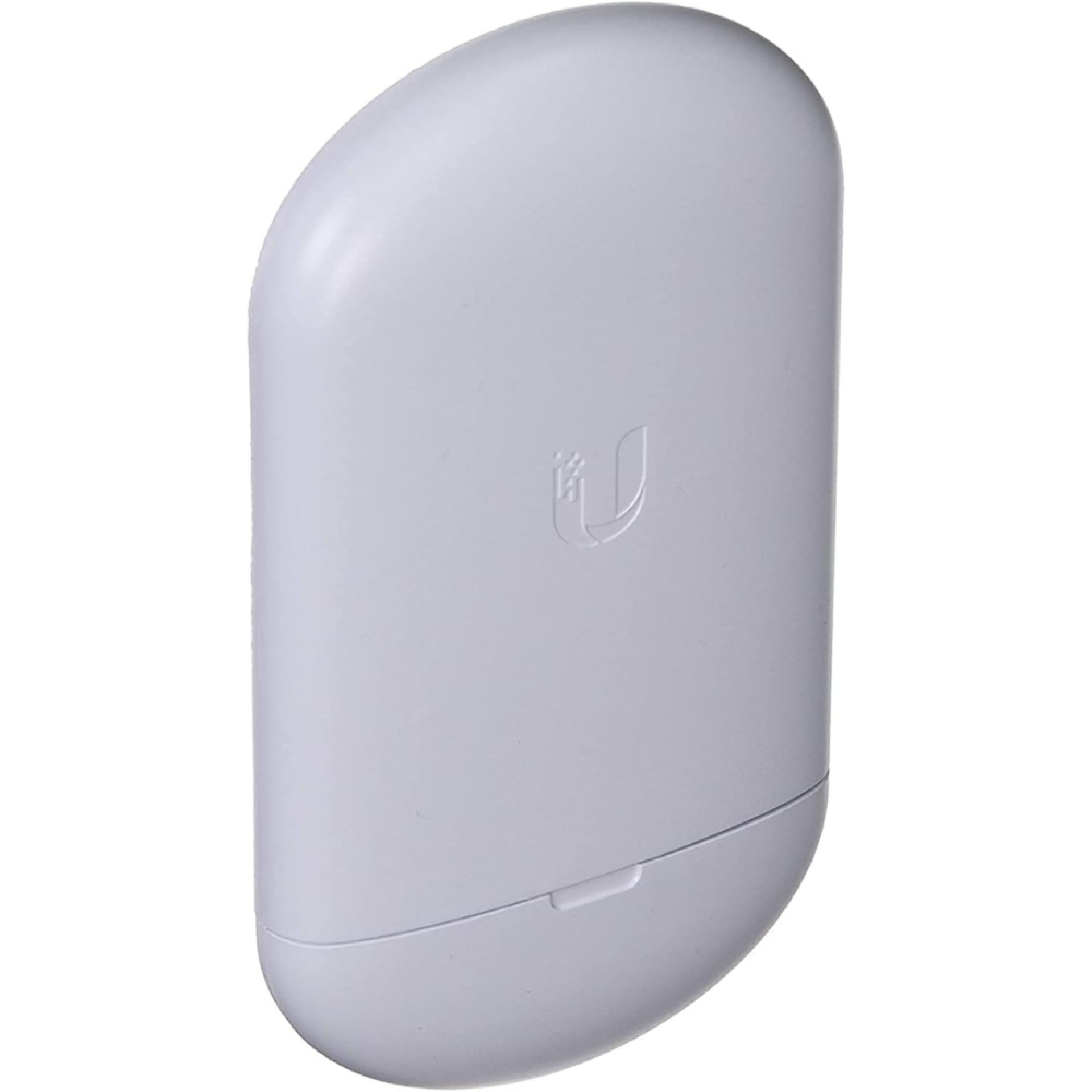

Ubiquiti NanoStation 5AC Loco (Loco5AC) Compact Design with Strong Performance

Despite its small size, the NanoStation 5AC Loco integrates a 13dBi dual-polarity antenna, providing a focused beam to improve signal quality and extend coverage. Its sleek housing measures only 179 by 77.5 by 59 millimeters and weighs just 180 grams, making it an excellent choice for installations with limited space.

Ubiquiti NanoStation 5AC Loco (Loco5AC) High Throughput and Range

Powered by airMAX ac technology, the Loco5AC delivers real-world throughput exceeding 450 Mbps. The device operates in the 5GHz band and supports channel widths from 10 to 80 MHz, making it suitable for congested environments or dedicated backhaul links. Clear line-of-sight deployments can reach distances beyond 10 kilometers.

Ubiquiti NanoStation 5AC Loco (Loco5AC) Dedicated WiFi Management Radio

A unique feature of the NanoStation 5AC Loco is its dedicated 2.4GHz WiFi management radio. This radio enables installers to connect directly to the device using a smartphone or tablet for setup and diagnostics, without interfering with the main data connection. This simplifies configuration and troubleshooting, saving time during installation.

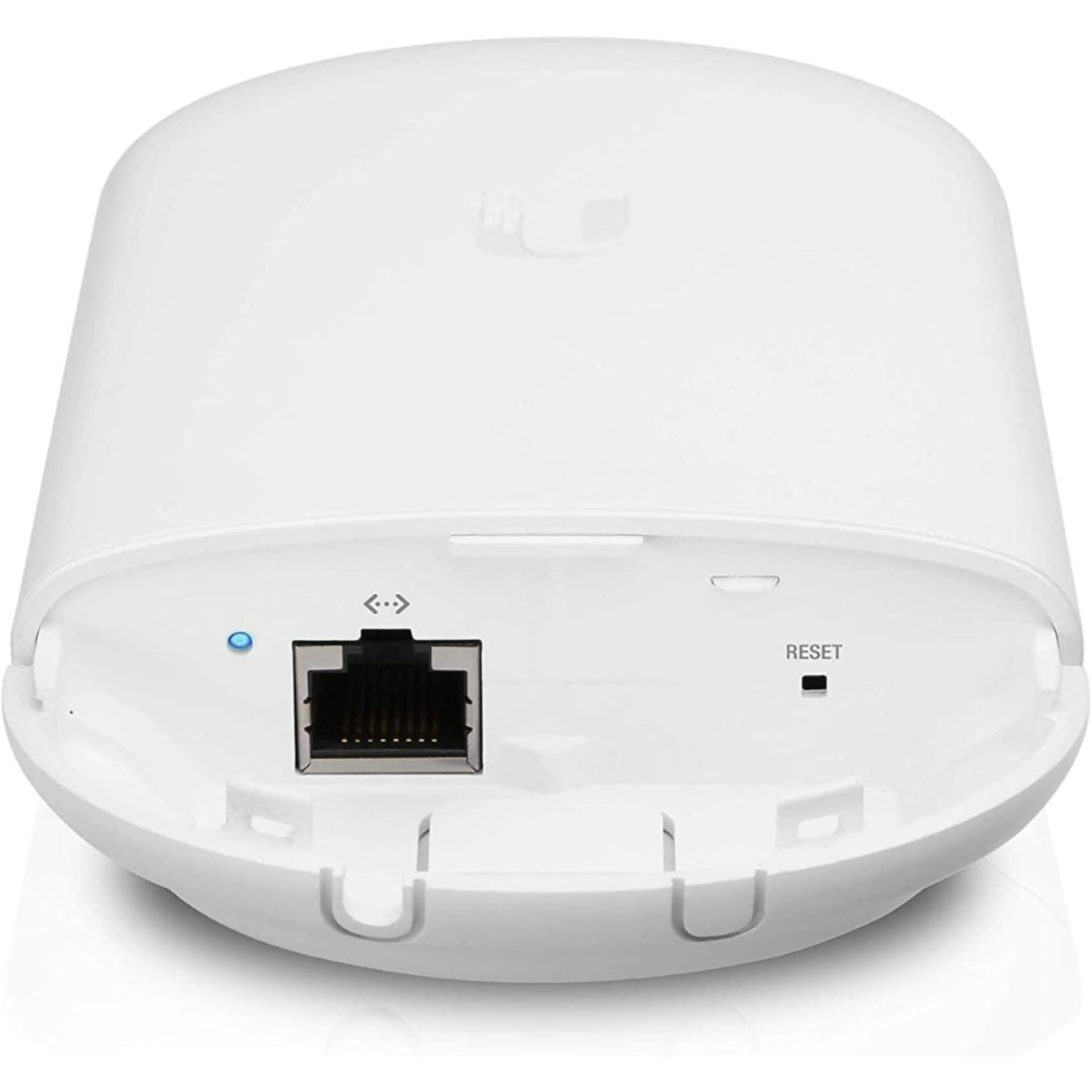

Ubiquiti NanoStation 5AC Loco (Loco5AC) Gigabit Ethernet and Passive PoE

The Loco5AC includes a Gigabit Ethernet port, ensuring fast data transfer and compatibility with modern networks. The device is powered using 24V passive PoE, consuming approximately 7 to 8 watts. This reduces cabling complexity and supports flexible installation on rooftops, poles, or masts.

Ubiquiti NanoStation 5AC Loco (Loco5AC) Rugged Outdoor Build

Designed for demanding outdoor environments, the NanoStation 5AC Loco operates reliably in temperatures ranging from –40 to 70 degrees Celsius. Its UV-stabilized enclosure resists weather and harsh sunlight, ensuring long-term durability in all conditions.

Ubiquiti NanoStation 5AC Loco (Loco5AC) Ideal Use Cases

This device is perfect for:

• Building point-to-point wireless bridges between buildings

• Extending networks to remote sites such as sheds or barns

• Acting as a CPE in point-to-multipoint airMAX ac networks

• Backhauling IP surveillance camera systems

• Delivering high-speed connections to temporary event locations

Ubiquiti NanoStation 5AC Loco (Loco5AC) Technical Specifications

Here are the key technical details:

• Frequency Range: 5GHz (5150–5875 MHz)

• Antenna Gain: 13dBi

• MIMO: 2x2

• Maximum Throughput: 450+ Mbps

• Ethernet Ports: 1x Gigabit Ethernet

• Power Input: 24V passive PoE

• Power Consumption: Approximately 7–8W

• Beamwidth: ~45° horizontal and vertical

• Dimensions: 179 x 77.5 x 59.1 mm

• Weight: 180g

• Operating Temperature: –40°C to 70°C

• Enclosure: UV-stabilized outdoor casing

These specifications show the NanoStation 5AC Loco is compact yet powerful, making it a great fit for professional outdoor networking.

Ubiquiti NanoStation 5AC Loco (Loco5AC) Final Thoughts

The Ubiquiti NanoStation 5AC Loco offers an excellent combination of performance, efficiency, and convenience in a remarkably small footprint. Whether you need a reliable CPE for point-to-multipoint networks or a compact bridge for remote connectivity, this device provides high-speed, long-range wireless links with minimal setup time. It’s a professional-grade solution that delivers impressive results wherever you deploy it.
