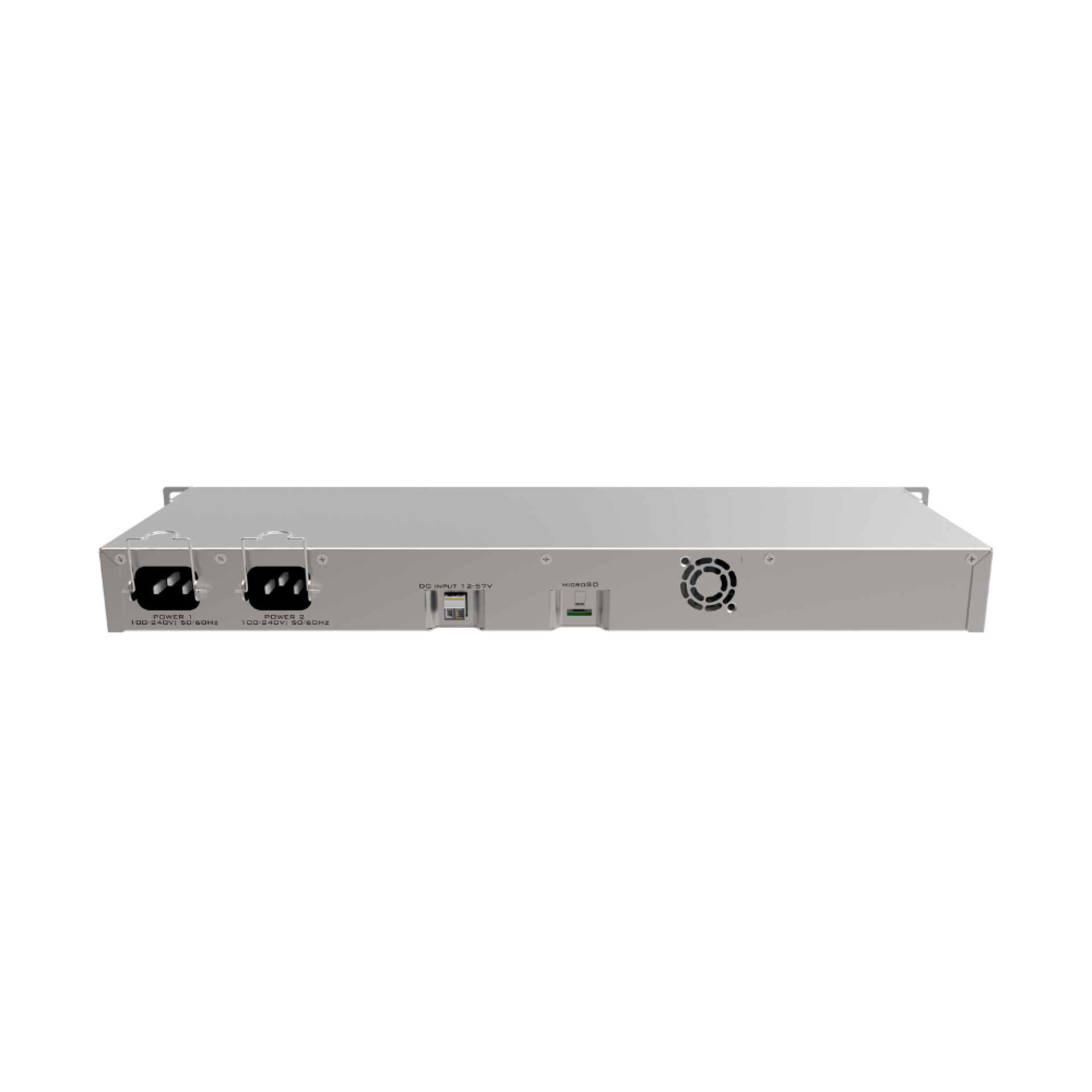

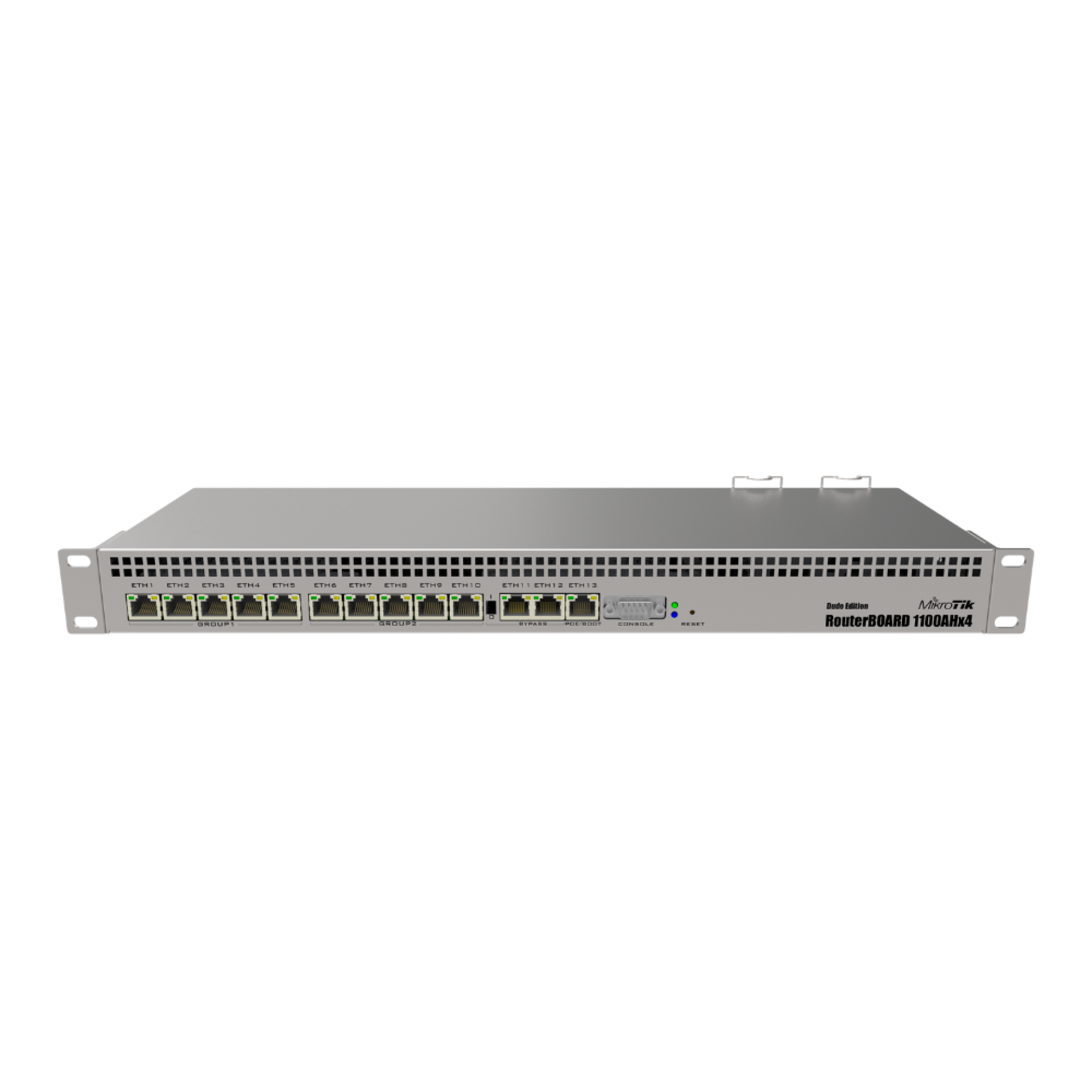

MikroTik RB1100AHx4 Dude Edition Router

Specifications for MikroTik RB1100AHx4 Dude Edition Router

• 13 x Gigabit Ethernet ports

• Annapurna Alpine AL21400 quad-core CPU (1.4GHz)

• 1GB DDR4 RAM

• Built-in The Dude server package

• MicroSD and M.2 slots

• Passive cooling with dual redundant fans

• 1U rackmount metal case

MikroTik RB1100AHx4 Dude Edition Built for Modern Enterprise Backbones

The MikroTik RB1100AHx4 Dude Edition—also known by its part number RB1100Dx4—is a powerful enterprise-grade router designed to provide speed, scalability, and integrated network monitoring. Housed in a durable 1U rackmount metal enclosure, this unit is powered by a quad-core 1.4GHz Annapurna Labs CPU that ensures low latency and strong throughput across even the most demanding Layer 3 environments.

Designed for ISPs, data centers, and large corporate networks, the RB1100AHx4 combines performance with manageability and includes an embedded The Dude server, MikroTik’s powerful network monitoring tool.

MikroTik RB1100AHx4 Dude Edition Equipped for High Port Density Deployments

This router features a total of 13 Gigabit Ethernet ports, making it well-suited for edge and distribution layer deployments. With these ports, you can easily manage multiple VLANs, interconnect racks, or bridge networks across large facilities. This density eliminates the need for multiple devices and simplifies cabling within your rack.

Its versatile port arrangement enables deployment as a firewall, core router, or high-performance router/NAT device with flexible port mapping for redundancy, traffic shaping, or security segmentation.

MikroTik RB1100AHx4 Dude Edition Optimized for Monitoring and Network Management

One of the defining features of the RB1100AHx4 is its pre-installed The Dude server package, which turns this router into a centralized monitoring hub. With The Dude, network admins can:

• Visually map out their entire network

• Monitor device health in real-time

• Set up alerts for latency, packet loss, and downtime

• Run automated diagnostics and SNMP queries

This feature is crucial for ISPs and large enterprise networks where proactive monitoring prevents disruptions and ensures SLA adherence.

MikroTik RB1100AHx4 Dude Edition Delivers Strong Processing Power with Multi-Core Architecture

The Annapurna Alpine AL21400 CPU, built on ARMv8 architecture, ensures that the RB1100AHx4 can handle intense traffic volumes. Whether managing thousands of NAT sessions, complex firewall rules, or dynamic routing protocols like BGP, OSPF, and RIP, this router processes them efficiently.

The 1GB DDR4 RAM provides sufficient headroom for complex configurations and intensive routing tasks. Combined with RouterOS Level 6, this platform offers near-unlimited software flexibility—perfect for core routing, inter-VLAN routing, and encrypted tunnels.

MikroTik RB1100AHx4 Dude Edition Features Built-In Storage Options for Logs and Monitoring

The MikroTik RB1100AHx4 is also equipped with internal microSD and M.2 slots, allowing additional storage for packet captures, log files, firmware backups, or Dude database storage. This makes long-term monitoring or historical network analysis easier—an essential need for managed service providers or compliance-heavy sectors.

With storage expansion, you can also run containerized services, traffic analysis scripts, or host small web-based tools directly on the router using RouterOS scripting.

MikroTik RB1100AHx4 Dude Edition Engineered for Efficient, Silent Operation

To maintain stability and extend the router’s life, the RB1100AHx4 uses passive cooling in combination with dual redundant fans that activate only when needed. This intelligent cooling ensures the device remains quiet during standard operations but quickly adjusts if temperatures rise.

This design is ideal for offices, sound-sensitive environments, or data cabinets without active airflow—ensuring performance without compromise.

MikroTik RB1100AHx4 Dude Edition A Versatile Choice for Complex Network Topologies

The RB1100AHx4 isn’t limited to one use case. Thanks to its power, port density, and storage options, it can operate as:

• An edge router for multi-WAN balancing

• A core firewall with DPI and VPN support

• A load balancer for large intranets

• A network probe for advanced visibility

• A router running BGP full tables for peering points

From Tier 2 ISP deployments to enterprise cloud gateway roles, the RB1100AHx4 adapts to your networking strategy.

MikroTik RB1100AHx4 Dude Edition Delivers ROI Through Reliability and Flexibility

Purchasing the RB1100AHx4 means investing in a long-term routing solution that scales with your business. It brings the full power of MikroTik’s RouterOS platform, offers rich routing and security features, and includes comprehensive monitoring in one appliance.

Its robust metal housing, intelligent fan cooling, high-speed memory, and rich set of ports make it future-ready for a world where uptime, automation, and security are non-negotiable.
