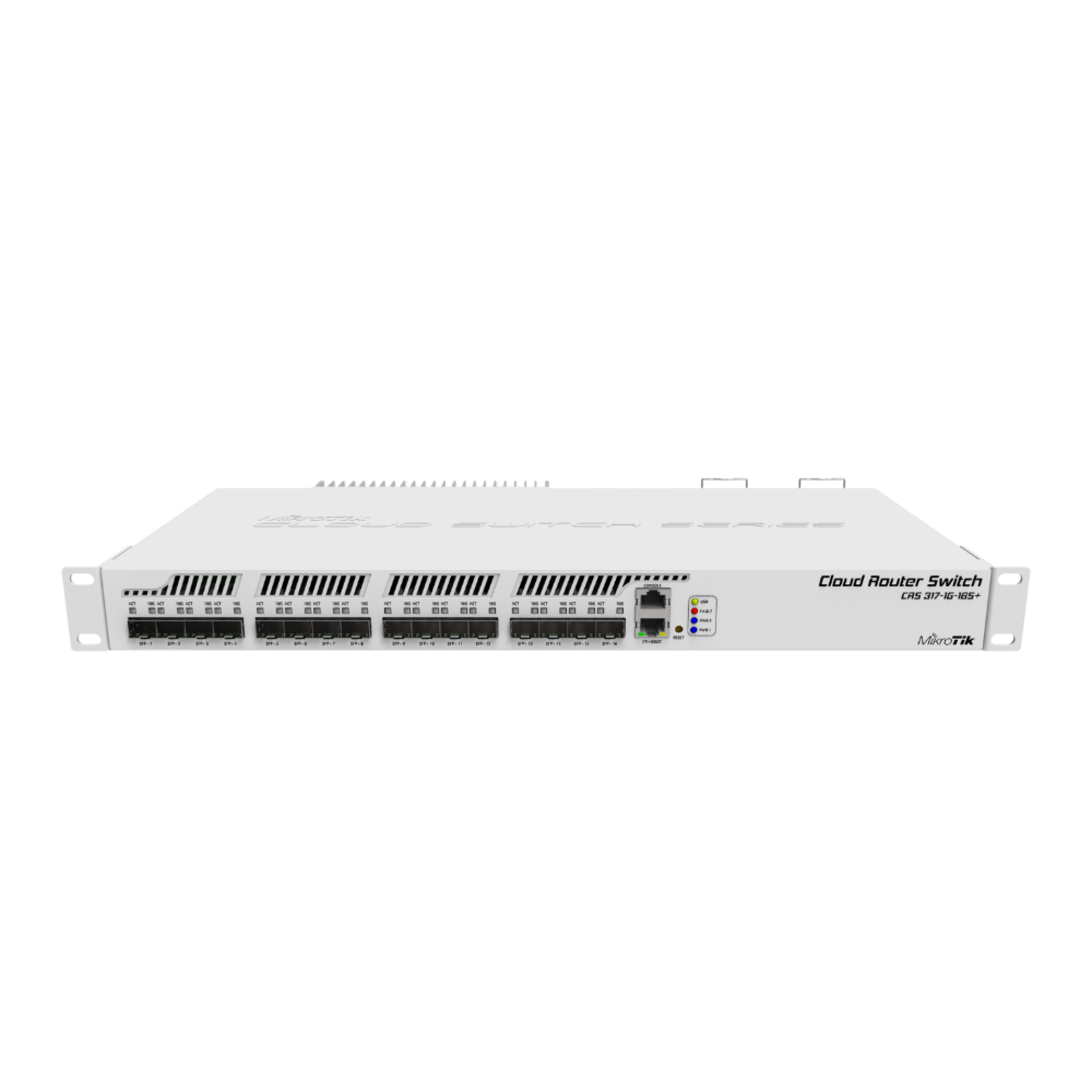

CRS317-1G-16S+RM Mikrotik Smart Switch

Specifications for CRS317-1G-16S+RM MikroTik 16-Port SFP+ Smart Switch – CRS317-1G-16S+RM

• 16 x SFP+ 10G ports

• 1 x Gigabit Ethernet port

• Dual-core 800 MHz CPU, 1GB RAM

• Dual Boot: RouterOS and SwitchOS

• Passive cooling with two redundant fans

• 1U Rackmount metal case

CRS317-1G-16S+RM Designed for Dense Fiber Infrastructure

The CRS317-1G-16S+RM MikroTik Smart Switch is engineered for network architects, ISPs, and enterprise backbones that require high-capacity fiber routing with reliability and manageability. This powerful switch features 16 high-speed SFP+ ports, each capable of handling 10 Gigabit throughput, making it ideal for data centers, FTTH aggregation, and high-speed enterprise networks.

This model is designed to be rack-mounted in standard 1U cabinets, saving space while providing maximum bandwidth capacity. Its sturdy build and professional appearance make it a perfect addition to server rooms and distribution cabinets.

CRS317-1G-16S+RM Built for High-Speed Fiber Routing

Each of the 16 SFP+ cages supports up to 10Gbps full-duplex communication, meaning you can move serious amounts of data across your fiber links with no bottlenecks. Whether you're handling campus-wide fiber, inter-building networks, or backbone links for large deployments, the CRS317-1G-16S+RM keeps latency low and throughput high.

The additional 1 Gigabit Ethernet port allows for an uplink to your monitoring system, management VLAN, or core router. This allows full access to the device without consuming one of your precious SFP+ ports.

CRS317-1G-16S+RM Smart Switching with Dual Operating Systems

The CRS317-1G-16S+RM includes MikroTik's dual boot system, allowing you to choose between RouterOS and SwitchOS depending on your use case. For simple, L2 switching, SwitchOS provides an intuitive GUI for VLANs, port isolation, mirroring, and forwarding.

On the other hand, booting into RouterOS unlocks Layer 3 capabilities, such as routing, firewall, PPPoE, DHCP, and more—ideal for more complex deployments or hybrid switch-router configurations. This duality gives network engineers the flexibility to adapt the device’s function to evolving infrastructure needs.

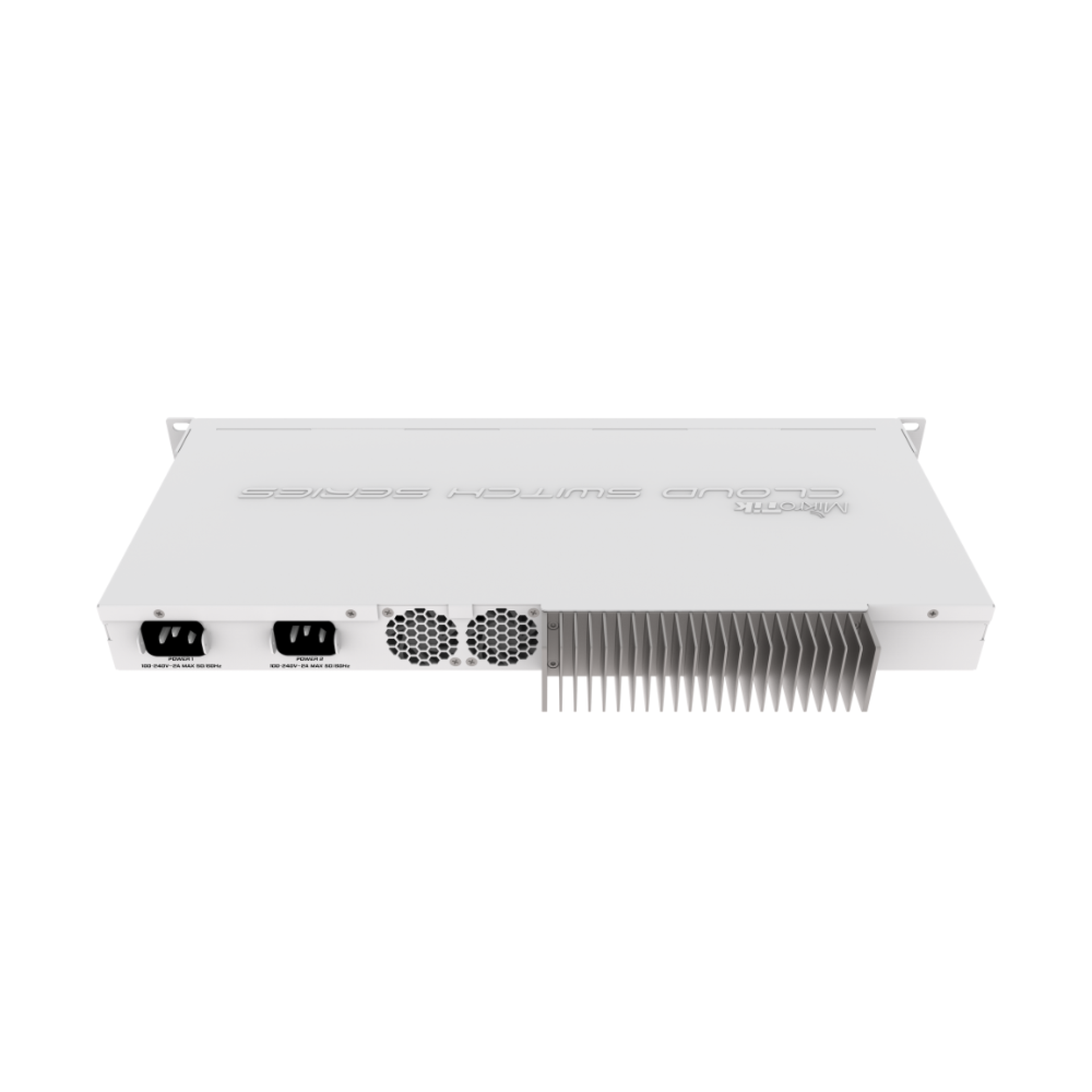

CRS317-1G-16S+RM Crafted with Power Efficiency and Silent Cooling

This switch uses a passively cooled chassis with dual redundant internal fans that remain silent under normal conditions. The case itself acts as a heatsink, ensuring your hardware stays cool without causing noise—ideal for deployments near workspaces or sound-sensitive environments.

This thermal design also contributes to long-term component reliability and reduces maintenance. You won’t need to worry about dust buildup damaging internal fans or overheating during high traffic bursts.

CRS317-1G-16S+RM Delivering Enterprise-Level Features with Simplified Management

The CRS317-1G-16S+RM supports all standard Layer 2 features, including 802.1Q VLAN, port trunking, link aggregation, port mirroring, loop protection, and IGMP snooping. When booted into RouterOS, you gain access to ACLs, QoS rules, DHCP services, routing protocols, and advanced monitoring tools like Netwatch and Torch.

All of this is presented within the familiar MikroTik Winbox interface, or through a browser via WebFig or SwitchOS UI, enabling both seasoned and new network admins to handle configurations confidently.

CRS317-1G-16S+RM Perfect for ISP Cores, Enterprise Networks, and Aggregation Points

Whether you’re building an Internet service provider’s core switch fabric, an enterprise LAN aggregation point, or interconnecting servers in a private cloud, the CRS317-1G-16S+RM offers the performance and scalability needed. Its efficient design ensures minimal energy use while handling massive bandwidth and network segment control.

You can also use this switch in campus scenarios, where it can serve as the main distribution point for multi-floor or multi-building installations. Its capacity to interconnect numerous 10G links makes it perfect for tiered architecture designs.

CRS317-1G-16S+RM Scalable and Adaptable to Growing Demands

Network demand is only increasing, and the CRS317-1G-16S+RM ensures that you stay ahead of bandwidth curves. As more businesses shift to fiber-first infrastructure, this smart switch will keep your network fluid, stable, and easy to manage across VLANs, subnets, and roles.

Its 1GB of RAM and powerful dual-core processor handle software-based packet forwarding, while the SFP+ hardware offloads allow seamless speed even with large packet bursts, jumbo frames, or high concurrent connections.
