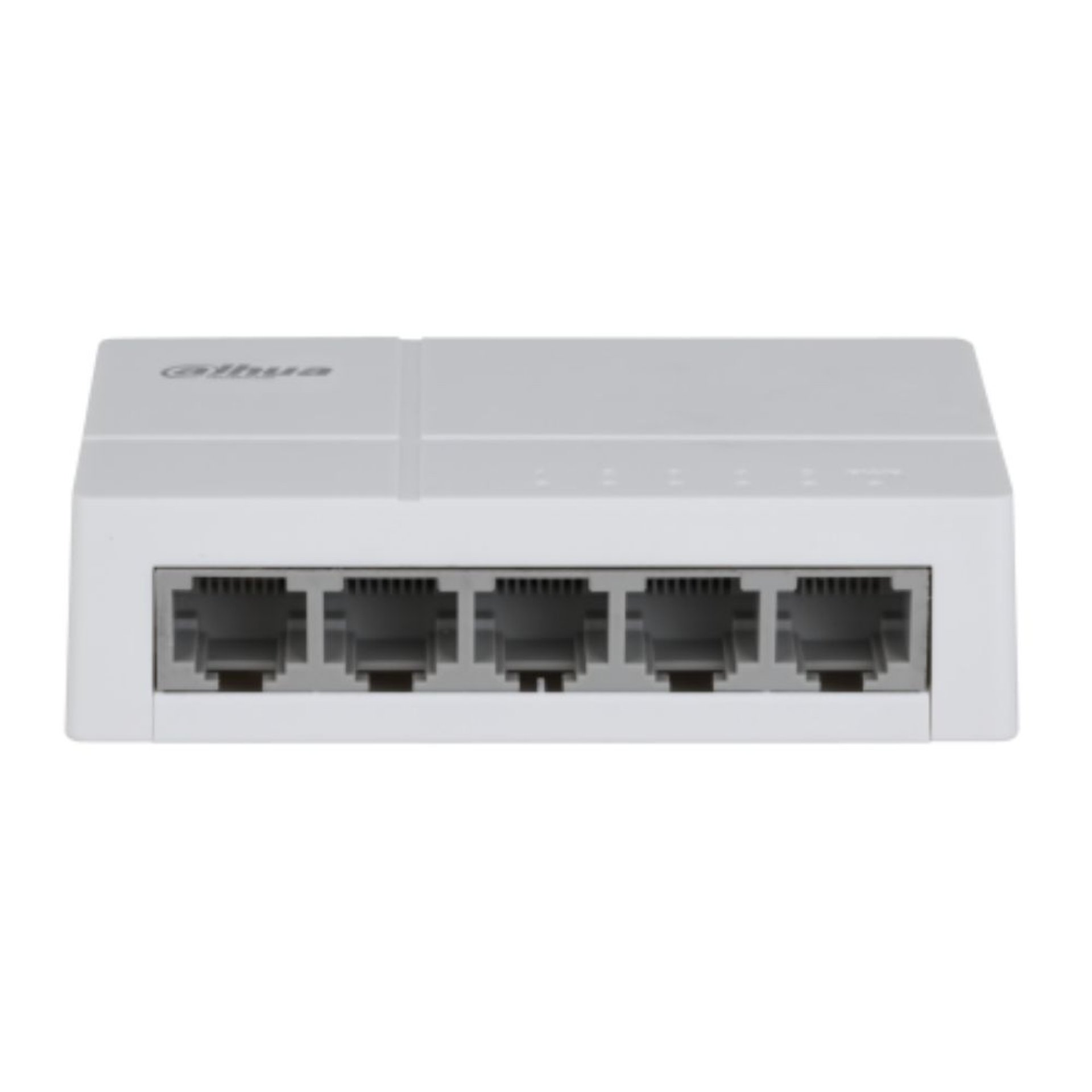

Dahua SF1005L5 5-Port Unmanaged Ethernet Switch Overview
The Dahua SF1005L5 is a compact 5-port unmanaged Ethernet switch designed for small office and home networks. It supports 10/100 Mbps adaptive RJ45 ports, offers plug-and-play installation, and ensures stable data transfer. With low power consumption and a lightweight design, it’s ideal for connecting multiple devices in a simple, cost-effective way.
Dahua SF1005L5 5-Port Unmanaged Ethernet Switch Specifications
| Component | Details |
|---|---|
| Model Number | DH-SF1005L5 |
| Ports | 5 × 10/100 Mbps adaptive RJ45 ports (Auto MDI/MDIX) |
| Switching Capacity | 1 Gbps |
| Packet Forwarding | 0.74 Mpps |
| Packet Buffer | 768 Kb |
| MAC Address Table | 1K–2K entries |
| Jumbo Frame Support | 2 KB |
| Transmission Method | Store-and-forward |
| Standards Compliance | IEEE 802.3, 802.3u, 802.3x Flow Control |
| Power Supply | External 5 VDC / 1 A adapter (included) |
| Power Consumption | Idle: 0.1 W; Max Load: 2.3 W |
| Dimensions | 86.4 × 52.0 × 23.0 mm |
| Weight | ~0.12–0.16 kg |
| Operating Temp | 0 °C to +45 °C |
| Storage Temp | –40 °C to +70 °C |
| Humidity | 5%–95% RH |
| Protection | Static discharge: 8 kV (air), 4 kV (contact); Lightning protection: 2 kV |
Dahua SF1005L5 5-Port Unmanaged Ethernet Switch Price in Kenya
| Product Description | Price Range (KES) |
|---|---|
| Dahua SF1005L5 5-Port Unmanaged Ethernet Switch | KSh 1,300 – 1,800 |
Dahua SF1005L5 5-Port Unmanaged Ethernet Switch Design and Build
-
Compact desktop design, easy to carry and install
-
Plastic casing with lightweight build
-
Energy-efficient technology for reduced power consumption
-
Plug-and-play setup, no configuration required
Dahua SF1005L5 5-Port Unmanaged Ethernet Switch Performance
-
Fast Ethernet speeds (10/100 Mbps) for small networks
-
Stable and reliable connections for multiple devices
-
Low latency forwarding with store-and-forward switching
-
Energy-efficient operation with minimal power draw
Dahua SF1005L5 5-Port Unmanaged Ethernet Switch Ideal User Cases
-
Homes: Connecting PCs, smart TVs, and gaming consoles
-
Small offices: Linking printers, workstations, and VoIP phones
-
Shops: Simple POS and CCTV camera networking
-
Educational setups: Small labs or classrooms needing multiple connections
Dahua SF1005L5 5-Port Unmanaged Ethernet Switch Pros and Cons
| Pros | Cons |
|---|---|
| Affordable and compact | Limited to 10/100 Mbps (no Gigabit support) |
| Plug-and-play installation | Not suitable for high-bandwidth enterprise setups |
| Energy-efficient design | Plastic casing (less durable than metal) |
| Stable and reliable connections | – |
Dahua SF1005L5 5-Port Unmanaged Ethernet Switch FAQs
1. Does it support Gigabit speeds? No, it supports Fast Ethernet (10/100 Mbps).
2. Is it plug-and-play? Yes, no configuration is required.
3. Can it be used for CCTV systems? Yes, it can connect IP cameras in small setups.
4. What is the power source? It uses a 5 VDC / 1 A external adapter (included).
5. Is it suitable for large networks? No, it’s best for small home or office networks.
