Yeastar EX30 1 Onboard E1 T1 PRI Port Key Features
- 1 onboard E1/T1/J1 port
- Supports PRI connectivity
- Designed as a PBX expansion board
- Compatible with Yeastar P560 and P570
- Supports E1/T1/J1 digital telephony
- Suitable for connecting E1/T1/PRI lines
- Integrates with Yeastar IP PBX systems
- Supports digital voice communication
- Suitable for business telephone systems
- Compact expansion-board design
Yeastar EX30 1 Onboard E1 T1 PRI Port Introduction

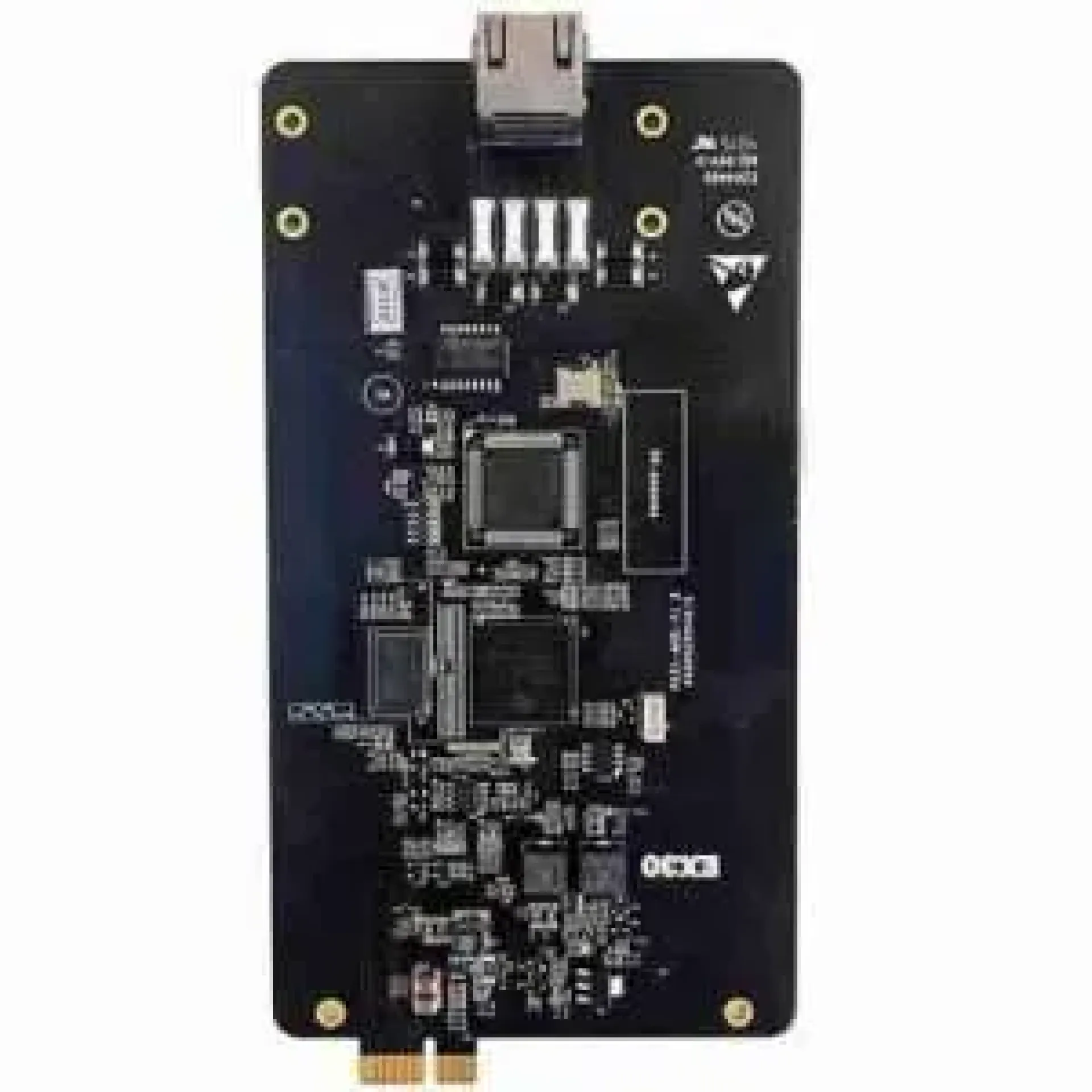

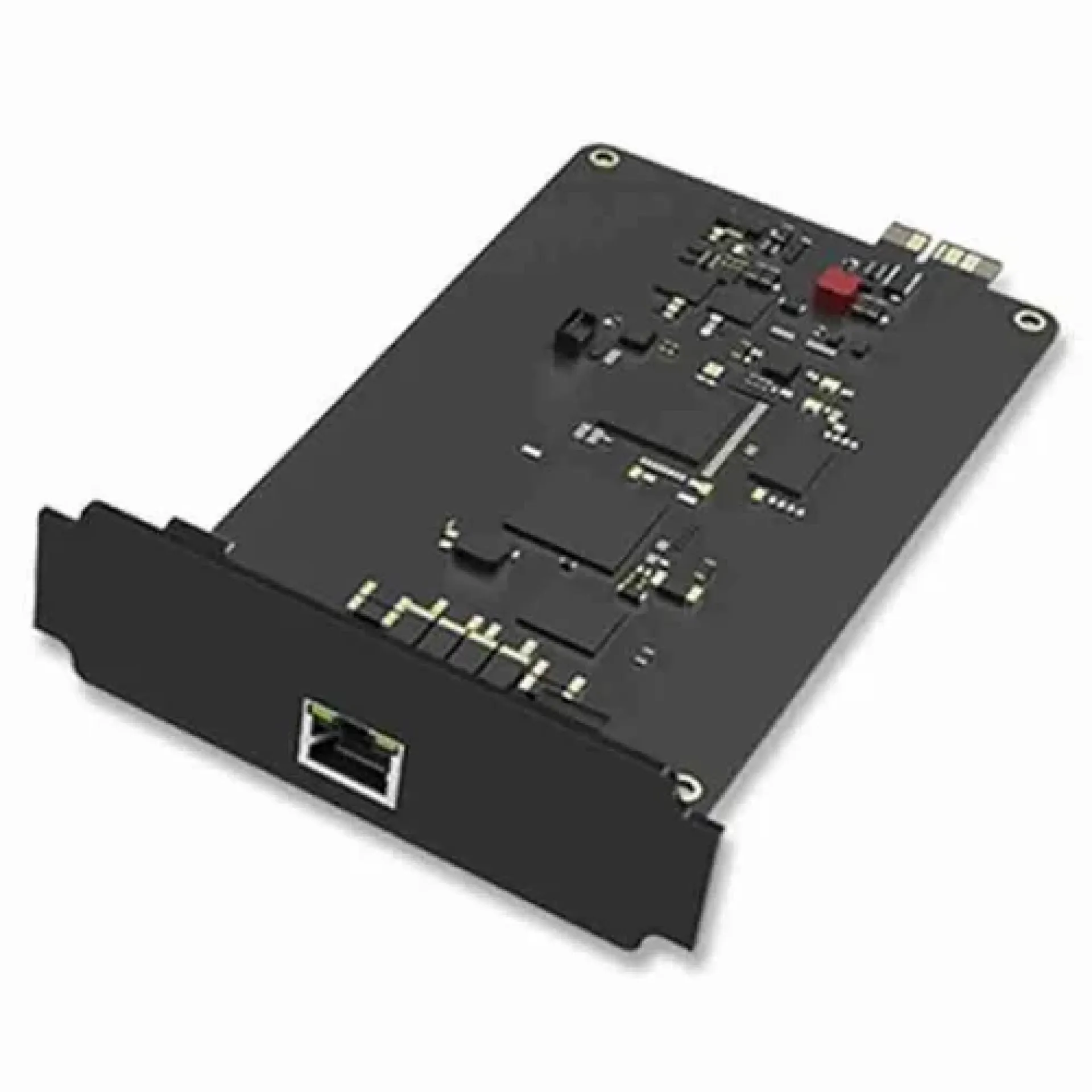

The Yeastar EX30 is an expansion board designed to add an E1/T1/J1 digital telephony interface to compatible Yeastar IP PBX systems. It provides one onboard E1/T1/J1 port and is designed for use with Yeastar P560 and P570 systems.
E1/T1/PRI connections are commonly used by businesses and telecommunications providers to connect digital telephone lines to PBX systems. The EX30 allows compatible Yeastar systems to integrate these digital trunks with their IP-based communication infrastructure.
Yeastar EX30 1 Onboard E1 T1 PRI Port Price in Kenya
| Product | Price |
|---|---|
| Yeastar EX30 1 Onboard E1 T1 PRI Port | KSh 60,000 |
Yeastar EX30 1 Onboard E1 T1 PRI Port Key Specifications
| Feature | Details |
|---|---|
| Product Type | IP PBX Expansion Board |
| Model | EX30 |
| E1/T1/J1 Ports | 1 |
| Interface | E1/T1/J1 |
| Telephony Standard | PRI |
| Compatibility | Yeastar P560 and P570 |
| Connectivity | Digital Telephony |
| Installation | Internal Expansion Board |
| Application | E1/T1/PRI Trunk Connectivity |
| Use | Business IP PBX Systems |
Yeastar EX30 1 Onboard E1 T1 PRI Port Performance
The EX30 expands the digital telephony capabilities of compatible Yeastar PBX systems by providing a dedicated E1/T1/J1 interface.
- One E1/T1/J1 port
- Supports digital PRI trunk connectivity
- Allows compatible PBXs to connect to E1/T1 service providers
- Designed for reliable business voice communication
- Integrates digital telephony with IP-based PBX infrastructure
- Suitable for organizations using existing E1/T1/PRI telephone services
Yeastar EX30 1 Onboard E1 T1 PRI Port Compatibility
The EX30 is designed for compatible Yeastar P-Series systems.
- Compatible with Yeastar P560
- Compatible with Yeastar P570
- P560 supports one expansion board
- P570 supports up to two expansion boards
- Can be installed alongside other supported expansion hardware
Yeastar EX30 1 Onboard E1 T1 PRI Port Connectivity
The EX30 provides a digital interface for connecting a compatible PBX to an E1/T1/J1 service.
- E1 connectivity
- T1 connectivity
- J1 connectivity
- PRI support
- Digital trunk connection
- Suitable for connecting to telecommunications provider equipment
- Supports integration of traditional digital telephone services with IP PBX systems
Yeastar EX30 1 Onboard E1 T1 PRI Port Business Applications
The EX30 is best suited for:
- Business telephone systems
- Corporate offices
- Call centers
- IP PBX installations
- Organizations using E1/PRI telephone lines
- Businesses migrating from traditional PBX to IP PBX
- Telecommunications installations
- Offices requiring digital trunk connectivity
- Yeastar P560 deployments
- Yeastar P570 deployments
Yeastar EX30 1 Onboard E1 T1 PRI Port Pros and Cons
| Pros | Cons |
|---|---|
| Provides one E1/T1/J1 port | Compatible only with supported Yeastar systems |
| Supports PRI connectivity | Requires an E1/T1/PRI service |
| Expands PBX functionality | Internal installation required |
| Suitable for business telephony | Not a standalone IP PBX |
| Supports digital trunk integration | Limited to one onboard port |
| Works with P560 and P570 | — |
Yeastar EX30 1 Onboard E1 T1 PRI Port FAQs
What is the Yeastar EX30?
The EX30 is an expansion board that adds an E1/T1/J1 port to compatible Yeastar IP PBX systems.
How many E1/T1 ports does it have?
It has one onboard E1/T1/J1 port.
Which Yeastar PBX systems support the EX30?
The EX30 is supported by the Yeastar P560 and P570.
What is the EX30 used for?
It is used to connect compatible Yeastar PBX systems to E1/T1/J1 digital telephone lines, including PRI services.
Is the EX30 a standalone PBX?
No. It is an expansion board that adds digital telephony connectivity to a compatible Yeastar PBX.
Can it be used for PRI?
Yes. E1/T1 interfaces are used for PRI connectivity, with E1 providing 30 B-channels plus one D-channel and T1 providing 23 B-channels plus one D-channel.
How much does the Yeastar EX30 cost in Kenya?
The price is KSh 60,000.
Yeastar EX30 1 Onboard E1 T1 PRI Port Conclusion
The Yeastar EX30 is a useful expansion board for businesses that need to connect compatible Yeastar IP PBX systems to E1/T1/PRI digital telephone services. With one onboard E1/T1/J1 port and compatibility with the P560 and P570, it provides a practical way to expand digital trunk connectivity.
At KSh 60,000, the Yeastar EX30 is suitable for businesses, offices, and professional telecommunications installations requiring E1/T1/PRI connectivity.
