Ubiquiti NanoStation M5 (NSM5)

Ubiquiti NanoStation M5 (NSM5) Overview

The Ubiquiti NanoStation M5 (NSM5) is a compact, high-performance outdoor Customer Premises Equipment designed for 5GHz wireless networking. This powerful device features a 16dBi dual-polarity antenna and 2x2 MIMO architecture, making it an excellent choice for point-to-point and point-to-multipoint installations.

Ubiquiti NanoStation M5 (NSM5) High Throughput and Long Range

With real-world TCP/IP throughput exceeding 150 Mbps and a range of up to 15 kilometers in line-of-sight conditions, the NanoStation M5 delivers impressive wireless performance. It is ideal for linking remote buildings, extending broadband coverage, and serving as a high-speed client device in larger networks.

Ubiquiti NanoStation M5 (NSM5) 16dBi Dual-Polarity Antenna

The integrated 16dBi antenna provides a focused beam with approximately 43 degrees of horizontal and 41 degrees of vertical coverage. This design enhances signal strength, improves interference rejection, and ensures stable connectivity even in noisy environments.

Ubiquiti NanoStation M5 (NSM5) airMAX TDMA Protocol

Thanks to airMAX TDMA technology, the NanoStation M5 schedules transmissions in coordinated time slots. This reduces hidden-node collisions, lowers latency, and improves throughput consistency, especially in point-to-multipoint deployments.

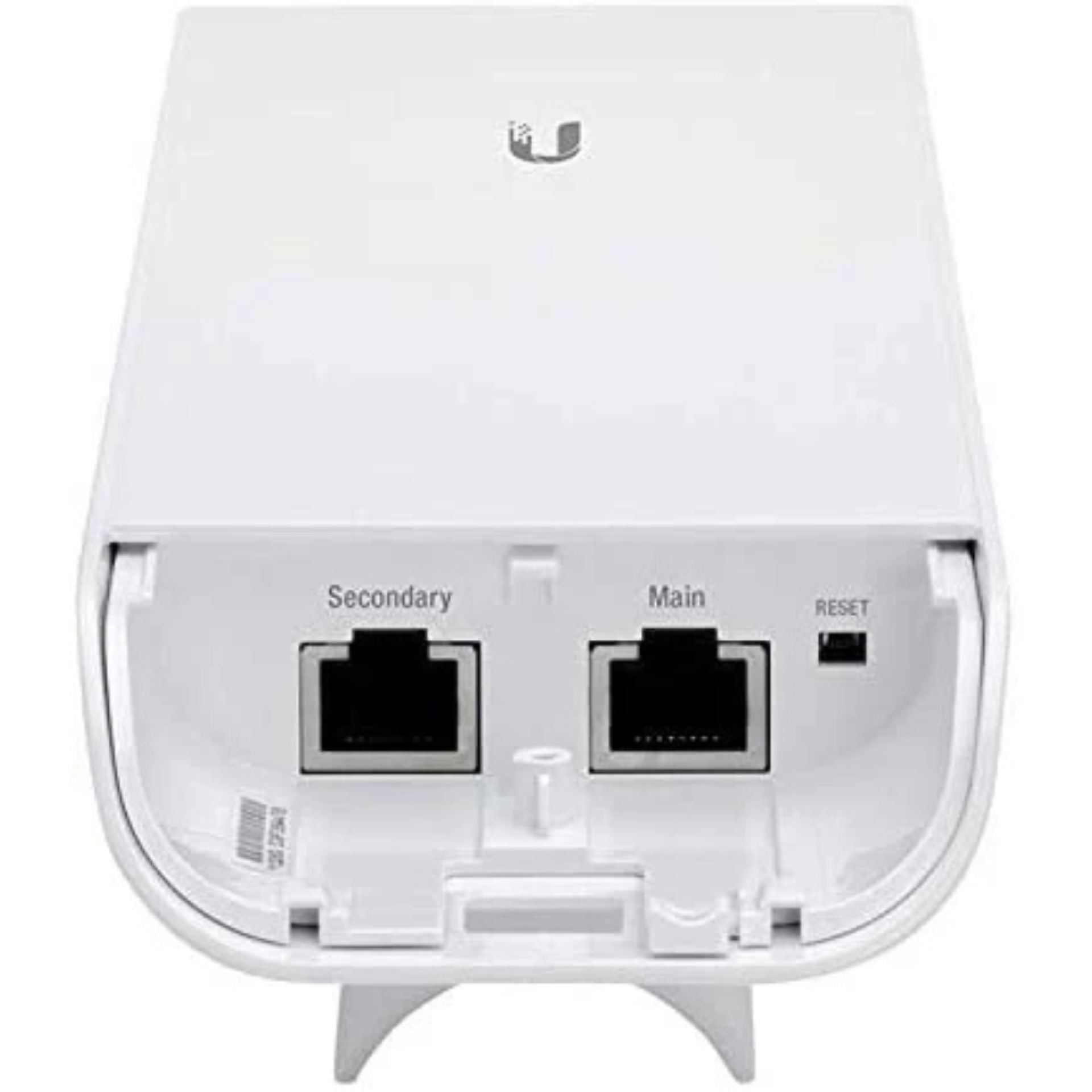

Ubiquiti NanoStation M5 (NSM5) Dual Ethernet and PoE

The NanoStation M5 includes two 10/100 Ethernet ports, with one offering PoE passthrough for powering additional devices like surveillance cameras. The unit operates efficiently on 24V passive PoE, consuming approximately 8 watts of power.

Ubiquiti NanoStation M5 (NSM5) Rugged Outdoor Construction

Engineered for demanding environments, the NanoStation M5 features a UV-stabilized plastic enclosure rated for temperatures between –30°C and 75°C. It withstands exposure to sun, rain, wind, and other challenging weather conditions, ensuring reliable performance over time.

Ubiquiti NanoStation M5 (NSM5) Community Feedback

Users appreciate the NanoStation M5 for its excellent balance of price, performance, and ease of installation. Many installers report full-bandwidth speeds over short to medium distances, with reliable links up to several kilometers when properly aligned.

Ubiquiti NanoStation M5 (NSM5) Ideal Applications

This device is perfect for:

• Creating point-to-point wireless bridges between buildings

• Extending WiFi service to outbuildings or remote areas

• Acting as a client CPE in point-to-multipoint setups

• Backhauling video surveillance networks

• Providing connectivity for temporary or event networks

Ubiquiti NanoStation M5 (NSM5) Technical Specifications

Key specifications include:

• Frequency Range: 5GHz (5170–5875 MHz)

• Antenna Gain: 16dBi

• MIMO: 2x2

• Maximum Throughput: 150+ Mbps (up to 300 Mbps at shorter distances)

• Ethernet Ports: 2x 10/100 Mbps, one with PoE passthrough

• Power Input: 24V passive PoE

• Power Consumption: Approximately 8W

• Beamwidth: ~43° horizontal, ~41° vertical

• Operating Temperature: –30°C to 75°C

• Dimensions: 294 x 31 x 80 mm

• Weight: 0.4 kg

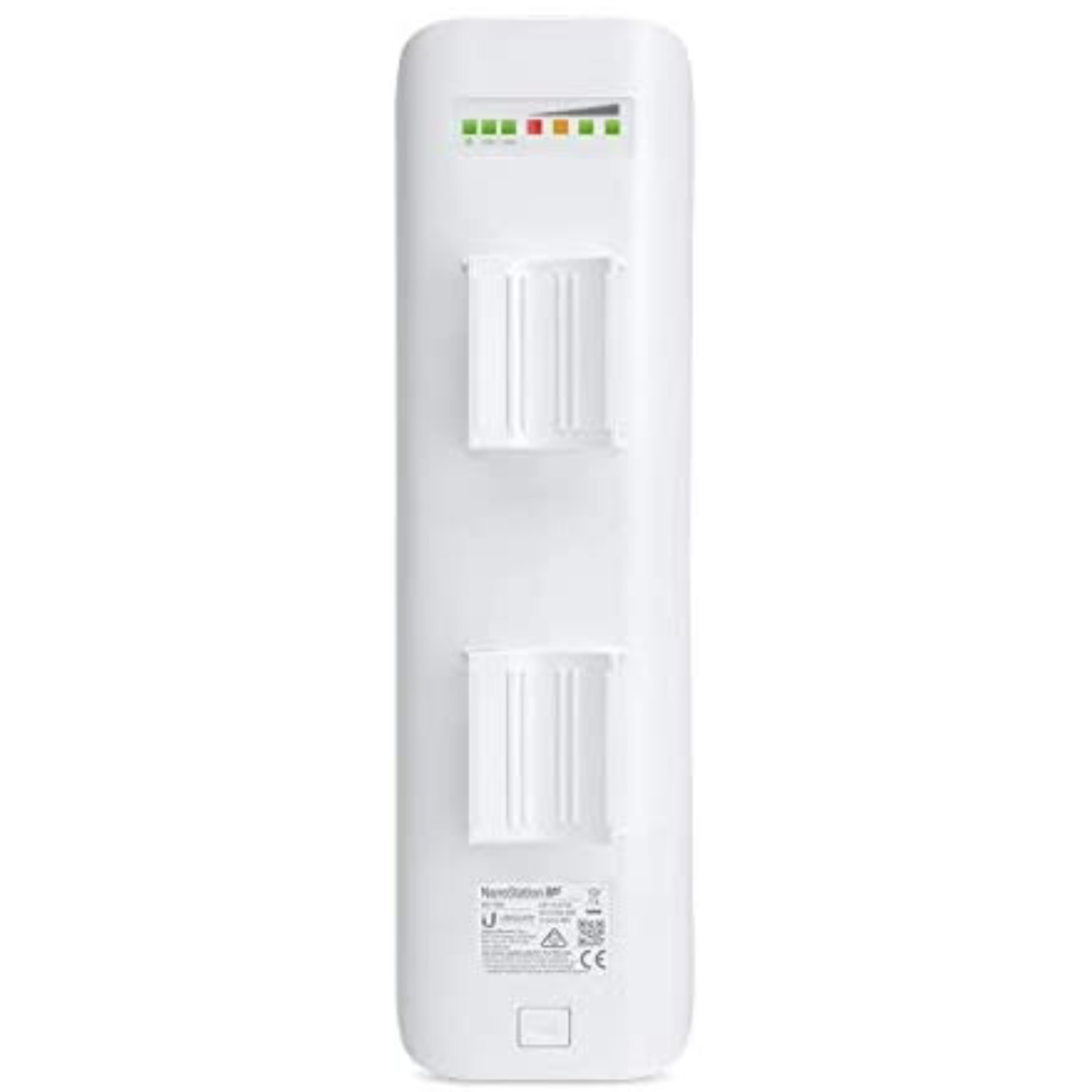

• Mounting: Pole mounting hardware included

These specifications highlight the balance of power, range, and efficiency that makes the NanoStation M5 a popular choice worldwide.

Ubiquiti NanoStation M5 (NSM5) Final Thoughts

The Ubiquiti NanoStation M5 (NSM5) combines high-gain directional coverage, robust MIMO throughput, and a weather-resistant design in a compact, affordable package. Whether you’re linking distant sites or delivering last-mile connectivity in rural areas, the NanoStation M5 offers a professional, reliable solution that’s easy to deploy and manage.
