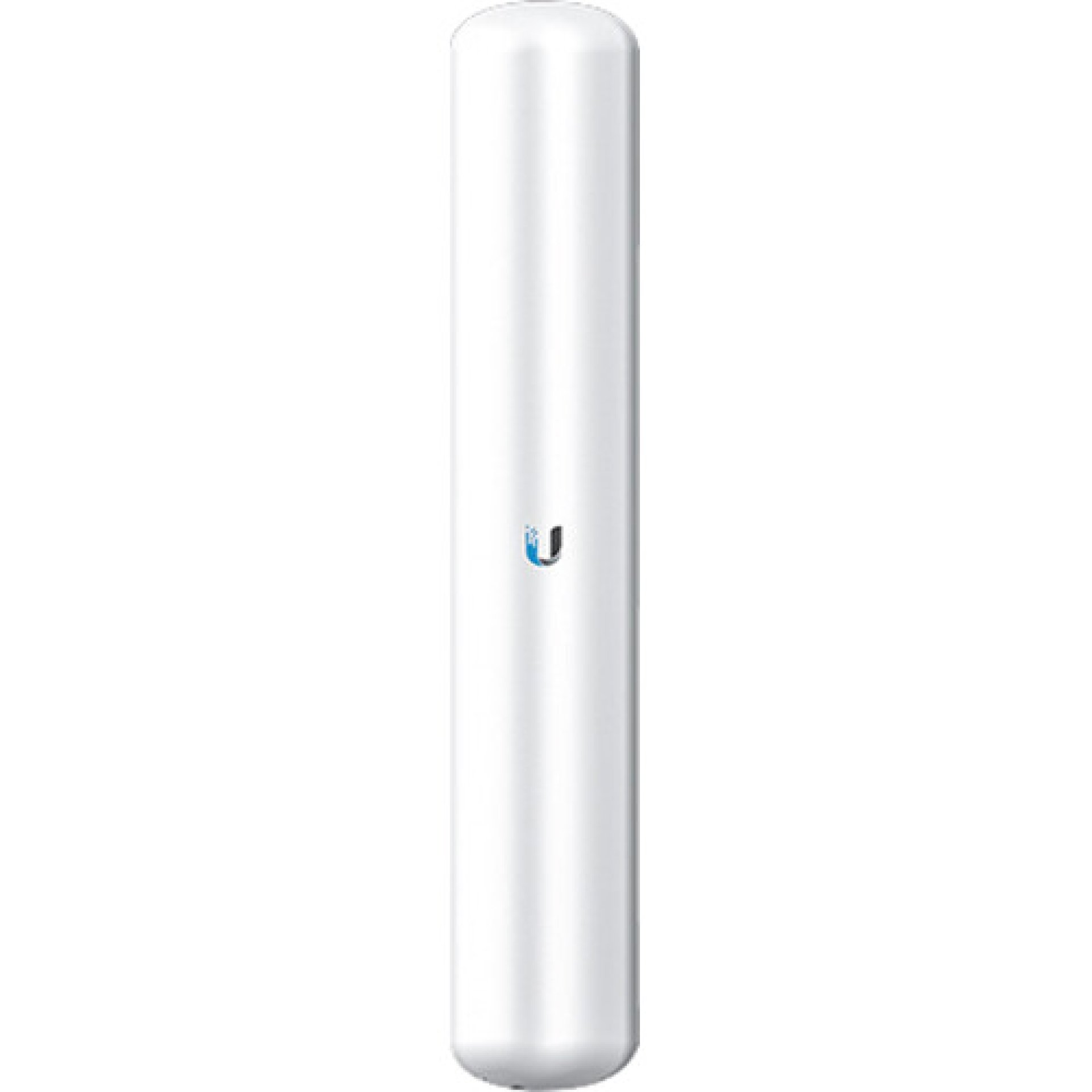

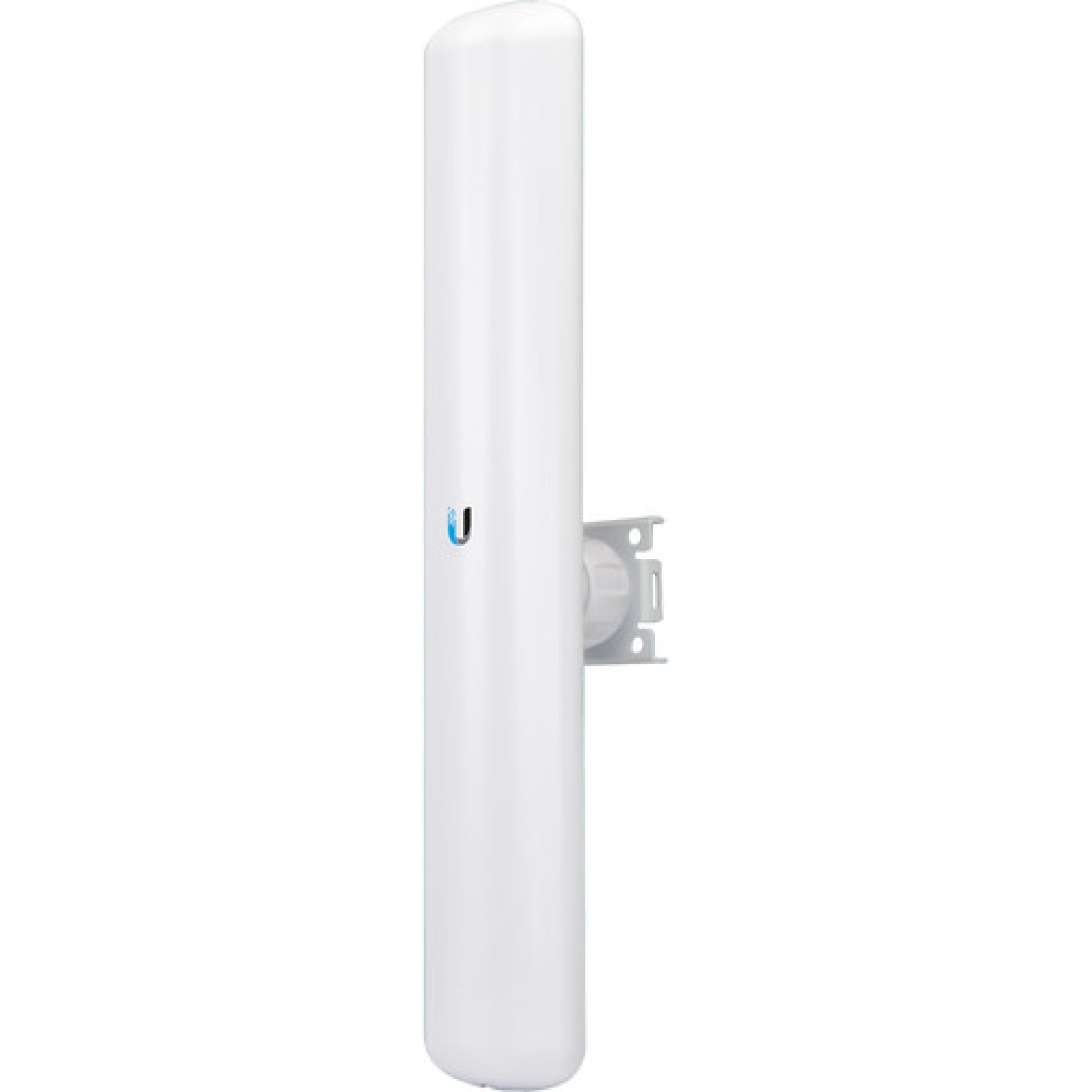

Ubiquiti LiteAP ac 5 GHz Sector AP LAP‑120‑US | 16 dBi MIMO

Ubiquiti LiteAP ac LAP-120-US Overview

The Ubiquiti LiteAP ac 5GHz airMAX Sector AP 120 Degree 16dBi 2x2 MIMO, model LAP-120-US, is an innovative outdoor wireless access point designed for reliable long-distance broadband coverage. It delivers powerful performance and cost-effective deployment, making it an ideal choice for wireless internet service providers, campus networks, and rural connectivity projects.

Ubiquiti LiteAP ac LAP-120-US High-Gain Sector Antenna

The Ubiquiti LiteAP ac LAP-120-US comes equipped with a high-gain 16dBi antenna, providing exceptional signal strength over long distances. Its 120-degree beamwidth ensures wide coverage, reducing the number of access points needed to blanket a large area. This helps you save time and resources while maintaining a strong, consistent connection.

Ubiquiti LiteAP ac LAP-120-US 2x2 MIMO Technology

With advanced 2x2 MIMO technology, the Ubiquiti LiteAP ac LAP-120-US can transmit and receive data streams simultaneously, improving throughput and link reliability. This dual-polarized design boosts performance for bandwidth-intensive tasks such as video streaming, voice-over-IP calls, and large file transfers.

Ubiquiti LiteAP ac LAP-120-US airMAX ac Protocol

The LiteAP ac LAP-120-US uses Ubiquiti’s airMAX ac protocol to deliver low latency and high efficiency. By leveraging TDMA (Time Division Multiple Access), the access point schedules transmissions to avoid collisions and maximize airtime utilization. The result is consistent, high-speed performance even when multiple clients are connected.

Ubiquiti LiteAP ac LAP-120-US Compact and Lightweight Design

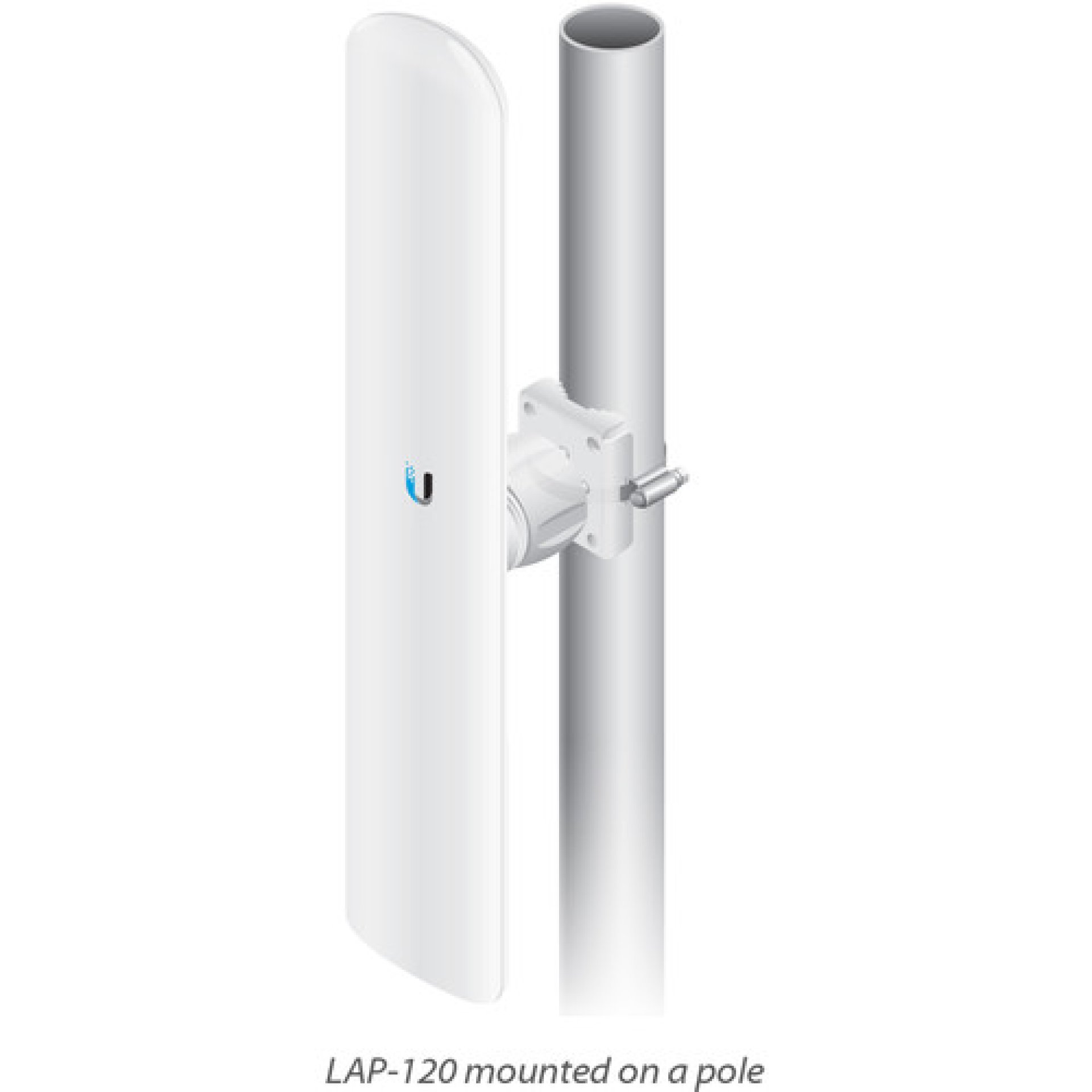

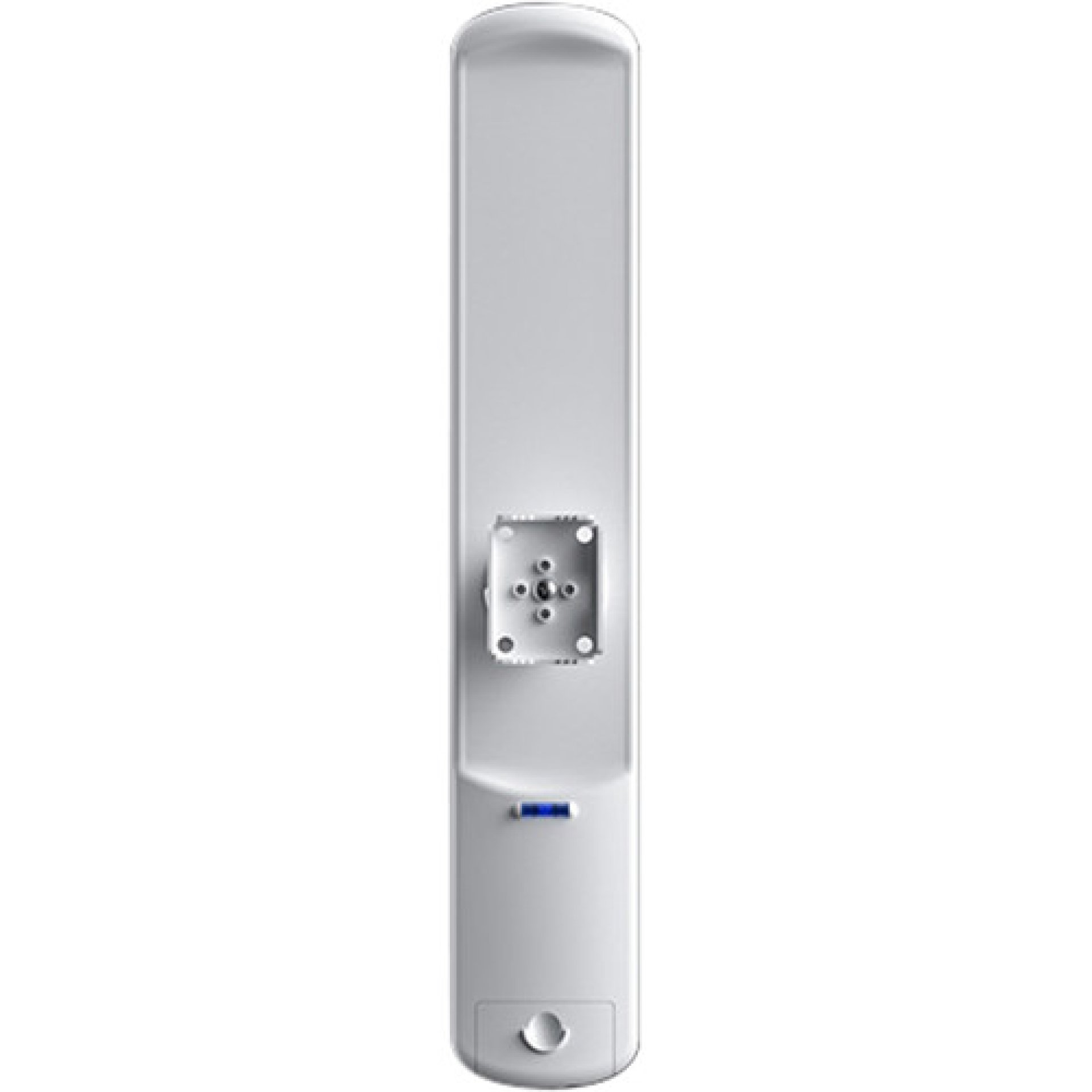

Weighing less than 500 grams, the Ubiquiti LiteAP ac LAP-120-US is engineered for easy installation and discreet mounting. Its sleek form factor fits neatly onto poles and masts, while the included adjustable mount and bubble level simplify alignment. This streamlined design makes it perfect for fast deployment in any outdoor environment.

Ubiquiti LiteAP ac LAP-120-US Rugged Weather Resistance

Outdoor wireless equipment must withstand extreme conditions, and the Ubiquiti LiteAP ac LAP-120-US is built to endure. It operates reliably in temperatures ranging from -40 to 70 degrees Celsius and resists wind speeds up to 200 kilometers per hour. The enclosure is fully weather-sealed to protect internal components from rain, dust, and harsh elements.

Ubiquiti LiteAP ac LAP-120-US Easy Management with airOS

Managing the Ubiquiti LiteAP ac LAP-120-US is simple, thanks to Ubiquiti’s airOS management platform. The intuitive interface allows you to configure wireless settings, monitor performance, and update firmware with minimal effort. For larger deployments, you can also manage multiple devices through centralized tools to streamline operations.

Ubiquiti LiteAP ac LAP-120-US Ideal Use Cases

The Ubiquiti LiteAP ac LAP-120-US is perfect for:

• Wireless Internet Service Providers delivering broadband to rural or suburban areas.

• Enterprises extending secure WiFi across large campuses.

• Municipalities creating public wireless zones in parks and urban spaces.

• Security professionals supporting IP camera backhaul and monitoring systems.

This versatility makes the LiteAP ac LAP-120-US a reliable solution for almost any outdoor wireless network.

Ubiquiti LiteAP ac LAP-120-US Technical Specifications

Key technical highlights include:

• Frequency: 5 GHz

• Gain: 16 dBi

• Beamwidth: 120° (azimuth)

• Polarization: Dual Linear

• MIMO: 2x2

• Gigabit Ethernet port

• Power: 24V passive PoE

• Weight: 420 grams

• Operating Temperature: -40 to 70 °C

These specifications confirm that the LiteAP ac LAP-120-US combines high performance with exceptional durability.

Ubiquiti LiteAP ac LAP-120-US Final Thoughts

The Ubiquiti LiteAP ac LAP-120-US delivers professional-grade wireless performance in a compact, affordable package. Whether you are expanding a wireless broadband network, connecting buildings, or deploying long-range WiFi, this sector access point offers outstanding value and reliability. Equip your network with the LiteAP ac LAP-120-US to experience seamless connectivity and robust coverage.
