Panasonic KX-NS5110X VoIP DSP Card-KX-NS5110X

Panasonic KX-NS5110X VoIP DSP Card Key Features

• Panasonic KX-NS5110X DSP-S card

• Up to 63 concurrent VoIP channels

• Supports G.711, G.722 and G.729A codecs

• Supports T.38 fax over IP

• Increases DISA capacity to 30 channels

• Includes licenses for 4 IP proprietary phones

• Supports VoIP calls and conferencing

• Supports unified messaging, voicemail and auto-attendant

• Designed for compatible Panasonic NS-series PBX systems

Panasonic KX-NS5110X VoIP DSP Card Overview

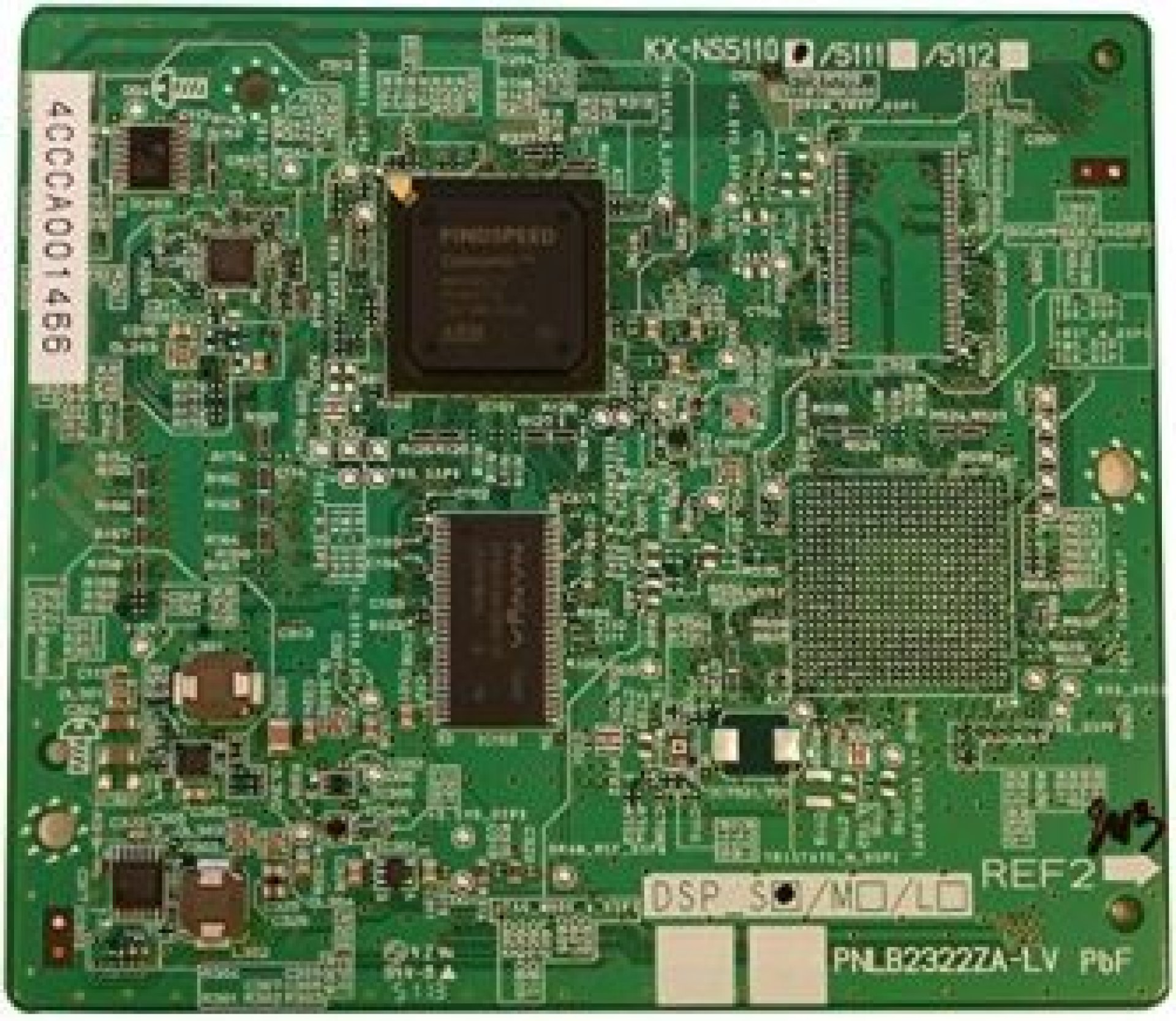

The Panasonic KX-NS5110X VoIP DSP Card is a digital signal processor expansion card designed to add VoIP processing resources to compatible Panasonic PBX systems. It supports up to 63 concurrent VoIP channels, making it suitable for businesses that need to expand their IP telephony capabilities.

The card supports G.711, G.722 and G.729A codecs and also provides T.38 fax over IP support. It can be used for VoIP calls, conferencing, unified messaging, voicemail, auto-attendant and DISA functions.

The KX-NS5110X is designed for compatible Panasonic KX-NS500 and KX-NS700 systems, with the exact supported configuration depending on the PBX model and firmware.

Price in Kenya: KSh 23,000.

Panasonic KX-NS5110X VoIP DSP Card Price

Panasonic KX-NS5110X VoIP DSP Card Specifications

Panasonic KX-NS5110X VoIP DSP Card Performance Features

• 63 VoIP channels provide substantial DSP capacity for handling multiple simultaneous IP voice connections in a business PBX environment.

• Multiple codec support including G.711, G.722 and G.729A provides flexibility for different IP telephony and voice-quality requirements.

• T.38 fax support enables fax transmission over compatible IP networks.

• VoIP and conferencing resources allow the card to provide DSP processing for business voice communication and conference functions.

Panasonic KX-NS5110X VoIP DSP Card Design & Build Features

• Dedicated DSP expansion-card design allows the card to be installed directly into a compatible Panasonic PBX system's DSP slot.

• Compact internal expansion format allows organizations to increase VoIP capabilities without replacing the entire PBX system.

• Panasonic NS-series integration makes the card suitable for compatible Panasonic business communication platforms.

• Scalable DSP architecture allows organizations to select appropriate DSP capacity according to their telephony requirements.

Panasonic KX-NS5110X VoIP DSP Card Business & Usability Features

• Four activated IP proprietary phone licenses provide additional IP phone resources with the specified card configuration.

• Unified messaging support enables the DSP resources to support functions such as voicemail and auto-attendant.

• DISA capacity expansion increases DISA capability to up to 30 channels, supporting more automated telephone access scenarios.

• Business communication expansion makes the card useful for organizations expanding from traditional telephony toward IP-based communication services.

Panasonic KX-NS5110X VoIP DSP Card Applications

• Business PBX Systems

• VoIP Telephony

• SIP-Based Communication

• Corporate Telephone Systems

• Conference Calling

• Unified Messaging

• Voicemail Systems

• Auto-Attendant

• IP Phone Expansion

• Fax Over IP

Panasonic KX-NS5110X VoIP DSP Card Pros and Cons

Panasonic KX-NS5110X VoIP DSP Card FAQs

What is the Panasonic KX-NS5110X used for?

It is a DSP expansion card used to add VoIP processing resources to compatible Panasonic PBX systems.

How many VoIP channels does the KX-NS5110X support?

The DSP-S card provides up to 63 VoIP channels.

Which codecs does the KX-NS5110X support?

It supports G.711, G.722 and G.729A codecs.

Does the KX-NS5110X support fax over IP?

Yes. It supports the T.38 fax transmission protocol.

Which Panasonic systems are compatible with the KX-NS5110X?

The card is listed for compatible Panasonic KX-NS500 and KX-NS700 telephone systems.

What is the Panasonic KX-NS5110X price in Kenya?

The listed price is KSh 23,000.

Panasonic KX-NS5110X VoIP DSP Card Conclusion

The Panasonic KX-NS5110X VoIP DSP Card is a business telephony expansion solution offering up to 63 VoIP channels, multiple voice codecs, T.38 fax support, conferencing, unified messaging and expanded DISA capacity. It is suitable for compatible Panasonic NS-series PBX environments requiring additional VoIP resources. Price in Kenya: KSh 23,000.
