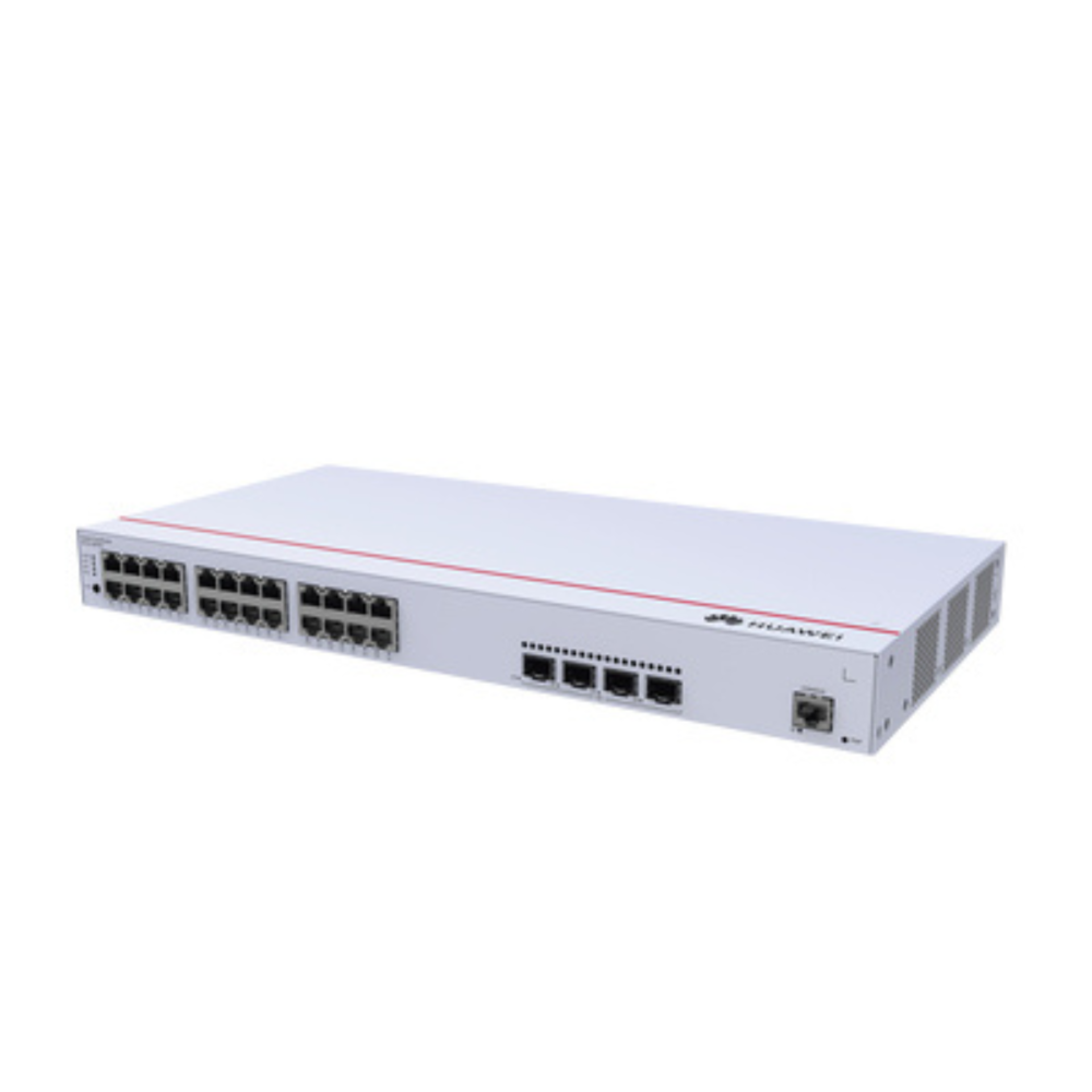

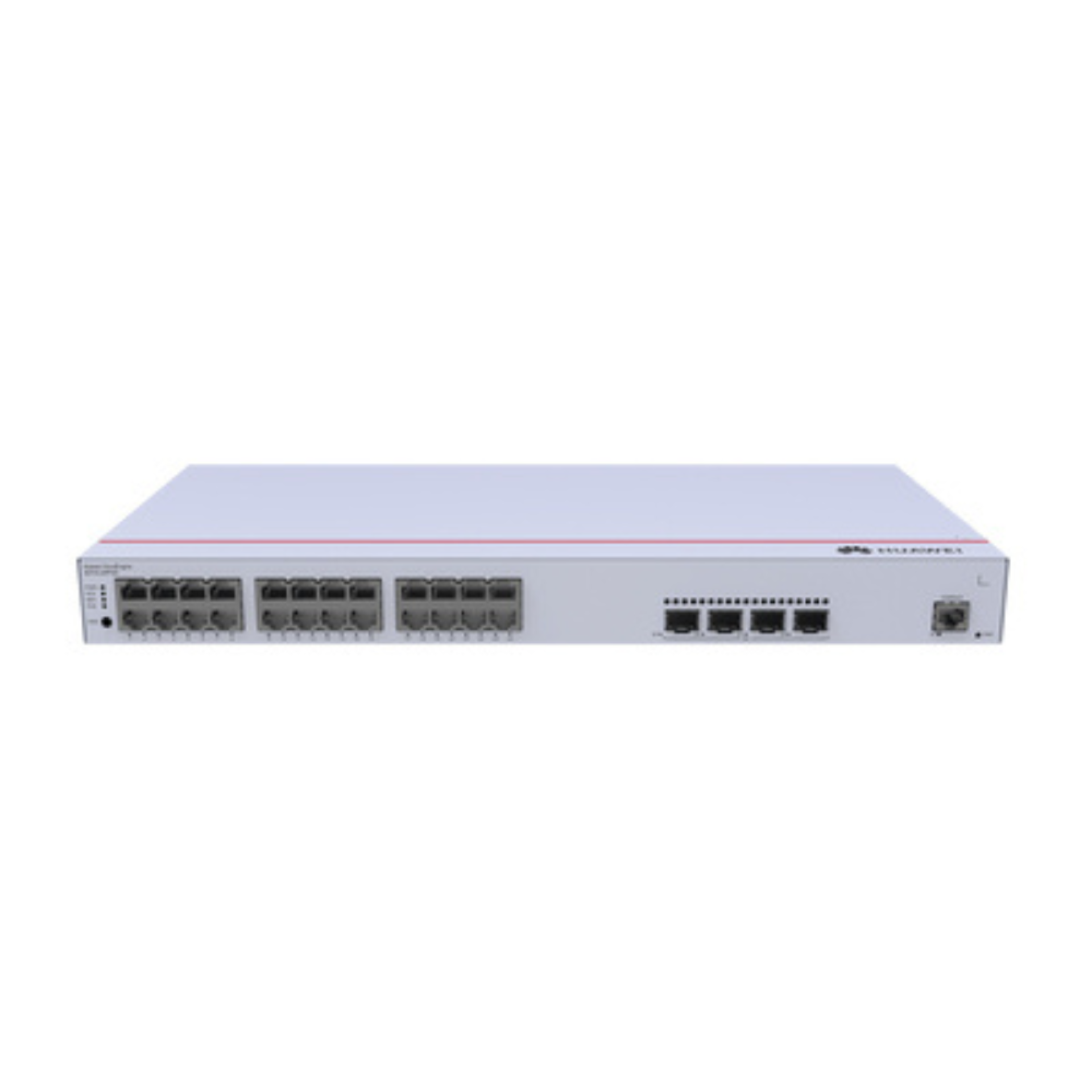

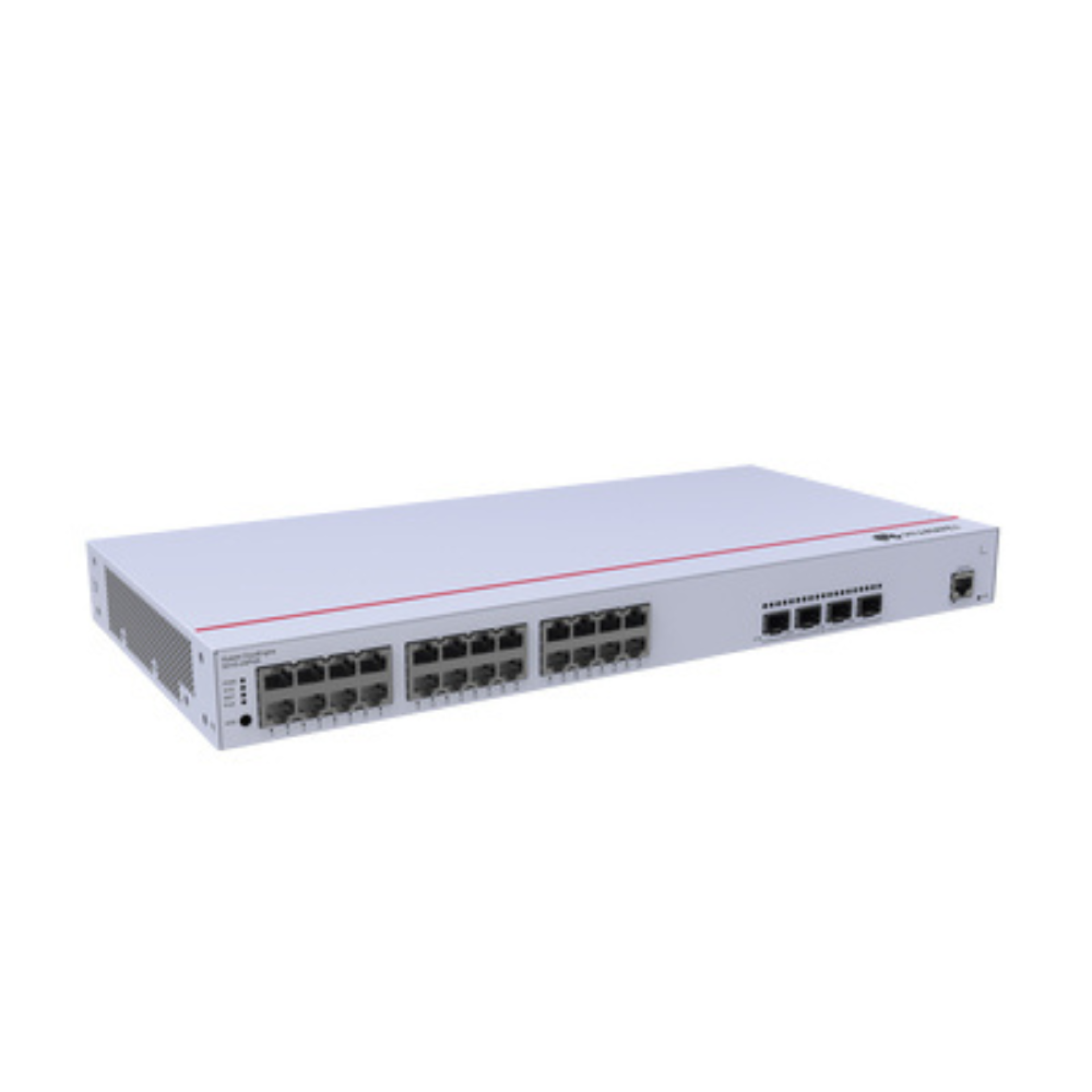

Huawei S310-24P4S Managed Gigabit PoE Network Switch

Product Key Features – Huawei S310-24P4S Managed Gigabit PoE Network Switch

• 24× Gigabit Ethernet PoE+ ports for data and power delivery

• 4× Gigabit SFP fiber uplink ports for high-speed backbone connections

• Total switching capacity of 56Gbps with forwarding performance of 42Mpps

• 370W PoE power budget for powering IP cameras, phones, and wireless APs

• Layer 2+ switching with static routing for simplified network segmentation

• Advanced security features including ACL, 802.1X authentication, DHCP snooping, and MAC filtering

• Intelligent QoS for prioritizing voice, video, and critical data traffic

• Supports Spanning Tree Protocol (STP/RSTP/MSTP) and Link Aggregation for redundancy

• Multiple management options including Web GUI, CLI, SNMP, and Huawei Cloud-based management

• Compact 1U rackmount design with dual fan cooling for reliable performance

Discover the Huawei S310-24P4S Managed Gigabit PoE Network Switch

The Huawei S310-24P4S Managed Gigabit PoE Network Switch is an enterprise-grade access switch designed to provide both data connectivity and power to networked devices. Ideal for businesses, schools, hotels, and retail environments, it features a combination of 24 PoE+ Gigabit ports and 4 high-speed SFP uplinks. This switch delivers seamless connectivity with reliable power distribution to support devices like IP phones, security cameras, and Wi-Fi access points without the need for additional power supplies or injectors.

High-Speed Switching Performance with Huawei S310-24P4S Managed Gigabit PoE Network Switch

Built with a powerful switching capacity of up to 56Gbps and a forwarding rate of 42Mpps, the Huawei S310-24P4S Managed Gigabit PoE Network Switch is capable of handling large amounts of simultaneous data traffic. Whether used in a small to mid-sized enterprise or campus network, this switch ensures low latency and smooth communication between devices even under heavy load conditions.

Reliable PoE+ Power with Huawei S310-24P4S Managed Gigabit PoE Network Switch

The Huawei S310-24P4S Managed Gigabit PoE Network Switch supports the IEEE 802.3at PoE+ standard with a total PoE power budget of 370W. This means it can simultaneously power multiple network devices such as surveillance cameras, VoIP phones, and wireless access points directly through Ethernet cables, reducing installation complexity and saving costs on power infrastructure.

Advanced Layer 2+ Features in Huawei S310-24P4S Managed Gigabit PoE Network Switch

This switch goes beyond standard Layer 2 functionality by offering Layer 2+ static routing. It enables more efficient network segmentation and traffic management, reducing the load on core routers. With features like VLAN, link aggregation, Spanning Tree Protocol (STP/RSTP/MSTP), and multicast management, the switch helps create a resilient and scalable network.

Comprehensive Security with Huawei S310-24P4S Managed Gigabit PoE Network Switch

The Huawei S310-24P4S Managed Gigabit PoE Network Switch incorporates robust security mechanisms to protect the network from unauthorized access and attacks. With support for Access Control Lists (ACLs), DHCP snooping, MAC address filtering, and IEEE 802.1X port-based authentication, it ensures that only legitimate users and devices can access the network. Rogue device detection adds another layer of security.

Intelligent QoS for Smooth Network Operations with Huawei S310-24P4S Managed Gigabit PoE Network Switch

Quality of Service (QoS) features on the Huawei S310-24P4S Managed Gigabit PoE Network Switch ensure that mission-critical applications like voice and video receive priority over less sensitive data. This intelligent traffic management enhances the user experience, reducing jitter, lag, and packet loss for critical services, especially in VoIP and video conferencing scenarios.

Flexible Management and Monitoring with Huawei S310-24P4S Managed Gigabit PoE Network Switch

Administrators can manage the switch using various interfaces including a user-friendly web-based GUI, command-line interface (CLI), SNMP for remote monitoring, and integration with Huawei’s cloud-based management platforms like CloudCampus or iMaster NCE. This flexibility simplifies deployment, maintenance, and troubleshooting, whether on-premises or remotely.

Durable and Efficient Design with Huawei S310-24P4S Managed Gigabit PoE Network Switch

Built with enterprise durability in mind, the Huawei S310-24P4S Managed Gigabit PoE Network Switch features a compact 1U rackmount metal enclosure with dual intelligent fans for efficient cooling. Its energy-efficient design balances performance with power savings, helping reduce operational costs while ensuring long-term stability.

Why Choose the Huawei S310-24P4S Managed Gigabit PoE Network Switch

The Huawei S310-24P4S Managed Gigabit PoE Network Switch combines robust performance, comprehensive security, PoE+ convenience, and flexible management into one compact solution. Whether powering a surveillance network, office infrastructure, or wireless deployment, this switch delivers the reliability and scalability businesses need to support growing demands.

Get Your Huawei S310-24P4S Managed Gigabit PoE Network Switch Today

Enhance your network infrastructure with the Huawei S310-24P4S Managed Gigabit PoE Network Switch. Deliver high-speed data, seamless device power, and enterprise-grade security all in one. Invest today in this powerful networking solution and future-proof your organization’s connectivity needs.
