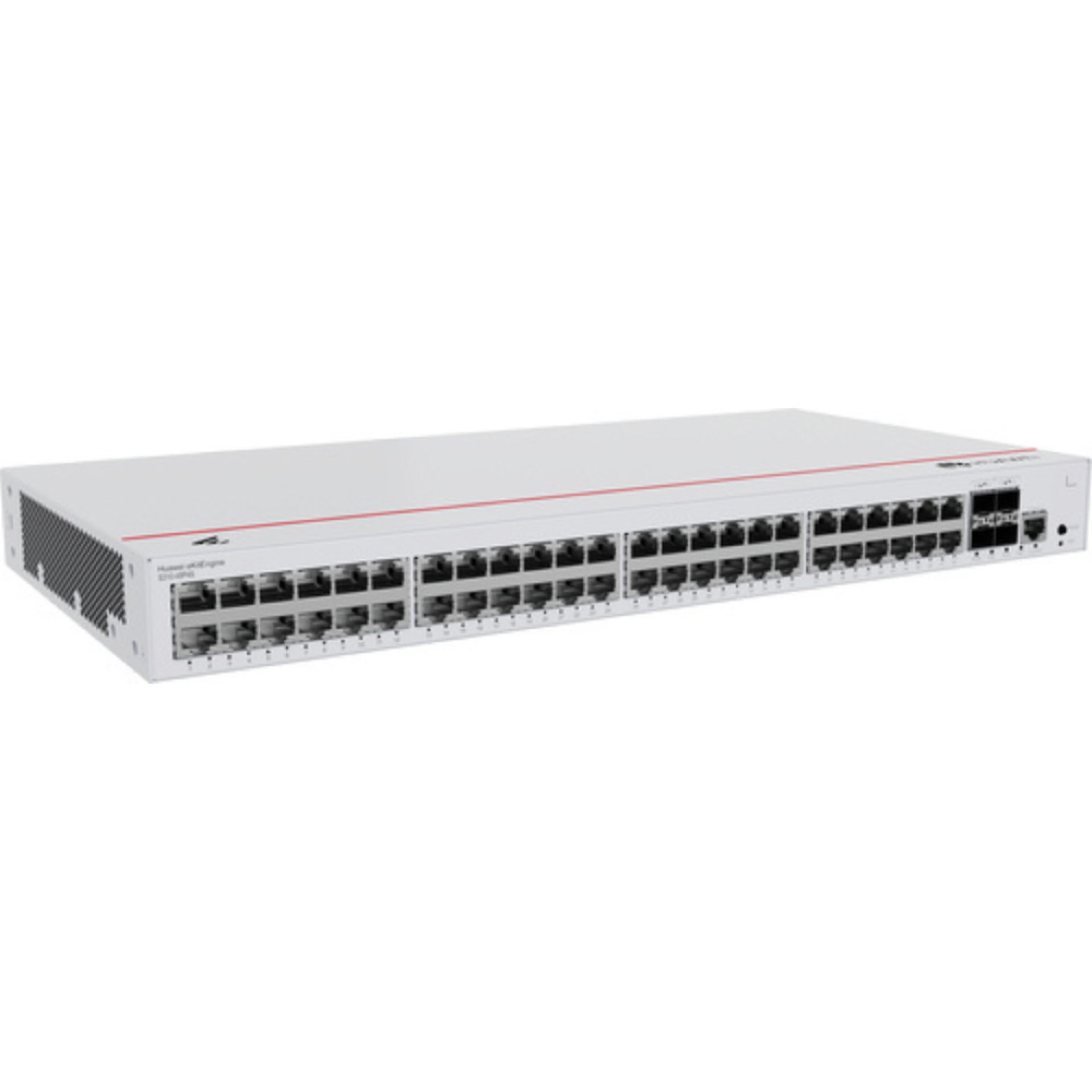

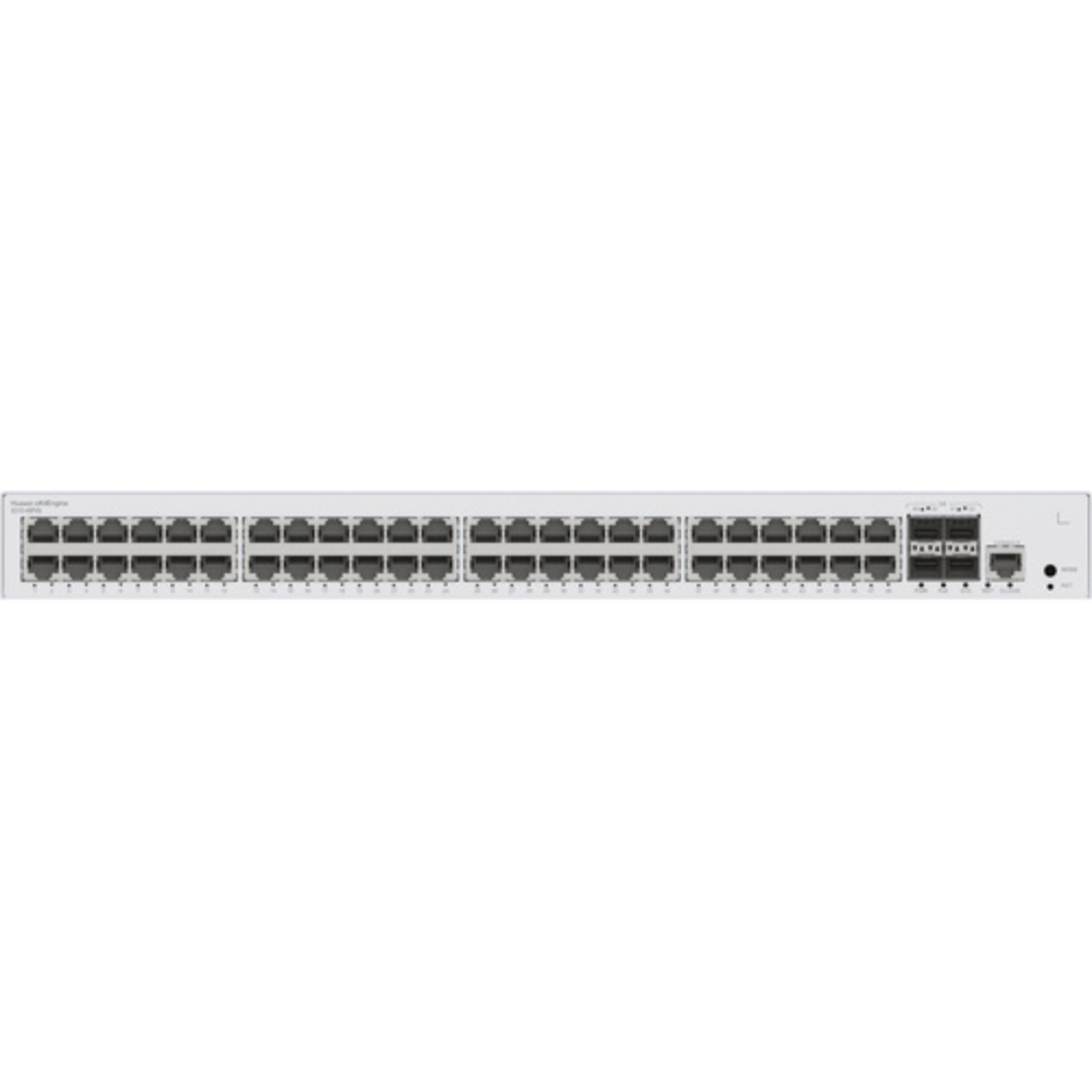

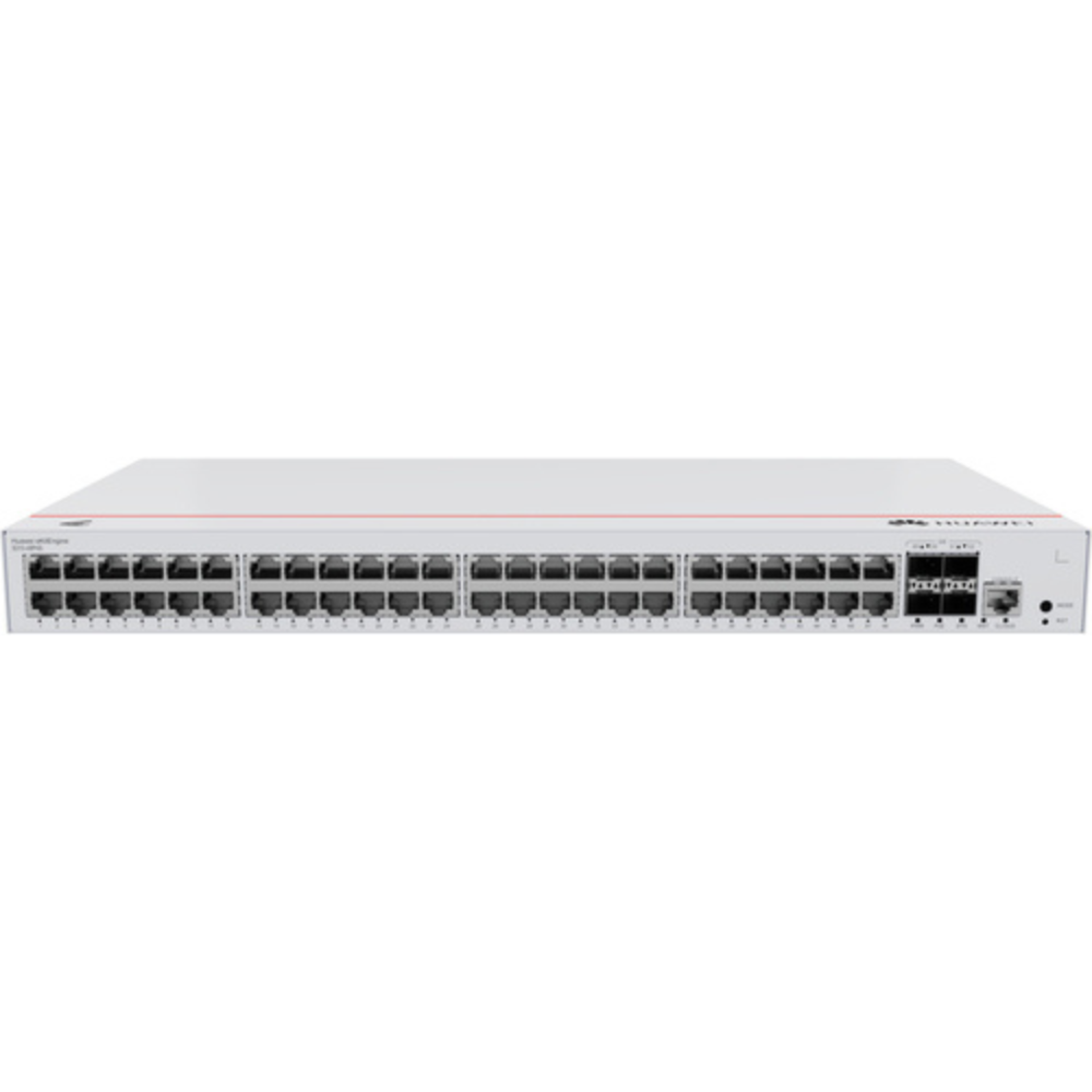

Huawei eKit S310-48P4S Gigabit PoE Network Switch

Product Key Features – Huawei eKit S310-48P4S Gigabit PoE Network Switch

• 48× Gigabit Ethernet PoE+ ports delivering both data and power

• 4× Gigabit SFP fiber uplink ports for high-speed backbone connections

• 104Gbps switching capacity with a 77Mpps forwarding rate for heavy workloads

• 380W PoE power budget to support IP cameras, VoIP phones, and wireless access points

• Layer 2+ features including VLANs, STP/RSTP/MSTP, link aggregation, and static routing

• Enhanced network security with 802.1X, MAC authentication, ARP filtering, and DHCP snooping

• Intelligent QoS to prioritize critical traffic such as voice, video, and real-time data

• Intelligent stacking (iStack) for managing multiple switches as one unit

• Multiple management options: Web GUI, CLI, SNMP, SSH, and Huawei Cloud-based management

• Rugged 1U rackmount metal chassis with dual intelligent cooling fans and high surge protection

Discover the Huawei eKit S310-48P4S Gigabit PoE Network Switch

The Huawei eKit S310-48P4S Gigabit PoE Network Switch is designed for businesses requiring high port density, powerful PoE capabilities, and reliable networking. Featuring 48 PoE+ ports and 4 fiber uplinks, this switch provides robust data and power connectivity ideal for offices, schools, surveillance networks, retail stores, and enterprise environments. Its enterprise-grade performance combines simplified deployment with cost-effective scalability.

Uncompromising Switching Performance with Huawei eKit S310-48P4S Gigabit PoE Network Switch

With a switching capacity of 104Gbps and a forwarding rate of 77Mpps, the Huawei eKit S310-48P4S offers robust performance for demanding workloads. Whether handling video surveillance streams, VoIP communications, or high-volume data transfers, this switch ensures smooth, uninterrupted traffic flow without bottlenecks.

Power Your Network Devices Efficiently with Huawei eKit S310-48P4S Gigabit PoE Network Switch

The switch delivers a total PoE power budget of 380W, fully compliant with IEEE 802.3af/at standards. It can power a wide range of PoE devices such as IP cameras, wireless access points, and VoIP phones directly through Ethernet cables, eliminating the need for additional power sources and simplifying cabling infrastructure.

Flexible Uplink Capabilities with Huawei eKit S310-48P4S Gigabit PoE Network Switch

Equipped with 4 Gigabit SFP uplink ports, the Huawei S310-48P4S allows for seamless integration into larger networks. These uplinks provide stable, high-speed connections to the core network or other switches over fiber, ensuring that the access layer can handle high-throughput demands without interruption.

Advanced Layer 2+ Features for Enhanced Networking

The Huawei eKit S310-48P4S Gigabit PoE Network Switch is more than just a basic switch. It supports advanced Layer 2+ functionality such as VLAN segmentation, Spanning Tree Protocol (STP/RSTP/MSTP) for redundancy, link aggregation to increase bandwidth, and static routing to optimize network paths without requiring a dedicated router at the edge.

Comprehensive Security to Protect Your Network

This switch is built with security at its core. Features like MAC-based authentication, 802.1X, DHCP snooping, ARP filtering, and DoS attack protection prevent unauthorized access and safeguard the integrity of the network. These protections are vital for businesses that handle sensitive data or operate critical infrastructure.

Smart QoS Management for Prioritized Traffic

The Huawei eKit S310-48P4S Gigabit PoE Network Switch includes advanced Quality of Service (QoS) mechanisms that allow administrators to prioritize critical applications such as voice, video, and real-time data. This ensures that bandwidth is allocated efficiently, reducing latency and packet loss for important services.

Simplified Scalability with Intelligent Stacking (iStack)

Supporting Huawei's iStack technology, the S310-48P4S allows multiple switches to be managed as a single logical device. This simplifies configuration, monitoring, and maintenance while enabling high scalability and redundancy in growing network environments
