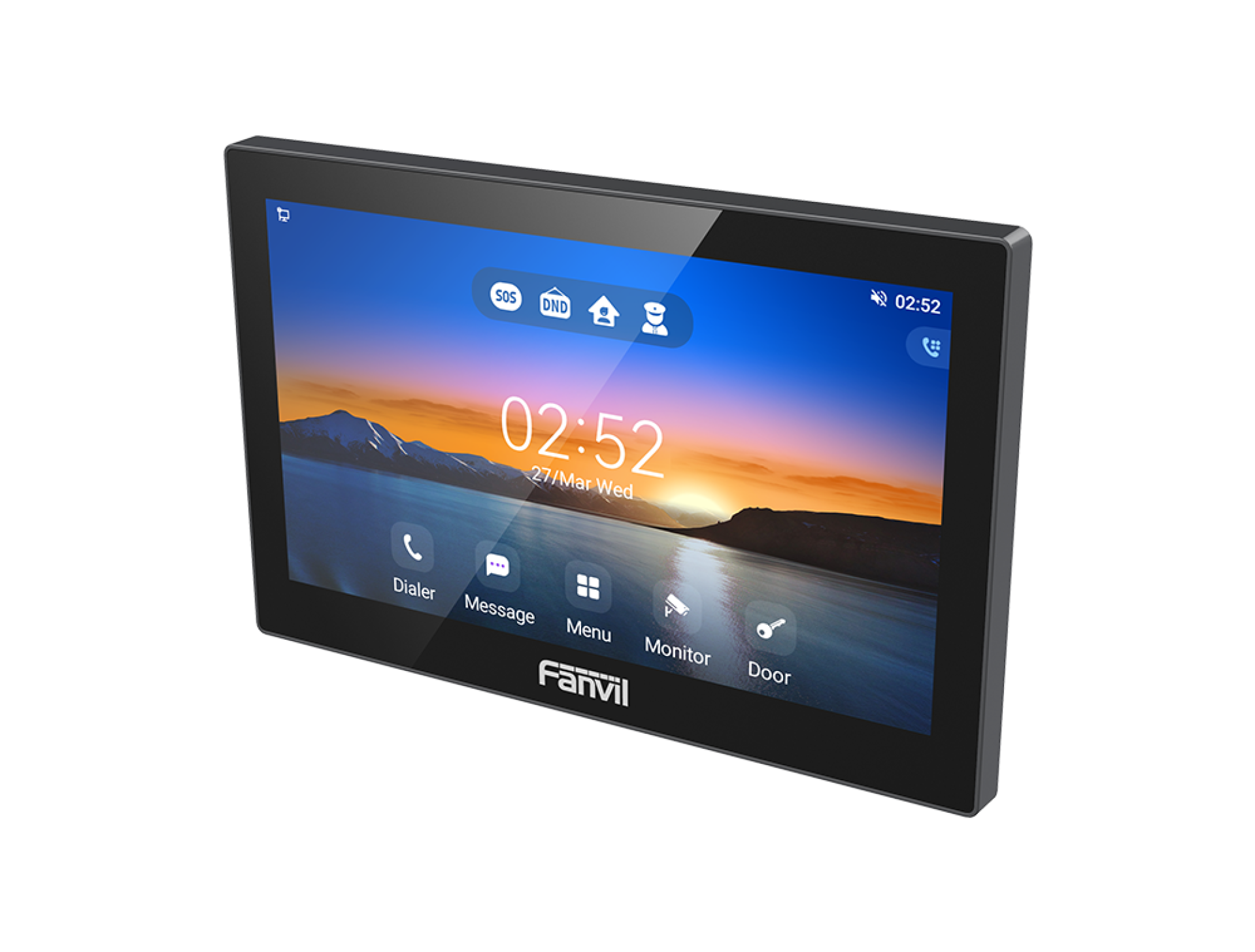

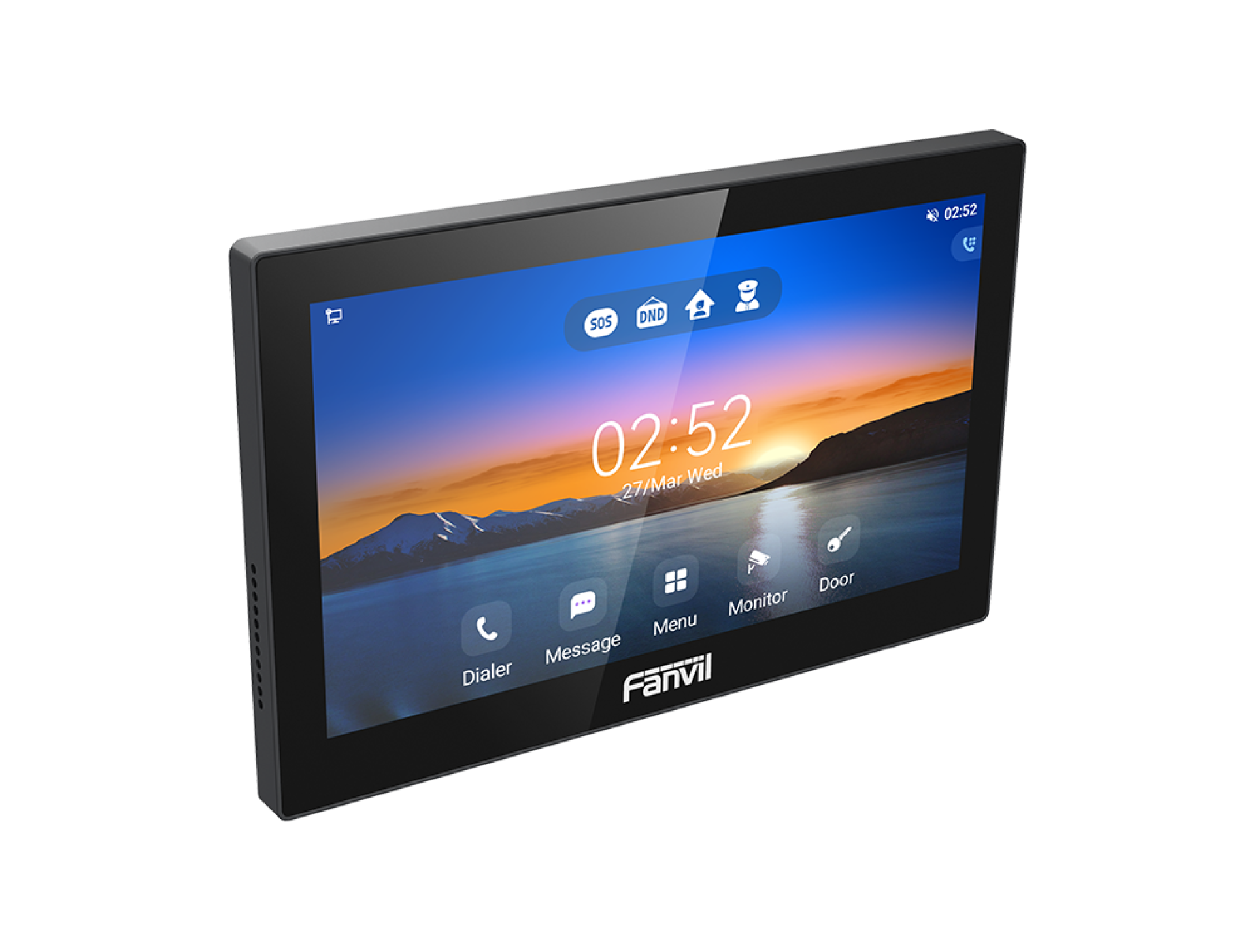

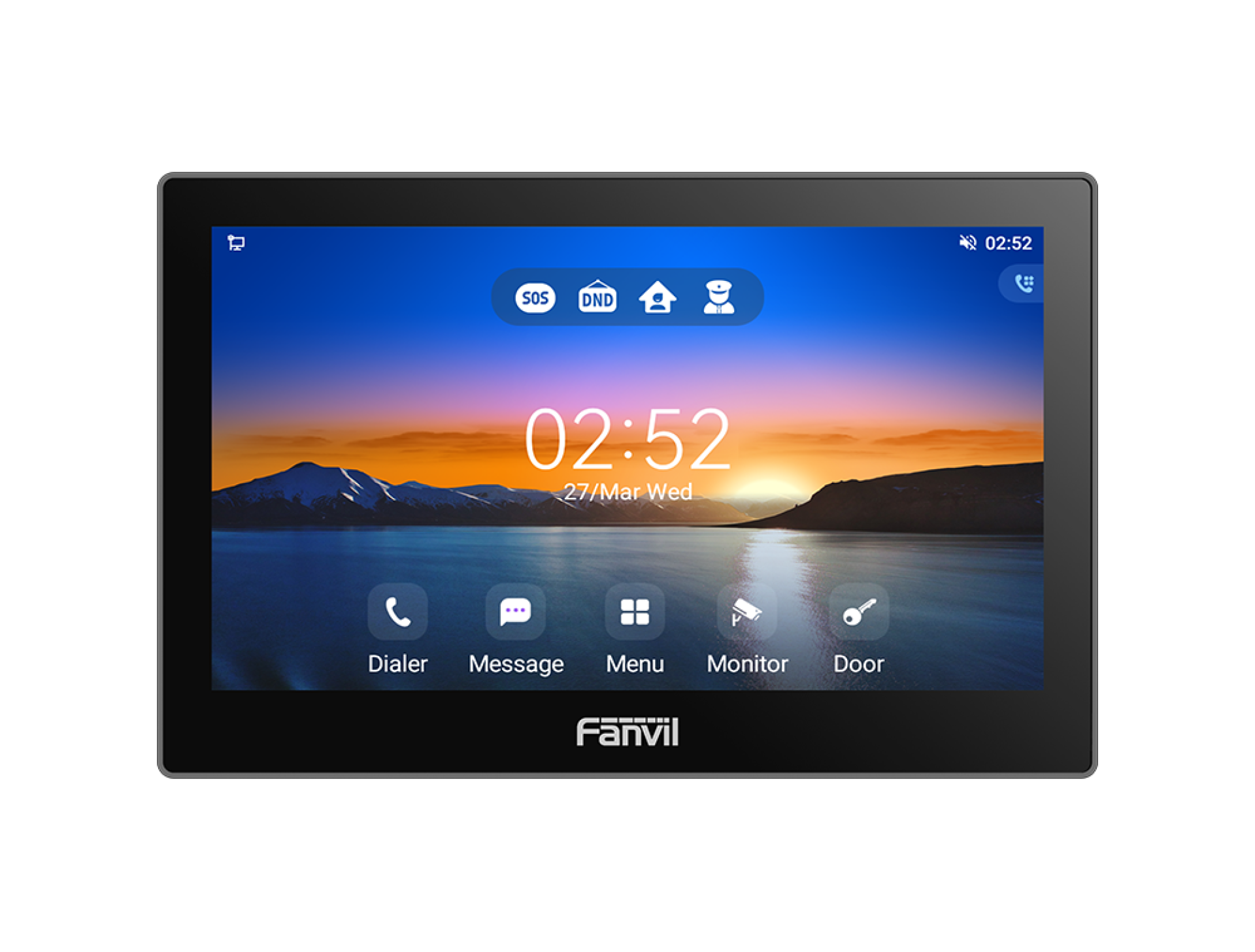

Fanvil i505W Android Indoor Station

Fanvil i505W Android Indoor Station Key Features

• 7-inch color capacitive touchscreen
• 1024 × 600 screen resolution
• Android 9.0 operating system
• Dual-band 2.4GHz and 5GHz Wi-Fi
• 2 SIP lines
• HD two-way audio communication
• G.722 and Opus audio codecs
• H.264 and H.265 video decoding
• Video support up to 1080p
• Full-duplex hands-free calling
• Acoustic Echo Cancellation AEC
• 8 alarm inputs
• Short-circuit output
• Doorbell input
• RS485 interface
• Remote door unlocking
• Third-party IP camera monitoring
• Third-party app support
• PoE 802.3af support
• 10/100 Mbps Ethernet
• Wall-mounted installation
• Suitable for homes, villas, hotels, offices, and residential communities

Fanvil i505W Android Indoor Station Introduction

The Fanvil i505W Android Indoor Station is a smart indoor intercom and security communication device designed for residential communities, villas, hotels, and office buildings. It features a 7-inch color touchscreen with a 1024 × 600 resolution and runs on Android 9.0, providing an intuitive interface and support for third-party applications.

The i505W supports dual-band 2.4GHz and 5GHz Wi-Fi, SIP-based two-way communication, video monitoring, remote door unlocking, and alarm integration. Its combination of touchscreen controls, wireless connectivity, and security interfaces makes it suitable for modern access-control and building communication systems.

Fanvil i505W Android Indoor Station Price in Kenya

Fanvil i505W Android Indoor Station Key Specifications

Fanvil i505W Android Indoor Station Performance

The Fanvil i505W provides reliable audio and video communication for building access and security applications.

• Supports SIP-based two-way communication
• HD audio with G.722 and Opus
• Full-duplex hands-free calling
• Acoustic Echo Cancellation
• Supports video decoding up to 1080p
• Compatible with H.264 and optional H.265 video
• Supports live video feeds from connected IP cameras
• Enables remote door unlocking
• Supports message sending and receiving
• Customizable incoming call ringtones
• Supports Do Not Disturb scheduling

Fanvil i505W Android Indoor Station Display & Design

The i505W features a large touchscreen designed to make intercom and security functions easy to access.

• 7-inch color capacitive touchscreen
• 1024 × 600 resolution
• Android 9.0 interface
• ABS body
• Compact wall-mounted design
• 2W built-in speaker
• Intuitive user interface
• Suitable for residential and commercial environments

The unit measures approximately 177.38 × 113.99 × 22.5 mm, making it relatively compact for a wall-mounted indoor station.

Fanvil i505W Android Indoor Station Connectivity

The i505W provides both wired and wireless networking options.

• Dual-band 2.4GHz and 5GHz Wi-Fi
• 10/100 Mbps Ethernet
• PoE 802.3af support
• SIP 2.0 over UDP, TCP, and TLS
• IPv4 networking
• Third-party application support
• Third-party IP camera integration
• Secure communication options

Fanvil i505W Android Indoor Station Security Features

The device can form part of a larger building access and security system.

• Two-way intercom
• Remote door unlocking
• 8 alarm inputs
• Doorbell input
• Short-circuit output
• IP camera monitoring
• Message communication
• Alarm system integration
• Third-party application integration
• Wall-mounted installation

Fanvil i505W Android Indoor Station Ideal Use Cases

This indoor station is best suited for:

• Residential apartments
• Gated communities
• Villas
• Hotels
• Office buildings
• Apartment complexes
• Property management systems
• Access-control systems
• Smart building installations
• Security monitoring
• Visitor management

Fanvil i505W Android Indoor Station Pros and Cons

Fanvil i505W Android Indoor Station FAQs

What operating system does the Fanvil i505W use?
The i505W runs Android 9.0, allowing integration with supported third-party applications.

What size is the display?
It has a 7-inch color capacitive touchscreen with a 1024 × 600 resolution.

Does the Fanvil i505W support Wi-Fi?
Yes. The i505W supports dual-band 2.4GHz and 5GHz Wi-Fi.

Can the i505W unlock doors remotely?
Yes. It supports remote door unlocking when connected to a compatible access-control system.

Does the Fanvil i505W support video calls?
Yes. It supports SIP video communication and video decoding up to 1080p, depending on the supported video codec and configuration.

How many alarm inputs does it have?
The i505W provides 8 alarm inputs, along with a short-circuit output and doorbell input.

Does the Fanvil i505W support PoE?
Yes. It supports PoE 802.3af as well as 12V DC power.

Can it connect to IP cameras?
Yes. The i505W can display video feeds from supported third-party IP cameras.

How is the Fanvil i505W installed?
The device is designed for wall-mounted installation.

How much does the Fanvil i505W Android Indoor Station cost in Kenya?
The price is KSh 14,000.

Fanvil i505W Android Indoor Station Conclusion

The Fanvil i505W Android Indoor Station is a versatile smart intercom and access-control device that combines a 7-inch touchscreen, Android 9.0, dual-band Wi-Fi, HD audio, video communication, remote door unlocking, and multiple alarm interfaces. Its PoE support and wall-mounted design also make installation convenient in residential and commercial buildings.

At KSh 14,000, the Fanvil i505W is a practical choice for apartments, villas, hotels, offices, gated communities, and other properties requiring integrated indoor communication and security features.
