Fanvil GA10 – Analog VoIP Gateway

Fanvil GA10 Analog VoIP Gateway Key Features

• Compact SIP ATA gateway
• 1 FXS RJ11 port
• 2 SIP lines
• HD voice support
• G.722 and Opus wideband codecs
• 3-way audio conferencing
• 10/100Mbps Ethernet
• SIP 2.0 support
• IPv4 and IPv6
• Echo cancellation and noise reduction
• Automatic provisioning
• Caller ID support
• Call forwarding and transfer
• Call waiting
• Do Not Disturb
• Desktop or wall-mounted installation
• Micro USB and DC power options
• Compact 85 × 68 × 22.7mm design

Fanvil GA10 Analog VoIP Gateway Introduction

The Fanvil GA10 Analog VoIP Gateway is a compact SIP ATA device that allows traditional analog telephones and compatible analog equipment to connect to modern VoIP networks. It features a single FXS RJ11 port and supports two SIP lines, making it suitable for small businesses, offices, homes, and organizations transitioning from traditional telephone systems to IP communication.

The GA10 also supports HD voice, G.722 and Opus codecs, 3-way audio conferencing, automatic provisioning, and a range of advanced call-management functions.

Fanvil GA10 Analog VoIP Gateway Price in Kenya

Fanvil GA10 Analog VoIP Gateway Key Specifications

Fanvil GA10 Analog VoIP Gateway Performance

The GA10 provides a simple way to integrate an existing analog telephone into an IP-based communication system. Its single FXS port connects an analog phone or other compatible analog equipment, while the Ethernet port provides network connectivity.

With support for two SIP accounts, users can configure the gateway for flexible VoIP communication and take advantage of features such as call forwarding, call transfer, call waiting, and 3-way conferencing.

Fanvil GA10 Analog VoIP Gateway Audio Quality

The GA10 supports HD voice through wideband codecs including G.722 and Opus. It also incorporates acoustic echo cancellation, noise reduction, automatic gain control, packet-loss concealment, and dynamic adaptive jitter buffering to improve voice communication.

These technologies help maintain clear and consistent conversations when using an analog telephone over a VoIP network.

Fanvil GA10 Analog VoIP Gateway Connectivity

The GA10 uses a 10/100Mbps Ethernet port for network connectivity and supports IPv4 and IPv6 networking. It supports static IP, DHCP, and PPPoE configurations, together with VLAN, QoS, firewall, and other network functions.

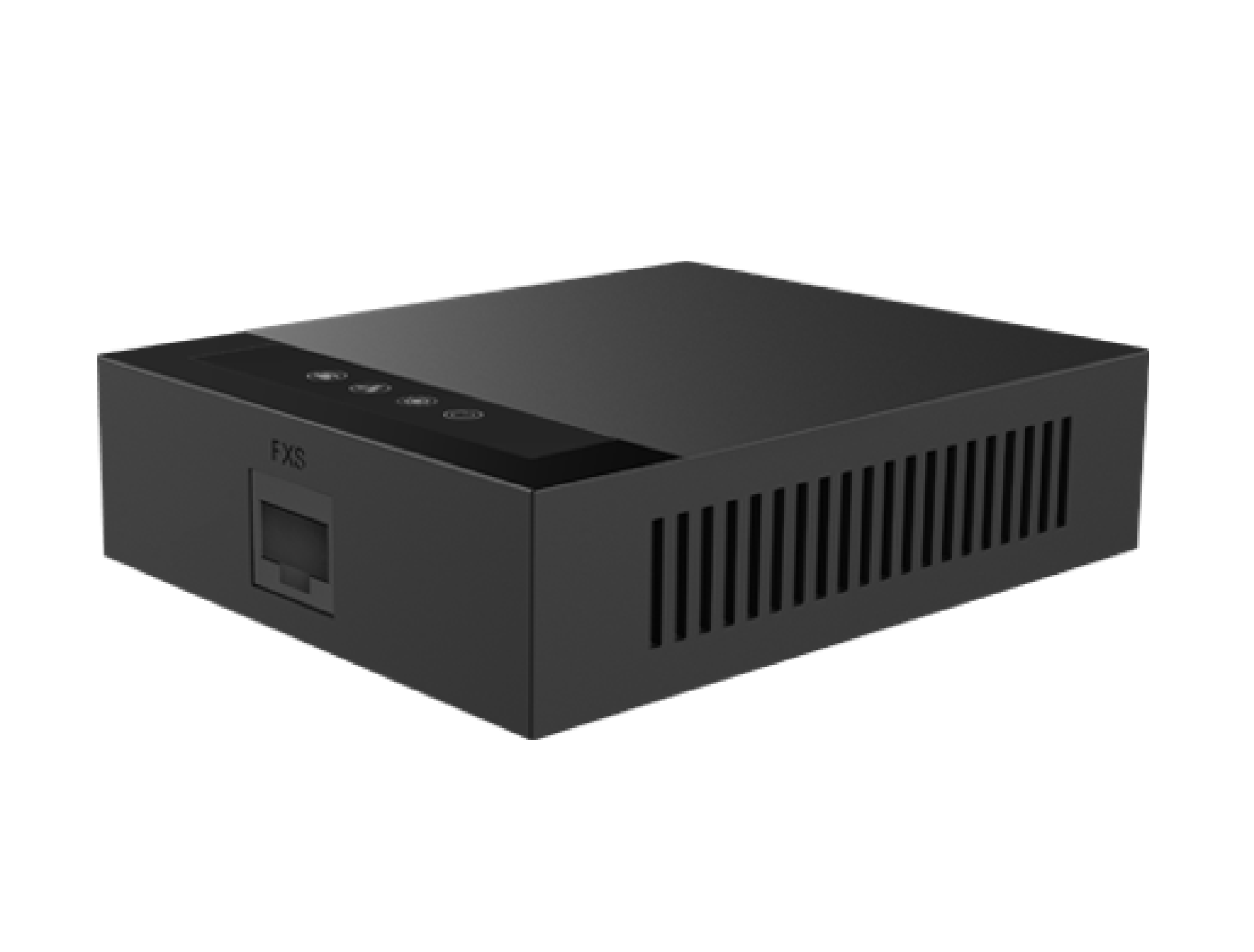

Its single RJ11 FXS port allows a standard compatible analog telephone to be connected directly to the gateway.

Fanvil GA10 Analog VoIP Gateway Calling Features

The GA10 provides several standard business telephone functions:

• Caller ID
• Call hold and resume
• Call waiting
• Call forwarding
• Call transfer
• Do Not Disturb
• Hotline
• Anonymous calling
• Voice message waiting indication
• 3-way conference
• Speed and dialing functions

Feature availability can depend on the connected IP PBX or VoIP service.

Fanvil GA10 Analog VoIP Gateway Automatic Provisioning

The GA10 supports automatic provisioning through FTP, TFTP, HTTP, HTTPS, DHCP Option 66, SIP PnP, and TR-069. This makes deployment easier when installing multiple units across an organization.

It can also be configured through its web management portal or voice menu.

Fanvil GA10 Analog VoIP Gateway Design & Installation

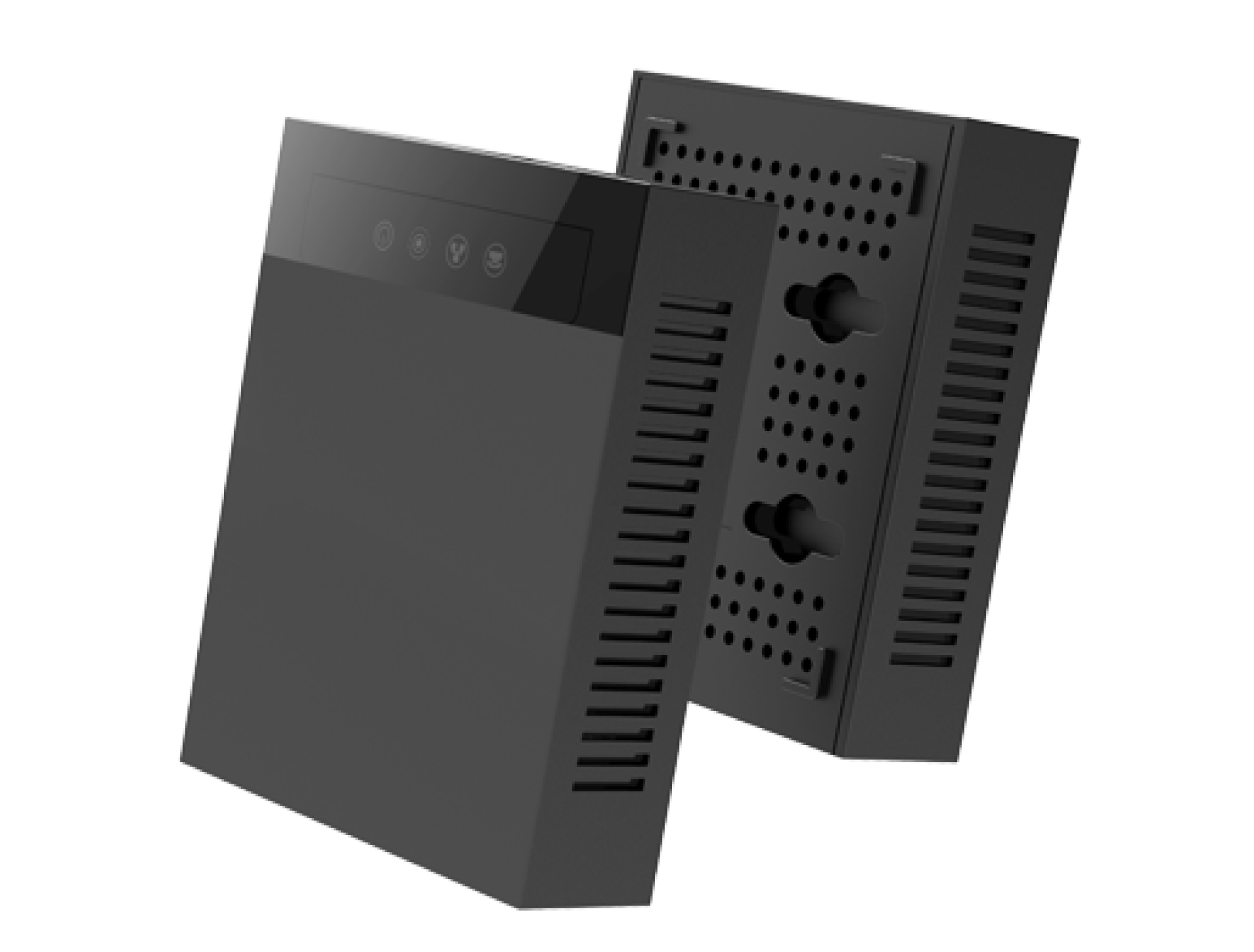

The GA10 has a compact black enclosure measuring approximately 85 × 68 × 22.7mm. It supports both desktop and wall-mounted installation, making it suitable for offices and locations where installation space is limited.

The gateway also includes status indicators for power, network, SIP registration, and call activity.

Fanvil GA10 Analog VoIP Gateway Ideal Use Cases

This gateway is best suited for:

• Small businesses
• Offices
• Home offices
• Call centers
• Reception areas
• Hotels
• Analog telephone integration
• Fax and compatible analog equipment
• VoIP deployments
• IP PBX systems
• Businesses migrating from analog to IP telephony

Fanvil GA10 Analog VoIP Gateway Pros and Cons

Fanvil GA10 Analog VoIP Gateway FAQs

What is the Fanvil GA10?
The Fanvil GA10 is a compact SIP ATA gateway that allows an analog telephone to connect to a VoIP network.

How many analog ports does it have?
It has one FXS RJ11 port for connecting a compatible analog telephone or device.

How many SIP lines does the GA10 support?
It supports 2 SIP lines.

Does the Fanvil GA10 support HD voice?
Yes. It supports HD voice and wideband codecs including G.722 and Opus.

Does it support 3-way conferencing?
Yes. The GA10 supports 3-way audio conferencing.

What network speed does it support?
The GA10 has a 10/100Mbps Ethernet network port.

Can the GA10 be wall mounted?
Yes. It supports both desktop and wall-mounted installation.

What power supply does the GA10 use?

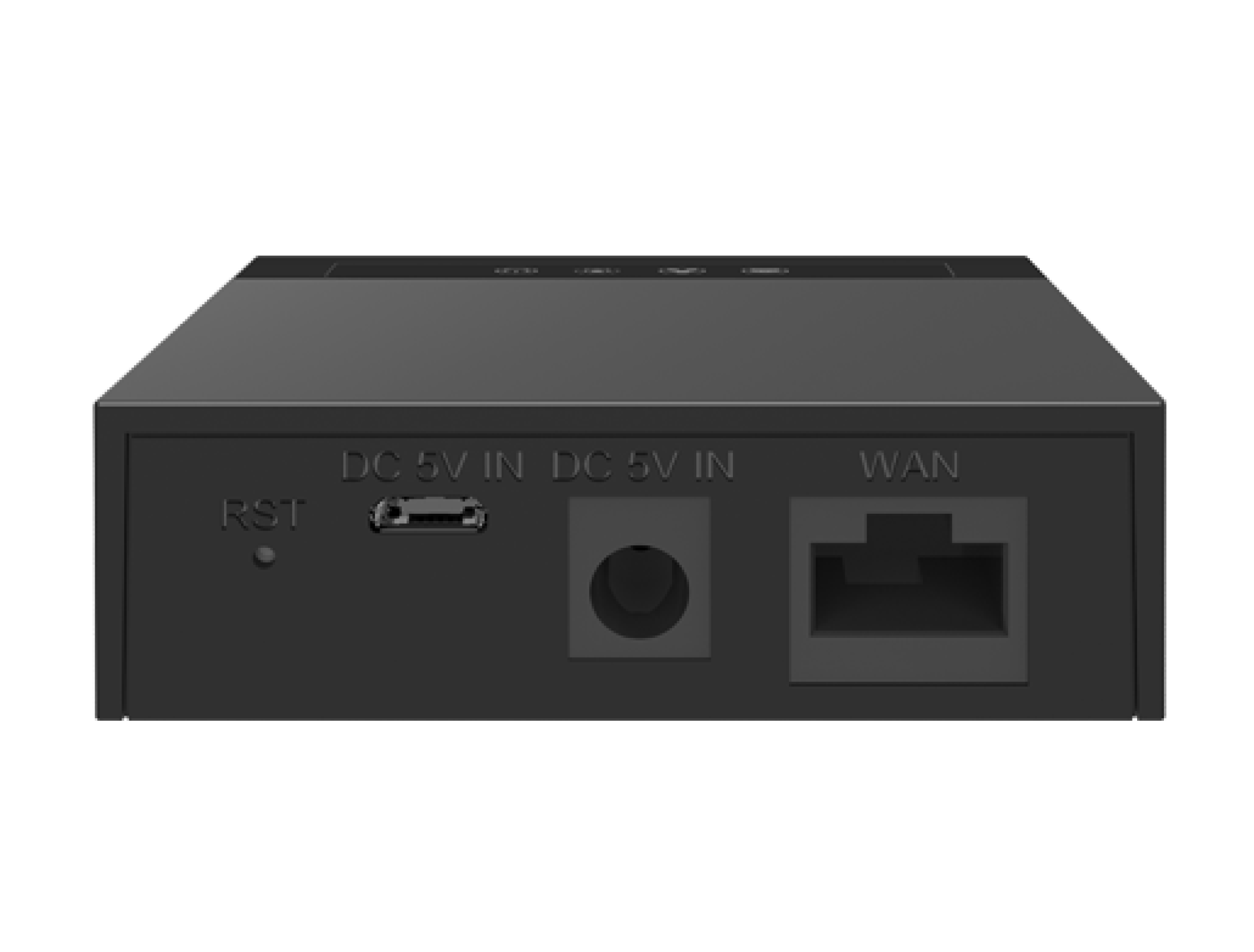

The device uses DC 5V/1A power and includes USB and DC power input options.

How much does the Fanvil GA10 Analog VoIP Gateway cost in Kenya?
The price is KSh 5,500.

Fanvil GA10 Analog VoIP Gateway Conclusion

The Fanvil GA10 Analog VoIP Gateway is a compact and affordable solution for connecting traditional analog telephones to modern VoIP networks. With 1 FXS port, 2 SIP lines, HD voice, G.722 and Opus codecs, 3-way conferencing, automatic provisioning, and flexible installation, it is well suited to small businesses and organizations transitioning to IP telephony.

At KSh 5,500, the Fanvil GA10 provides a cost-effective way to extend the usefulness of existing analog telephone equipment within a modern VoIP environment.
