Fanvil A201 Ceiling Speaker

Fanvil A201 Ceiling Speaker Key Features

• Commercial-grade IP ceiling speaker
• 10W speaker output
• Up to 100dB maximum SPL
• 250Hz–20kHz frequency response
• Built-in omnidirectional microphone
• 2 SIP lines
• HD voice support
• SIP 2.0 support
• ONVIF support
• PoE and PoE+ power support
• DC 12V–24V power option
• 10/100Mbps Ethernet connectivity
• Supports multicast broadcasting
• Up to 20 multicast partitions
• 24MB built-in audio storage
• Scheduled audio broadcasting
• Emergency notification and alarm audio
• Two-way intercom
• Self-test and monitoring functions
• Short-circuit input and output
• External IP camera linkage
• Remote volume adjustment
• Ceiling-mounted installation

Fanvil A201 Ceiling Speaker Introduction

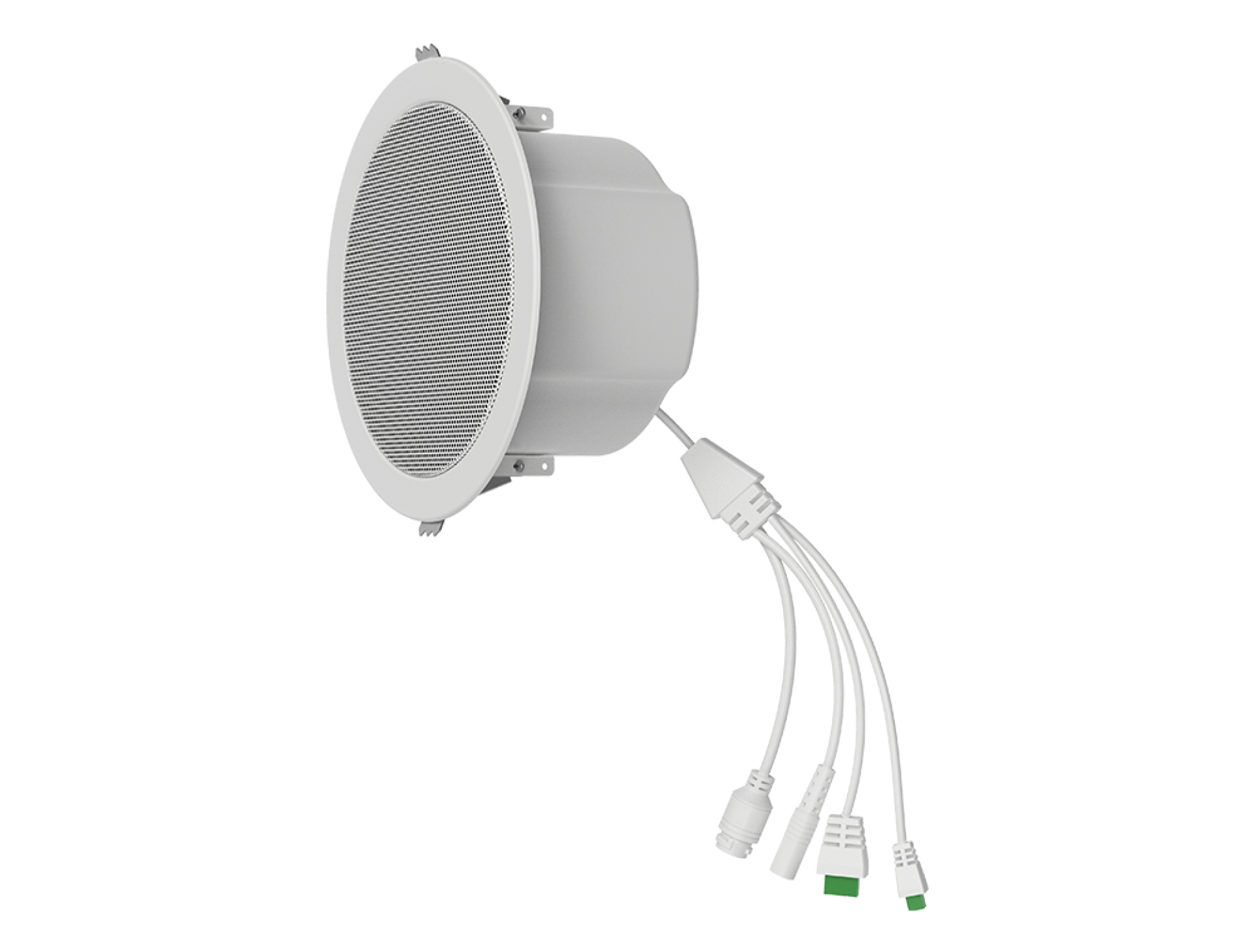

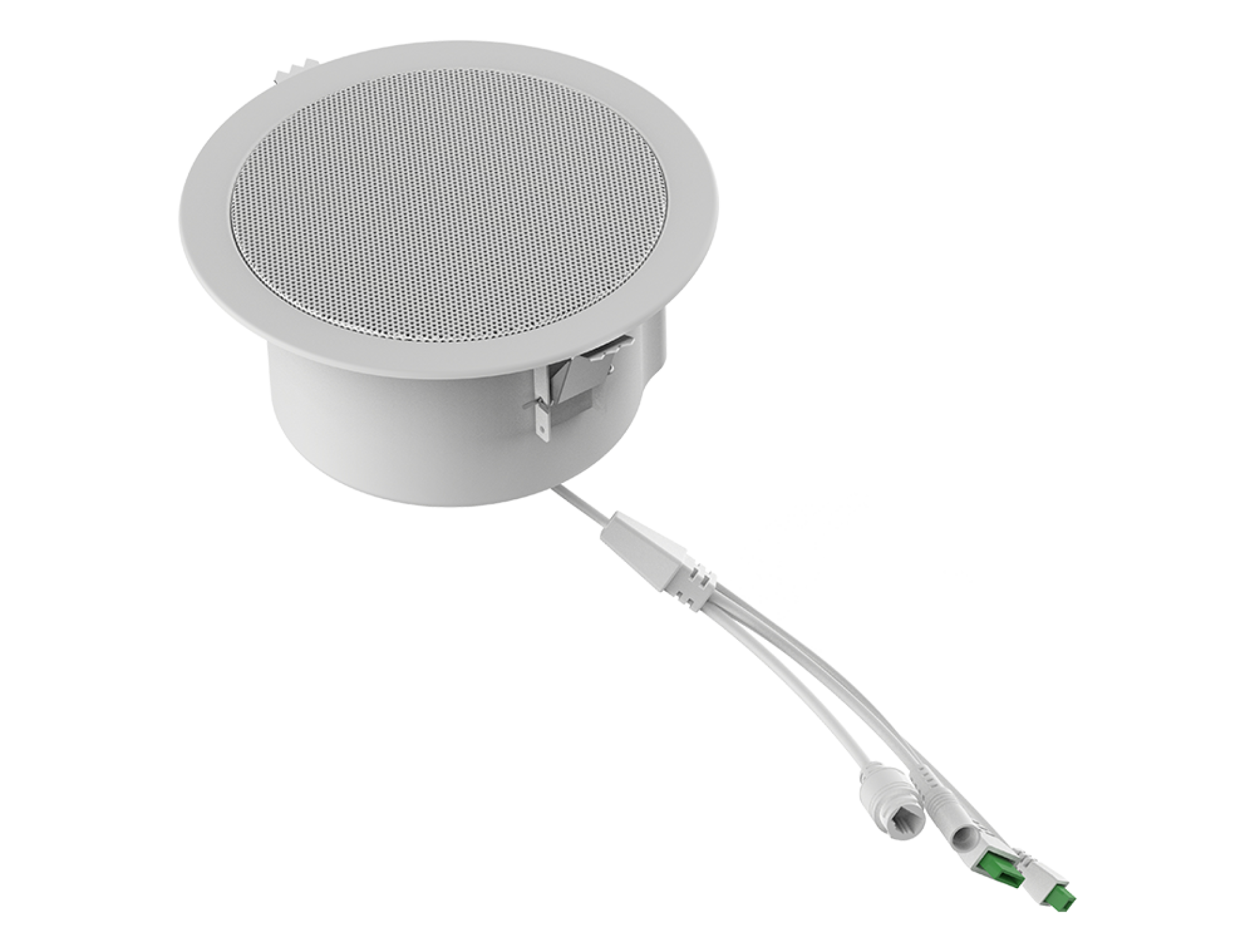

The Fanvil A201 Ceiling Speaker is a commercial-grade IP audio terminal designed for ceiling-mounted installation in offices, schools, hospitals, retail spaces, and other indoor environments. It can operate as an independent network audio system or integrate with unified communication, surveillance, access control, and broadcast systems.

With a 10W speaker, up to 100dB sound output, built-in microphone, SIP connectivity, and PoE support, the A201 provides a flexible solution for paging, announcements, background music, emergency broadcasting, and two-way intercom.

Fanvil A201 Ceiling Speaker Price in Kenya

Fanvil A201 Ceiling Speaker Key Specifications

Fanvil A201 Ceiling Speaker Performance

The A201 is designed to provide clear and reliable audio coverage for indoor commercial environments.

• 10W speaker output through PoE+ or DC power
• Up to 100dB maximum sound pressure level
• 250Hz–20kHz frequency response
• HD voice through G.722 and Opus codecs
• Supports MP3 and WAV audio playback
• Full-duplex two-way communication
• Built-in omnidirectional microphone
• Remote volume adjustment
• Scheduled and emergency broadcasting

Fanvil A201 Ceiling Speaker Audio Quality

The A201 provides balanced audio for announcements, paging, music playback, and intercom applications.

Its 8Ω speaker delivers up to 10W of output when using PoE+ or DC power, while the 250Hz–20kHz frequency response helps provide clear speech and music reproduction.

The built-in omnidirectional microphone also allows the speaker to support two-way intercom, monitoring, and self-test functions.

Fanvil A201 Ceiling Speaker Broadcasting Features

The A201 supports multiple broadcasting functions for organizations that require centralized network audio.

• Paging broadcast
• Scheduled audio broadcasting
• Emergency broadcasting
• Timing broadcasts
• Multicast broadcasting
• Up to 20 multicast partitions
• Custom emergency audio files
• MP3 and WAV playback
• 24MB internal audio storage
• Priority management
• Remote volume adjustment

The built-in storage allows audio files to be stored locally for scheduled tasks and emergency announcements.

Fanvil A201 Ceiling Speaker Connectivity

The A201 uses wired Ethernet connectivity for network communication and power.

• 10/100Mbps Ethernet
• RJ45 network connection
• SIP 2.0
• ONVIF
• IPv4 and IPv6
• DHCP
• PPPoE
• VLAN
• LLDP
• QoS
• L2TP
• OpenVPN
• HTTP/HTTPS
• FTP/TFTP
• TR-069

Its network capabilities allow it to integrate with IP PBX systems, paging systems, surveillance platforms, and other compatible network infrastructure.

Fanvil A201 Ceiling Speaker Power Options

The A201 supports multiple power configurations.

• PoE 802.3af
• PoE+ 802.3at
• DC 12V–24V/2A
• Up to 6W speaker output using standard PoE
• Up to 10W output using PoE+
• Up to 10W output using DC power

PoE connectivity allows both power and network data to be delivered through a single Ethernet cable, helping simplify installation.

Fanvil A201 Ceiling Speaker Build Quality & Design

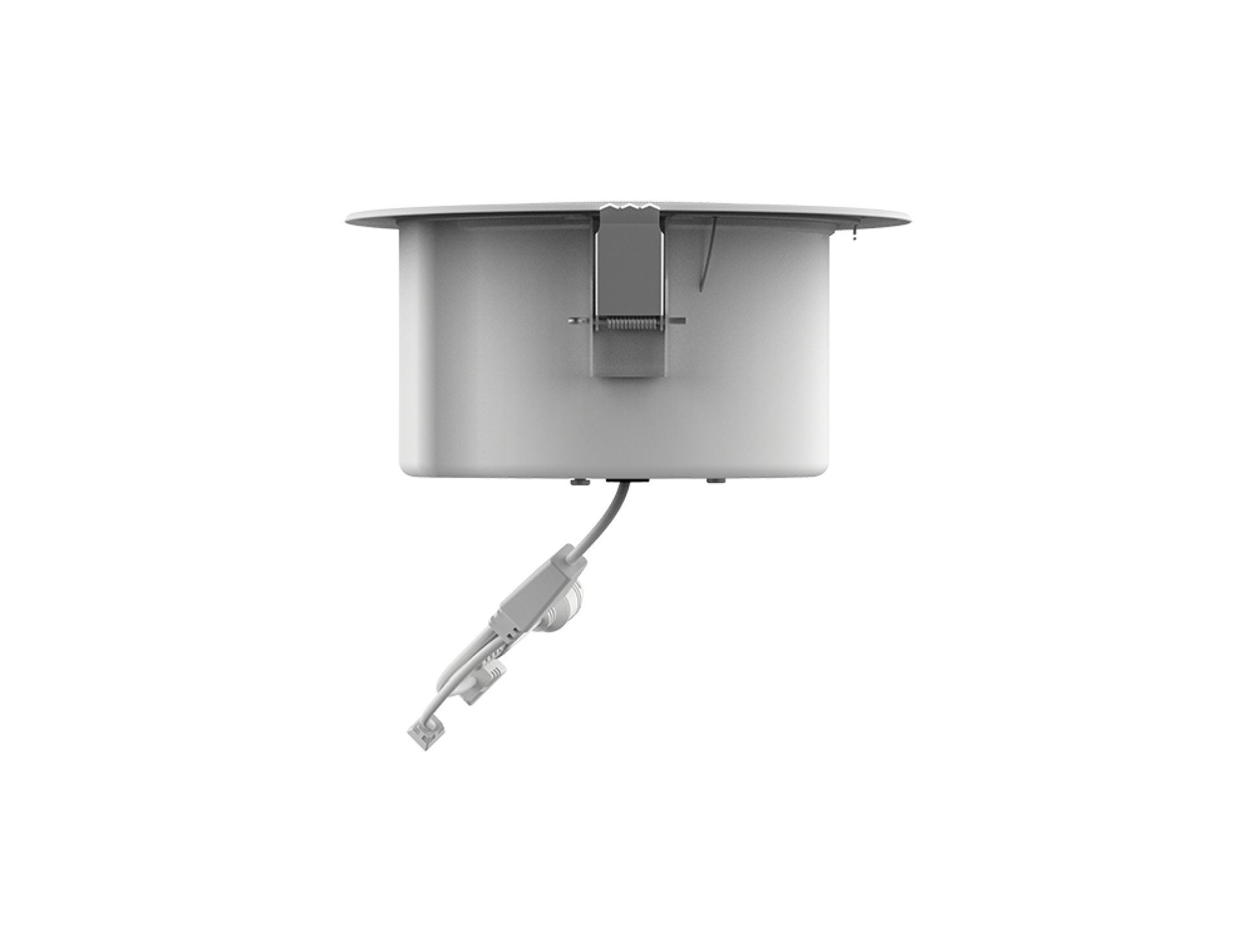

The A201 features a discreet ceiling-mounted design intended to blend into professional indoor environments. Its approximately 200mm diameter and 90mm depth make it suitable for ceiling installations where space and appearance are important.

The white finish gives the speaker a clean appearance that works well in offices, classrooms, hospitals, retail spaces, and commercial buildings.

Fanvil A201 Ceiling Speaker Integration

The A201 can integrate with a range of external systems through its network and control features.

• Unified communication systems
• IP PBX systems
• Video surveillance systems
• Access control systems
• Fanvil broadcast and intercom systems
• Digital signage systems
• Fire alarm systems
• IP camera systems

It also supports short-circuit input and output for integration with compatible external alarm and security devices.

Fanvil A201 Ceiling Speaker Ideal Use Cases

This ceiling speaker is best suited for:

• Offices
• Schools and universities
• Hospitals
• Retail stores
• Shopping centers
• Hotels
• Warehouses
• Commercial buildings
• Public facilities
• IP paging systems
• Emergency announcement systems
• Background music systems
• Security and access control installations

Fanvil A201 Ceiling Speaker Pros and Cons

Fanvil A201 Ceiling Speaker FAQs

What is the Fanvil A201?
The Fanvil A201 is a commercial-grade IP ceiling speaker designed for paging, broadcasting, intercom, background music, and emergency announcements.

How powerful is the Fanvil A201?
The speaker provides up to 10W output when powered through PoE+ or DC power.

What is the maximum sound level?
The A201 can reach up to 100dB maximum SPL.

Does the A201 support SIP?
Yes. It supports SIP 2.0 and two SIP lines for network-based communication.

Does the Fanvil A201 support PoE?
Yes. It supports PoE, PoE+, and DC 12V–24V/2A power options.

Does the A201 have a microphone?
Yes. It includes a built-in omnidirectional microphone for intercom, monitoring, and self-test functions.

Does it support emergency broadcasting?
Yes. The A201 supports emergency audio and customizable audio files for alarm and notification applications.

How many multicast partitions does it support?
The A201 supports up to 20 multicast partitions for zone-based audio distribution.

Can it integrate with an IP camera?
Yes. The A201 supports external IP camera video linkage.

How is the Fanvil A201 installed?
It is designed for ceiling-mounted installation.

How much does the Fanvil A201 Ceiling Speaker cost in Kenya?
The price is KSh 24,000.

Fanvil A201 Ceiling Speaker Conclusion

The Fanvil A201 Ceiling Speaker is a versatile IP audio solution designed for professional indoor environments. With 10W output, 100dB maximum SPL, SIP and ONVIF support, PoE connectivity, a built-in microphone, multicast broadcasting, scheduled audio, emergency announcements, and two-way intercom, it provides a comprehensive network-based audio solution.

At KSh 24,000, the Fanvil A201 is a practical choice for offices, schools, hospitals, retail spaces, hotels, and businesses looking for a professional ceiling-mounted IP speaker.
