Fanvil A12V Video Intercom

Fanvil A12V Video Intercom Key Features

• 4MP starlight HD camera
• 122° diagonal viewing angle
• 103° horizontal viewing angle
• 54.8° vertical viewing angle
• Infrared supplementary lighting
• HDR support
• 720P and 1080P video resolution
• 10W built-in speaker
• Turbo sound chamber
• Dual-microphone noise reduction
• Full-duplex hands-free audio
• SIP 2.0 support
• H.264 video encoding
• 2 short-circuit inputs
• 2 short-circuit outputs with built-in relays
• Wiegand interface
• RS485 interface
• MicroSD card support up to 256GB
• USB interface
• 10/100 Mbps Ethernet
• PoE+ 802.3at Class 4
• IP66 protection
• IK10 impact protection
• Stainless steel panel and aluminum alloy construction
• Wall-mounted and flush-mounted installation
• Suitable for apartments, villas, offices, hotels, and commercial buildings

Fanvil A12V Video Intercom Introduction

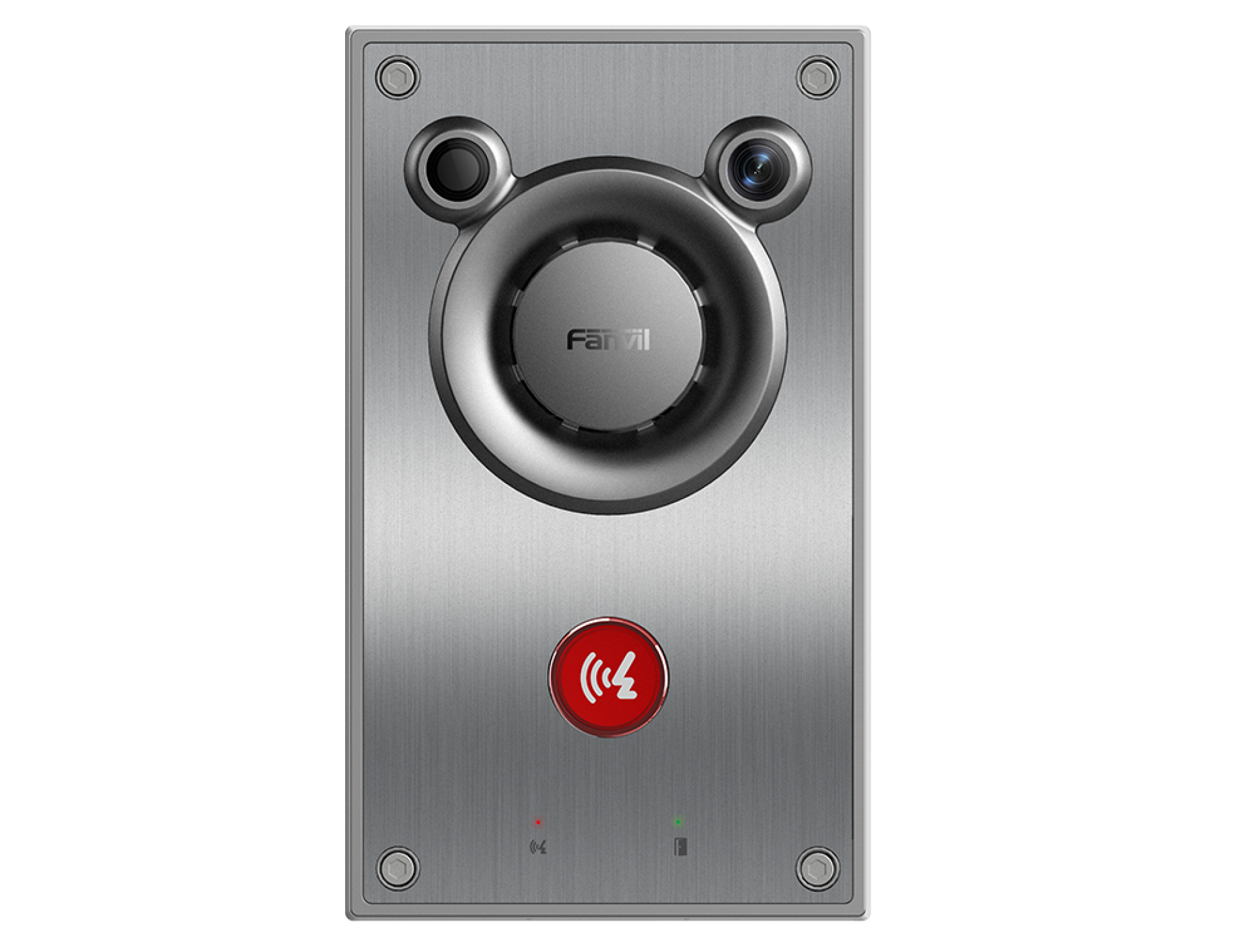

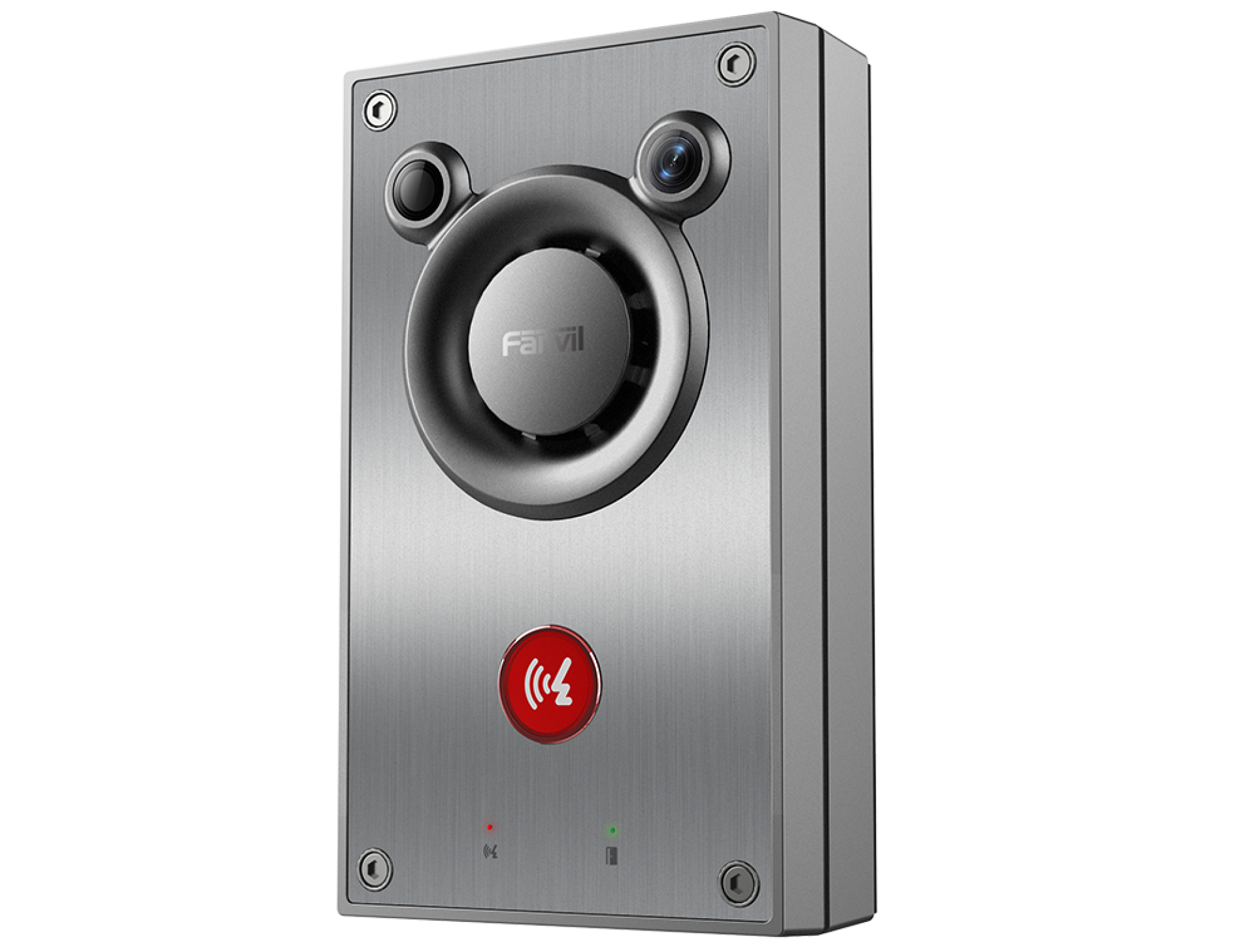

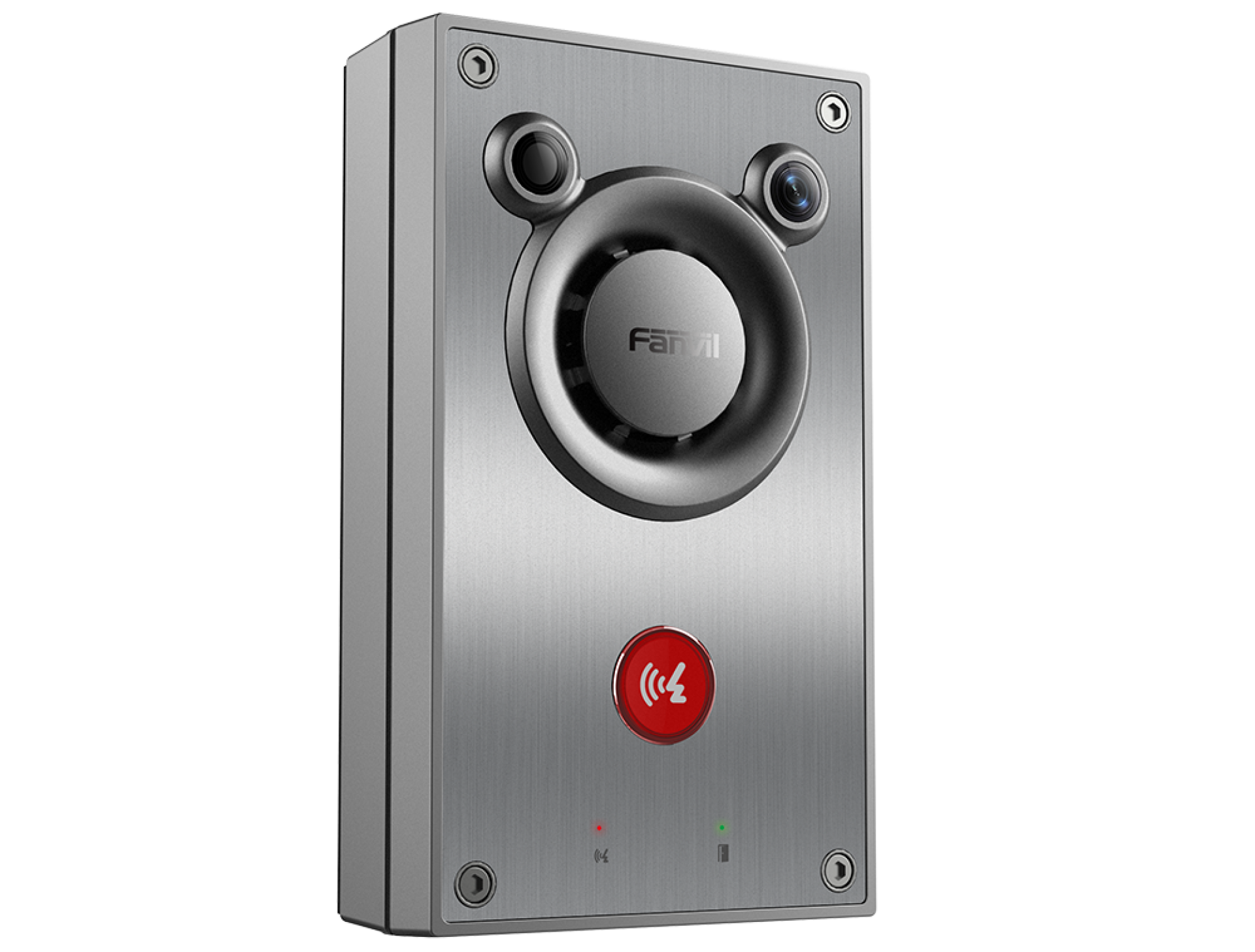

The Fanvil A12V Video Intercom is a professional SIP-based video intercom designed for building entrances, access control, and visitor communication. It features a 4MP starlight HD camera with infrared illumination and HDR technology, providing clear video even in challenging lighting conditions.

The A12V also features a powerful 10W speaker with a turbo sound chamber, together with dual-microphone noise reduction and voice enhancement technology for clear two-way communication. Its combination of video, audio, access-control interfaces, and durable construction makes it suitable for residential and commercial installations.

Fanvil A12V Video Intercom Price in Kenya

Fanvil A12V Video Intercom Key Specifications

Fanvil A12V Video Intercom Performance

The A12V is designed to provide clear communication and reliable video monitoring at entrances.

• 4MP starlight camera for detailed video
• 1080P video resolution
• Infrared illumination for low-light environments
• HDR technology for improved imaging
• Wide viewing angle for broader entrance coverage
• 10W speaker for powerful audio output
• Full-duplex hands-free communication
• Acoustic Echo Cancellation
• G.722 and Opus wideband audio support
• SIP-based communication
• Supports speed dialing, call waiting, and intercom functions

Fanvil A12V Video Intercom Camera & Video

The A12V uses a 4MP starlight camera designed to provide high-quality video for visitor identification and monitoring.

• 4MP color CMOS sensor
• 720P and 1080P resolution
• Infrared supplementary lighting
• HDR support
• 122° diagonal viewing angle
• 103° horizontal viewing angle
• 54.8° vertical viewing angle
• 0.05 Lux minimum illumination
• H.264 video encoding

Fanvil A12V Video Intercom Audio Quality

The A12V is equipped with a 10W speaker and turbo sound chamber for powerful sound output. Fanvil also incorporates dual-microphone noise reduction and voice enhancement technology to improve voice clarity in noisy environments.

• 10W speaker
• Turbo sound chamber
• Full-duplex hands-free communication
• Acoustic Echo Cancellation
• Dual-microphone noise reduction
• Voice enhancement
• G.711, G.729, iLBC, G.723, G.726 codecs
• G.722 and Opus wideband codecs

Fanvil A12V Video Intercom Access Control

The A12V provides several interfaces for integration with door locks, alarms, switches, and other access-control equipment.

• 2 short-circuit inputs
• 2 short-circuit outputs
• Built-in relays
• Wiegand interface
• RS485 interface
• Supports electric lock control
• Supports alarm integration
• Supports door sensors and switches
• DTMF remote door opening
• SIP-based access control integration

Fanvil A12V Video Intercom Connectivity

The A12V provides multiple wired interfaces for professional installations.

• 10/100 Mbps Ethernet
• PoE+ 802.3at Class 4
• DC 12V–24V power input
• Wiegand interface
• RS485 interface
• USB port
• MicroSD card slot
• Line-out connection for external audio equipment
• SIP over UDP, TCP, and TLS
• RTP, RTCP, and SRTP
• IPv4 and IPv6
• L2TP and OpenVPN support
• VLAN support

Fanvil A12V Video Intercom Build Quality & Design

The A12V is designed for demanding entrance environments with a combination of stainless steel and aluminum alloy construction. It has IP66 and IK10 protection, providing strong resistance against dust, water, and mechanical impact.

• Stainless steel front panel
• Aluminum alloy shell
• IP66 protection
• IK10 impact protection
• Wall-mounted installation
• Flush-mounted installation
• Compact professional design
• Suitable for indoor and outdoor entrance installations

The device measures approximately 205 × 120 × 54.5 mm when installed with the wall-mounted bracket.

Fanvil A12V Video Intercom Storage & Expansion

The A12V includes storage and expansion interfaces for additional functionality.

• MicroSD card slot
• Supports cards up to 256GB
• USB interface
• Line-out connection
• Wiegand interface
• RS485 interface
• External speaker/amplifier connectivity

Fanvil A12V Video Intercom Ideal Use Cases

This video intercom is best suited for:

• Residential apartments
• Gated communities
• Villas
• Office buildings
• Hotels
• Commercial buildings
• Property management systems
• Access-control installations
• Visitor management
• Security monitoring
• Smart building systems
• Industrial premises

Fanvil A12V Video Intercom Pros and Cons

Fanvil A12V Video Intercom FAQs

What camera does the Fanvil A12V have?
The A12V has a 4MP starlight HD camera with infrared supplementary lighting and HDR technology.

What video resolution does the A12V support?
It supports 720P and 1080P video resolution.

What is the viewing angle of the Fanvil A12V?
It has a 122° diagonal, 103° horizontal, and 54.8° vertical viewing angle.

How powerful is the A12V speaker?
The A12V features a 10W speaker and turbo sound chamber for powerful audio output.

Does the Fanvil A12V support PoE?
Yes. It supports PoE+ 802.3at Class 4.

Does it support Wiegand and RS485?
Yes. The A12V includes both Wiegand and RS485 interfaces for integration with access-control systems.

Does the A12V support a memory card?
Yes. It has a MicroSD card slot supporting cards of up to 256GB.

Is the Fanvil A12V suitable for outdoor installation?
Yes. It has IP66 and IK10 protection, making it suitable for demanding entrance environments.

Can the A12V be flush mounted?
Yes. It supports both wall-mounted and flush-mounted installation.

How much does the Fanvil A12V Video Intercom cost in Kenya?
The price is KSh 45,500.

Fanvil A12V Video Intercom Conclusion

The Fanvil A12V Video Intercom is a powerful professional video intercom that combines a 4MP starlight camera, 1080P video, 10W speaker, advanced noise reduction, SIP communication, PoE+, Wiegand, RS485, MicroSD storage, and strong IP66 and IK10 protection. These features make it suitable for demanding residential, commercial, and access-control installations.

At KSh 45,500, the Fanvil A12V is a premium video intercom option for apartments, gated communities, hotels, offices, and commercial properties requiring high-quality video, powerful audio, and flexible access-control integration.
