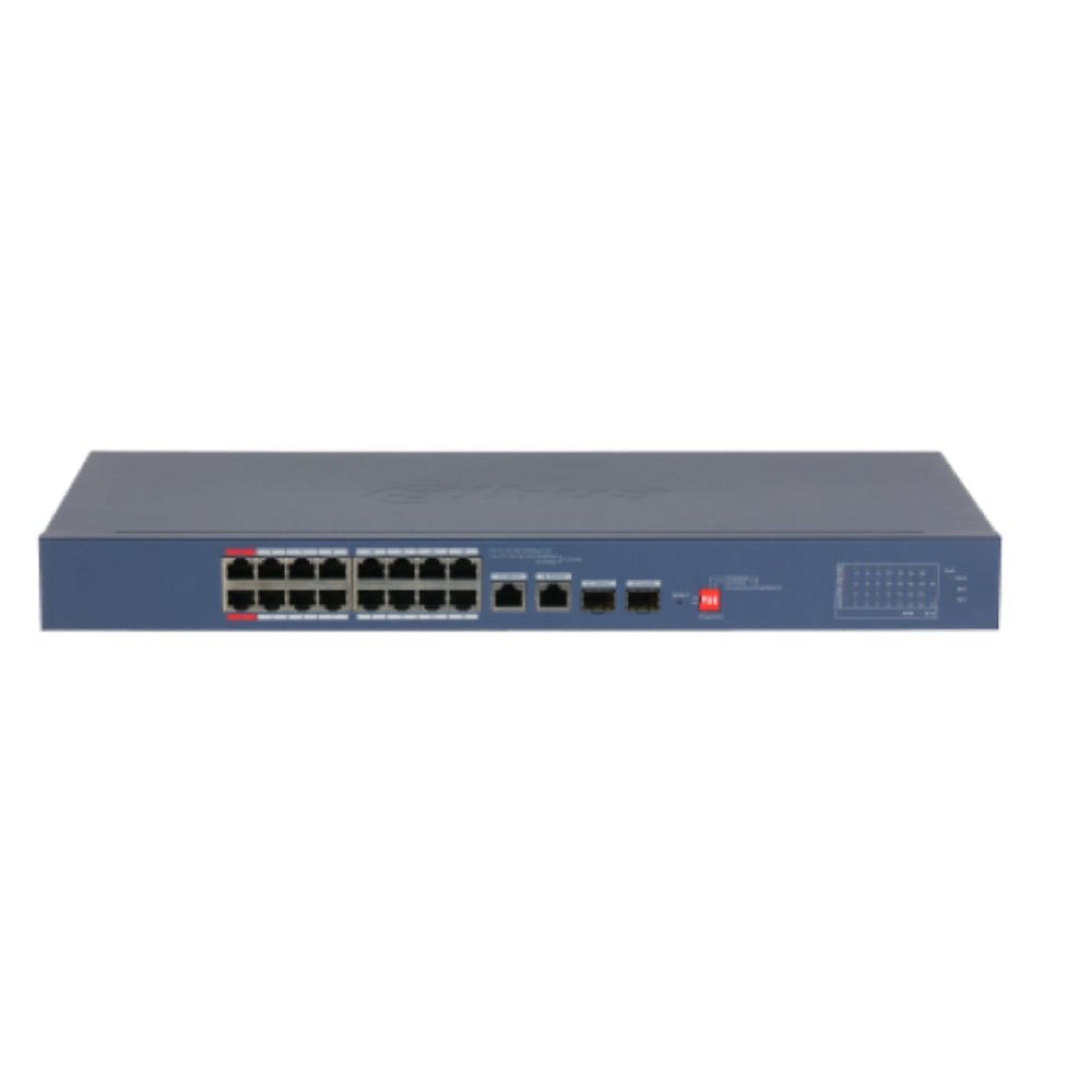

Dahua CS4218-16ET-135 18-Port Cloud Managed Desktop Switch Overview
The Dahua CS4218-16ET-135 is a cloud-managed desktop switch with 18 ports, including 16 PoE ports and 2 uplink ports (RJ45 + SFP combo). It supports IEEE802.3af/at, Hi-PoE, and IEEE802.3bt standards, making it suitable for powering high-demand devices such as IP cameras. With cloud management via the DoLynk Care platform, VLAN support, and long-distance PoE transmission up to 250 m, it’s ideal for medium-to-large surveillance and networking deployments.
Dahua CS4218-16ET-135 18-Port Cloud Managed Desktop Switch Specifications
| Component | Details |
|---|---|
| Model Number | CS4218-16ET-135 |
| Ports | 16 × RJ-45 10/100 Mbps PoE ports, 2 × RJ-45 Gigabit uplinks, 2 × SFP uplinks (combo) |
| PoE Standard | IEEE802.3af/at, Hi-PoE, IEEE802.3bt |
| PoE Budget | Up to 190 W (Port 1 ≤ 60 W, Port 2 ≤ 90 W, others ≤ 30 W) |
| Switching Capacity | 36 Gbps |
| Packet Forwarding | 26.78 Mpps |
| Transmission Modes | Standard, VLAN, PoE Watchdog, Long Distance PoE (up to 250 m) |
| Management | Web-managed + centralized cloud management via DoLynk Care |
| Features | VLAN support, loop protection, intelligent PoE power management |
| Operating Temp | –10 °C to +55 °C |
| Protection | Overvoltage, overcurrent, static electricity, lightning strikes |
| Design | Full-metal casing, fanless, dust-proof |
Dahua CS4218-16ET-135 18-Port Cloud Managed Desktop Switch Price in Kenya
| Product Description | Price Range (KES) |
|---|---|
| Dahua CS4218-16ET-135 18-Port Cloud Managed PoE Switch | KSh 18,450 – 25,500 |
Dahua CS4218-16ET-135 18-Port Cloud Managed Desktop Switch Design and Build
-
Full-metal casing for durability and heat dissipation
-
Fanless design ensures silent operation
-
DIP switch for quick mode changes (Cloud, VLAN, PoE Watchdog, Long Distance PoE)
-
Cloud-managed via DoLynk Care platform with topology visualization
Dahua CS4218-16ET-135 18-Port Cloud Managed Desktop Switch Performance
-
Supports Hi-PoE and IEEE802.3bt for high-power devices
-
PoE Watchdog automatically restarts unresponsive devices
-
Long-distance PoE transmission up to 250 m for extended deployments
-
VLAN support enhances network security and segmentation
-
Gigabit uplinks ensure fast backbone connectivity to NVRs or routers
Dahua CS4218-16ET-135 18-Port Cloud Managed Desktop Switch Ideal User Cases
-
Medium-to-large CCTV setups: Powering multiple IP cameras with high PoE demand
-
Retail chains: Centralized monitoring across outlets
-
Offices: Connecting VoIP phones, cameras, and workstations
-
Institutions: Universities, hospitals, and government facilities
Dahua CS4218-16ET-135 18-Port Cloud Managed Desktop Switch Pros and Cons
| Pros | Cons |
|---|---|
| Cloud-managed via DoLynk Care | Higher cost than smaller switches |
| 16 PoE ports with Hi-PoE support | Larger physical footprint |
| VLAN and loop protection | PoE ports limited to Fast Ethernet (10/100 Mbps) |
| Long-distance PoE up to 250 m | – |
| Rugged full-metal design | – |
Dahua CS4218-16ET-135 18-Port Cloud Managed Desktop Switch FAQs
1. How many PoE devices can it power? Up to 16 devices, depending on total power consumption (190 W budget).
2. Does it support Gigabit speeds? Yes, on the uplink ports; PoE ports are Fast Ethernet (10/100 Mbps).
3. Can it be managed remotely? Yes, via web interface and the DoLynk Care cloud platform.
4. Is it suitable for CCTV systems? Yes, it’s designed for powering IP cameras with Hi-PoE and long-distance transmission.
5. What is the warranty? Typically 3 years (region-dependent).
