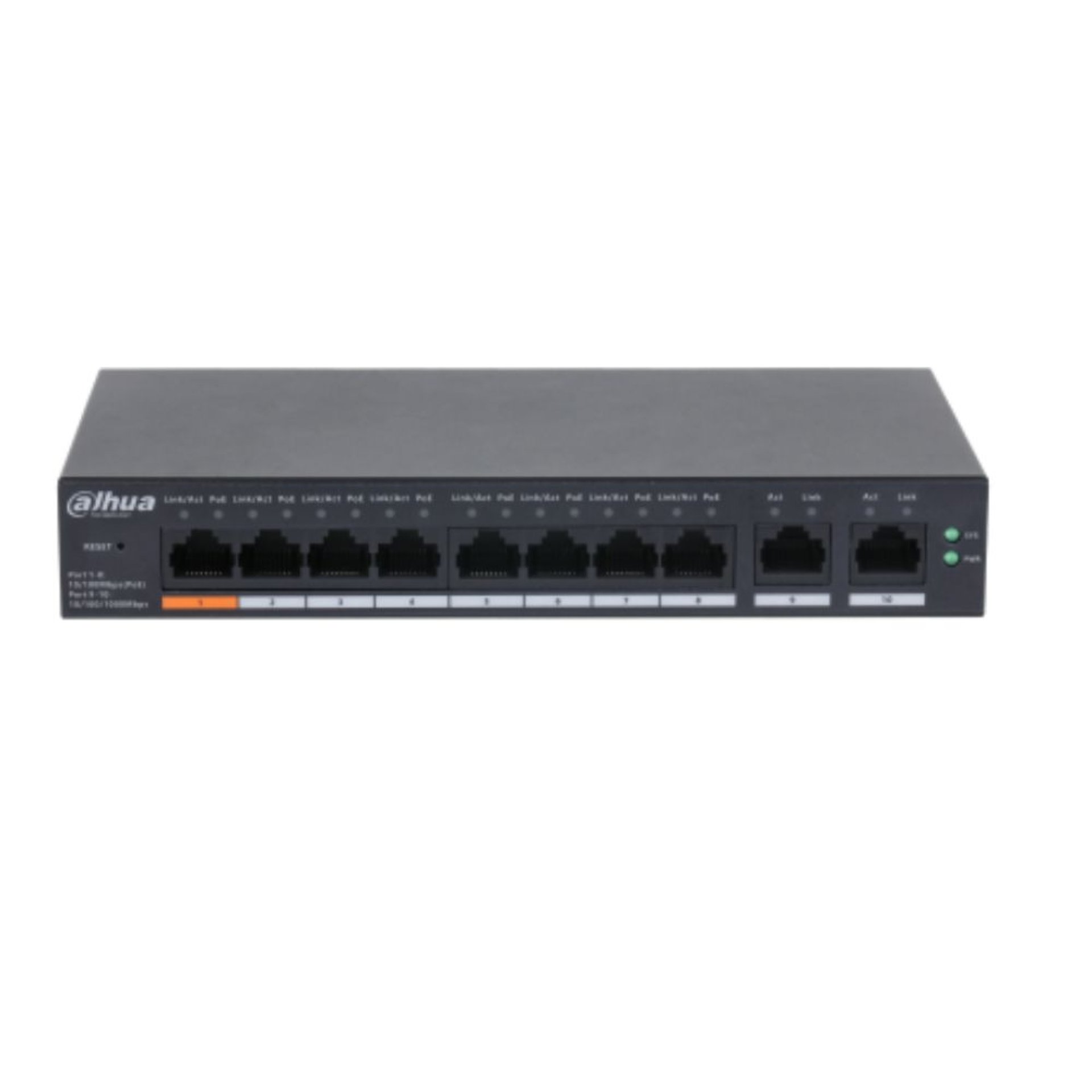

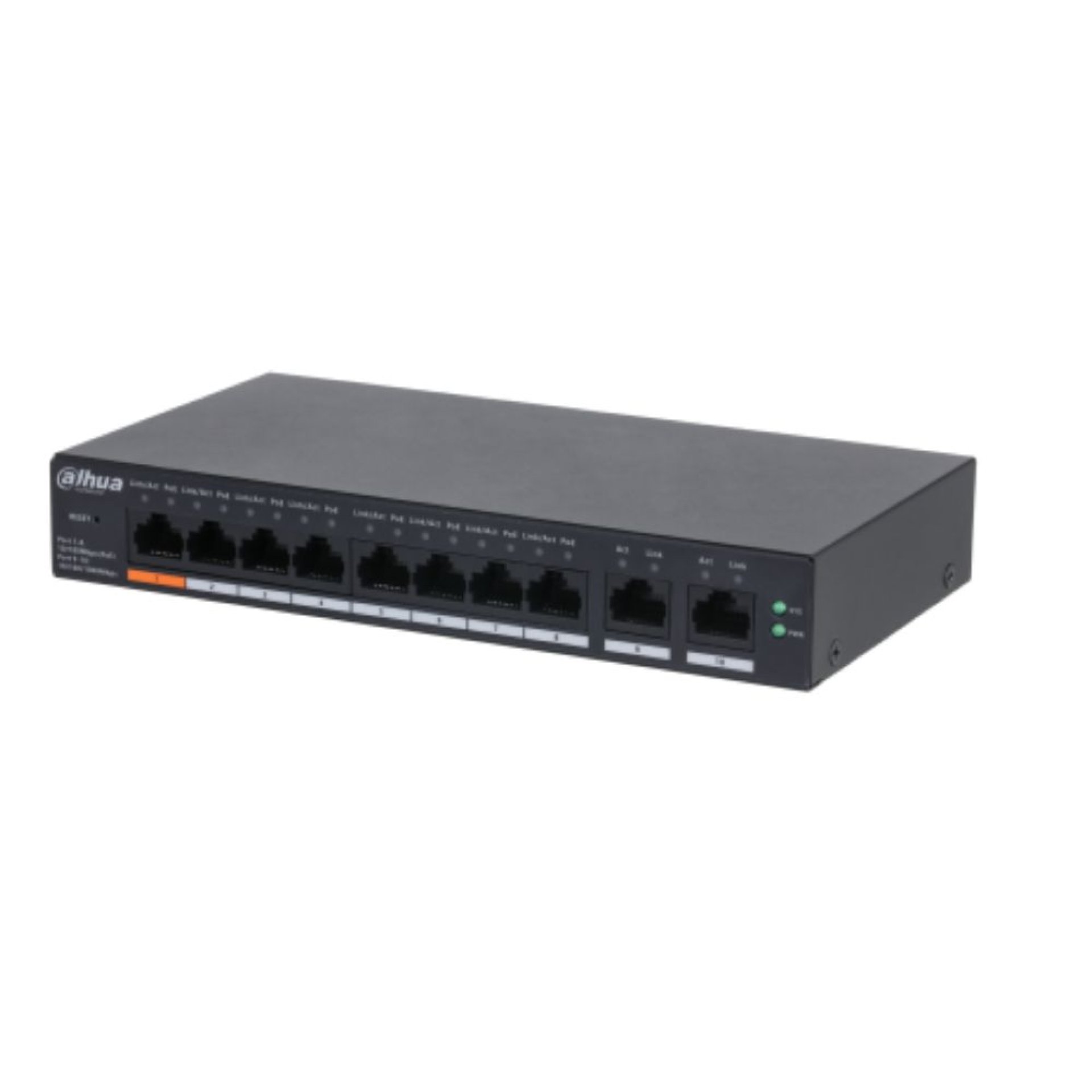

Dahua CS4010-8ET-60 10-Port Cloud Managed Desktop Switch with 8-Port PoE Overview
The Dahua CS4010-8ET-60 is a 10-port cloud-managed desktop switch featuring 8 Fast Ethernet PoE ports and 2 Gigabit uplinks. It supports cloud management via the DoLynk app, PoE watchdog, long-distance PoE transmission up to 250 m, and VLAN support. With a 60 W PoE budget, it’s designed for powering IP cameras and small-to-medium surveillance systems.
Dahua CS4010-8ET-60 10-Port Cloud Managed Desktop Switch Specifications
| Component | Details |
|---|---|
| Model Number | CS4010-8ET-60 |
| Ports | 8 × RJ-45 10/100 Mbps PoE ports, 2 × RJ-45 Gigabit uplink ports |
| PoE Standard | IEEE 802.3af/at, Hi-PoE |
| PoE Budget | 60 W total (Port 1 ≤ 60 W, Ports 2–8 ≤ 30 W each) |
| Switching Capacity | 4.8 Gbps |
| Packet Forwarding | 3.57 Mpps |
| Transmission Modes | Standard, VLAN, PoE Watchdog, Long Distance PoE (up to 250 m) |
| Management | Web-managed + centralized cloud management via DoLynk app |
| Features | VLAN support, loop protection, intelligent PoE power management |
| Operating Temp | –10 °C to +55 °C |
| Humidity | 5%–95% RH, non-condensing |
| Power Consumption | Idle ≤ 3 W; Full load ≤ 65 W |

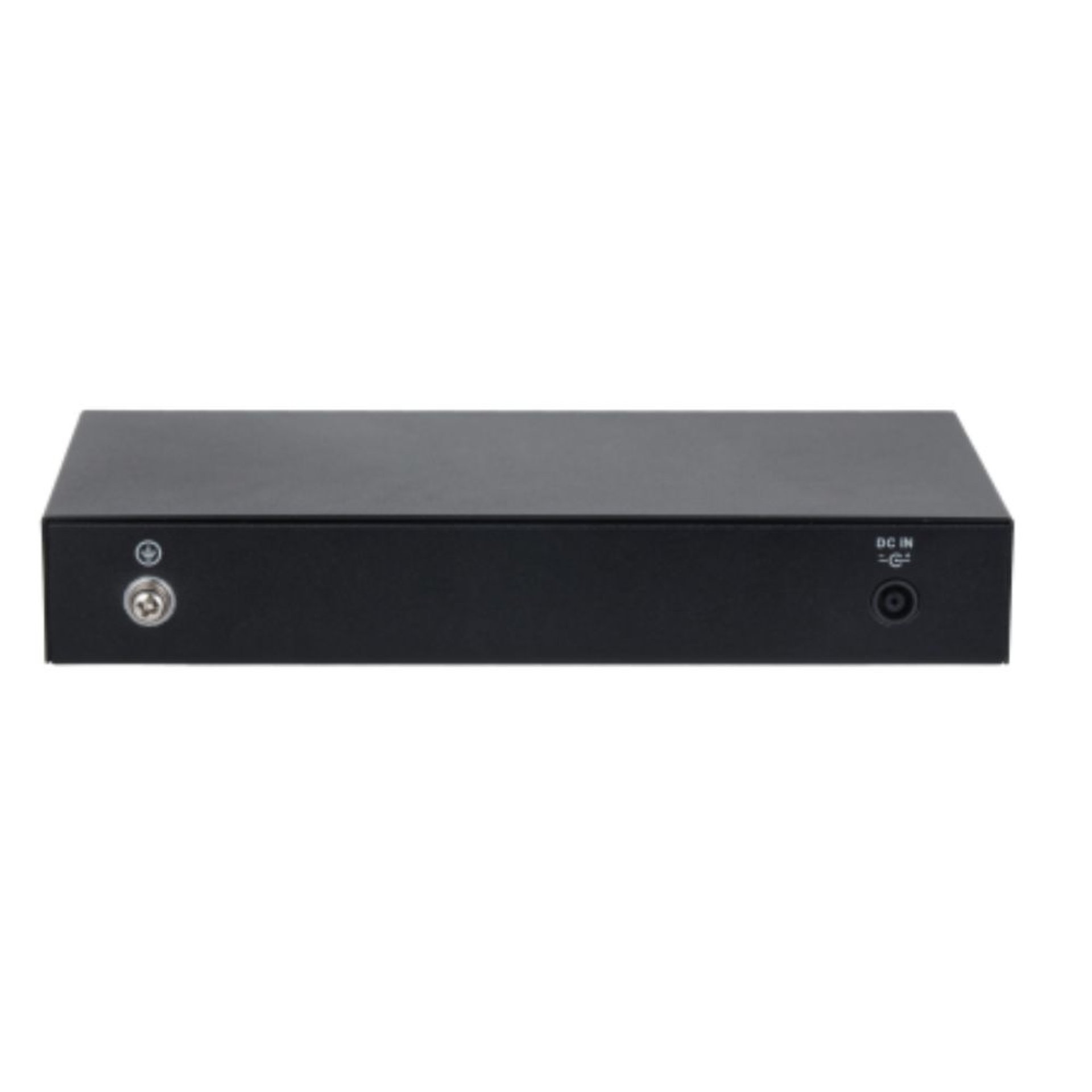

| Power Supply | External 53 VDC, 1.226 A adapter |
| Protection | Static discharge: 8 kV (air), 4 kV (contact) |
| Design | Fanless full-metal casing, dust-proof |
Dahua CS4010-8ET-60 10-Port Cloud Managed Desktop Switch Price in Kenya
| Product Description | Price Range (KES) |
|---|---|
| Dahua CS4010-8ET-60 10-Port Cloud Managed PoE Switch | KSh 6,499 – 8,999 |
Dahua CS4010-8ET-60 10-Port Cloud Managed Desktop Switch Design and Build
-
Compact desktop form factor for easy deployment
-
Fanless full-metal housing ensures silent operation and durability
-
DIP switch for quick mode changes (Cloud, VLAN, PoE Watchdog, Long Distance PoE)
-
Cloud-managed via DoLynk app for centralized control and alerts
Dahua CS4010-8ET-60 10-Port Cloud Managed Desktop Switch Performance
-
PoE Watchdog automatically restarts unresponsive devices
-
Long-distance PoE transmission up to 250 m for extended camera deployments
-
VLAN support enhances network security and segmentation
-
Gigabit uplinks ensure fast backbone connectivity to NVRs or routers
-
Cloud management allows real-time monitoring and easy configuration
Dahua CS4010-8ET-60 10-Port Cloud Managed Desktop Switch Ideal User Cases
-
Homes: Powering IP cameras and smart devices
-
Shops: Small-to-medium CCTV setups with centralized monitoring
-
Offices: Connecting VoIP phones, cameras, and workstations
-
Small businesses: Affordable cloud-managed PoE networking
Dahua CS4010-8ET-60 10-Port Cloud Managed Desktop Switch Pros and Cons
| Pros | Cons |
|---|---|
| Cloud-managed via DoLynk app | PoE budget limited to 60 W |
| 8 PoE ports with watchdog + long-distance mode | PoE ports limited to Fast Ethernet (10/100 Mbps) |
| VLAN and loop protection | Best suited for small-to-medium setups |
| Fanless metal design for durability | – |
| Affordable price | – |
Dahua CS4010-8ET-60 10-Port Cloud Managed Desktop Switch FAQs
1. How many PoE devices can it power? Up to 8 devices, depending on total power consumption (60 W budget).
2. Does it support Gigabit speeds? Yes, on the 2 uplink ports; PoE ports are Fast Ethernet (10/100 Mbps).
3. Can it be managed remotely? Yes, via web interface and the DoLynk cloud app.
4. Is it suitable for CCTV systems? Yes, it’s designed for powering IP cameras with PoE watchdog and long-distance transmission.
5. What is the warranty? Typically 3 years (region-dependent).
