CUDY GS1018PS2 16-Port Gigabit PoE Switch with 2 GbE and 2 SFP Key Features
- 16 × Gigabit PoE+ RJ45 ports
- 2 × Gigabit RJ45 uplink ports
- 2 × Gigabit SFP slots
- IEEE 802.3af/at PoE support
- Up to 30W PoE output per port
- 200W power supply
- Extend mode for up to 250m transmission
- VLAN mode for network isolation
- PoE Watchdog for automatic device recovery
- Intelligent PoE power management
- Desktop or rack-mount installation
CUDY GS1018PS2 16-Port Gigabit PoE Switch with 2 GbE and 2 SFP Introduction
The CUDY GS1018PS2 16-Port Gigabit PoE Switch with 2 GbE and 2 SFP is a high-capacity network switch designed for IP surveillance, wireless access points, office networks and other PoE deployments. It combines 16 Gigabit PoE+ ports, two additional Gigabit RJ45 uplinks and two 1.25G SFP slots for flexible network expansion.
The switch supports IEEE 802.3af/at PoE, delivering up to 30W per PoE port. Its 200W power supply provides a substantial PoE budget for connecting multiple compatible devices.
CUDY GS1018PS2 16-Port Gigabit PoE Switch with 2 GbE and 2 SFP Price in Kenya
| Product | Price in Kenya |
|---|---|
| CUDY GS1018PS2 16-Port Gigabit PoE Switch with 2 GbE and 2 SFP | KSh 18,000 |
CUDY GS1018PS2 16-Port Gigabit PoE Switch with 2 GbE and 2 SFP Key Specifications
| Specification | Details |
|---|---|
| Model | GS1018PS2 |
| PoE Ports | 16 × Gigabit RJ45 |
| Uplink Ports | 2 × Gigabit RJ45 |
| SFP Slots | 2 × 1.25G |
| PoE Standard | IEEE 802.3af/at |
| Maximum PoE per Port | 30W |
| Power Supply | 200W |
| Switching Capacity | 40Gbps |
| MAC Address Table | 2,048 |
| Installation | Desktop / Rack Mount |
CUDY GS1018PS2 16-Port Gigabit PoE Switch with 2 GbE and 2 SFP Performance
- Provides Gigabit Ethernet connectivity across its network ports.
- Offers up to 40Gbps switching capacity.
- Supports IEEE 802.3af/at PoE for compatible powered devices.
- Delivers up to 30W to an individual PoE port.
- Intelligent power management helps manage the available PoE budget.
- Extend mode supports transmission up to 250 metres on ports 9–16, with the speed limited to 10Mbps.
- Supports up to 2,048 MAC addresses.
- PoE Watchdog can automatically restart connected devices that become inactive.
CUDY GS1018PS2 16-Port Gigabit PoE Switch with 2 GbE and 2 SFP Connectivity
- 16 × Gigabit PoE+ RJ45 ports for network devices and PoE power.
- 2 × Gigabit RJ45 uplink ports for connecting the switch to the wider network.
- 2 × 1.25G SFP slots for fiber-based uplinks.
- Supports 10/100/1000Mbps Ethernet.
- Supports 1000BASE-X through the SFP interfaces.
- Cat5e or better cable can provide Gigabit transmission up to 100 metres.
- Extend mode allows up to 250 metres on supported ports at 10Mbps.

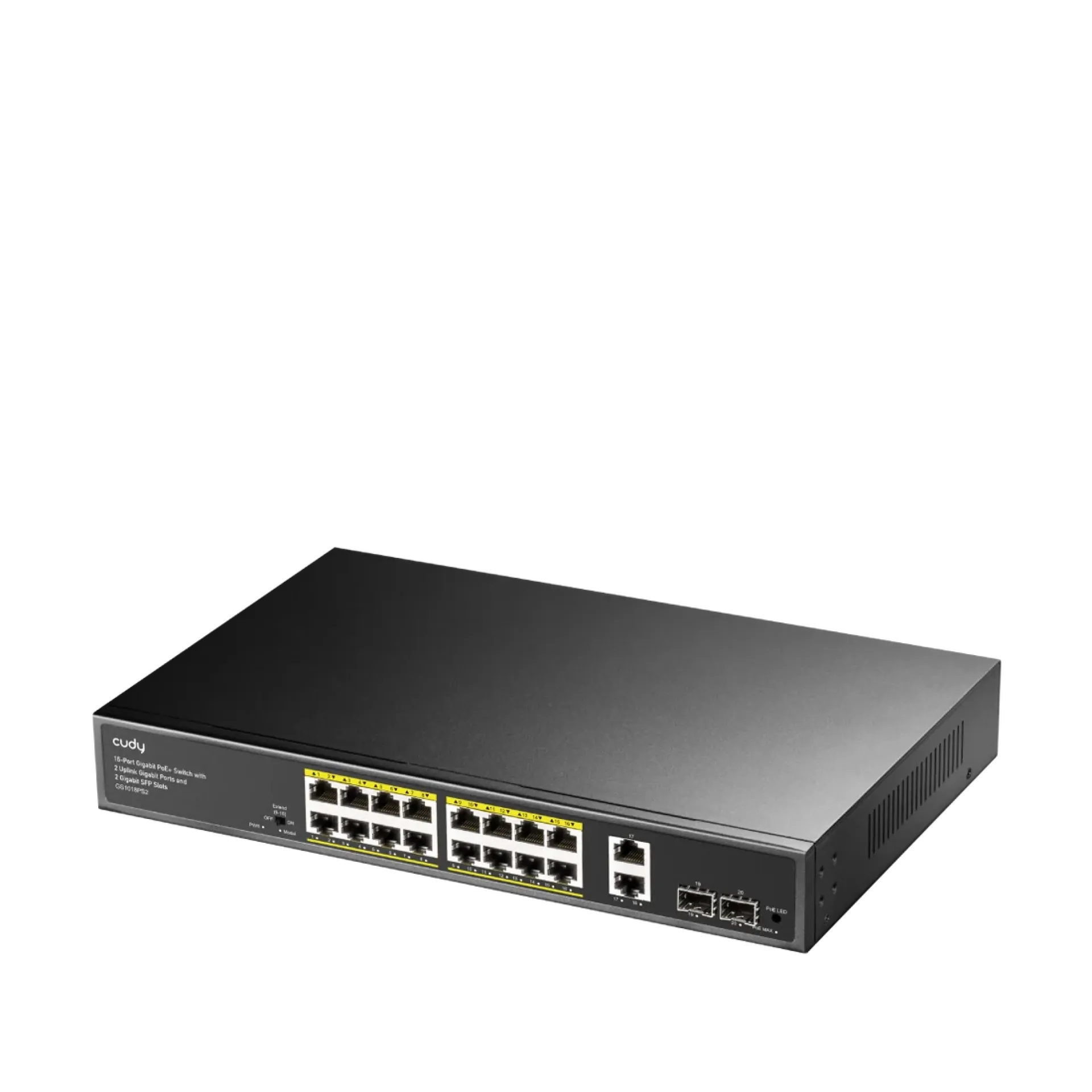

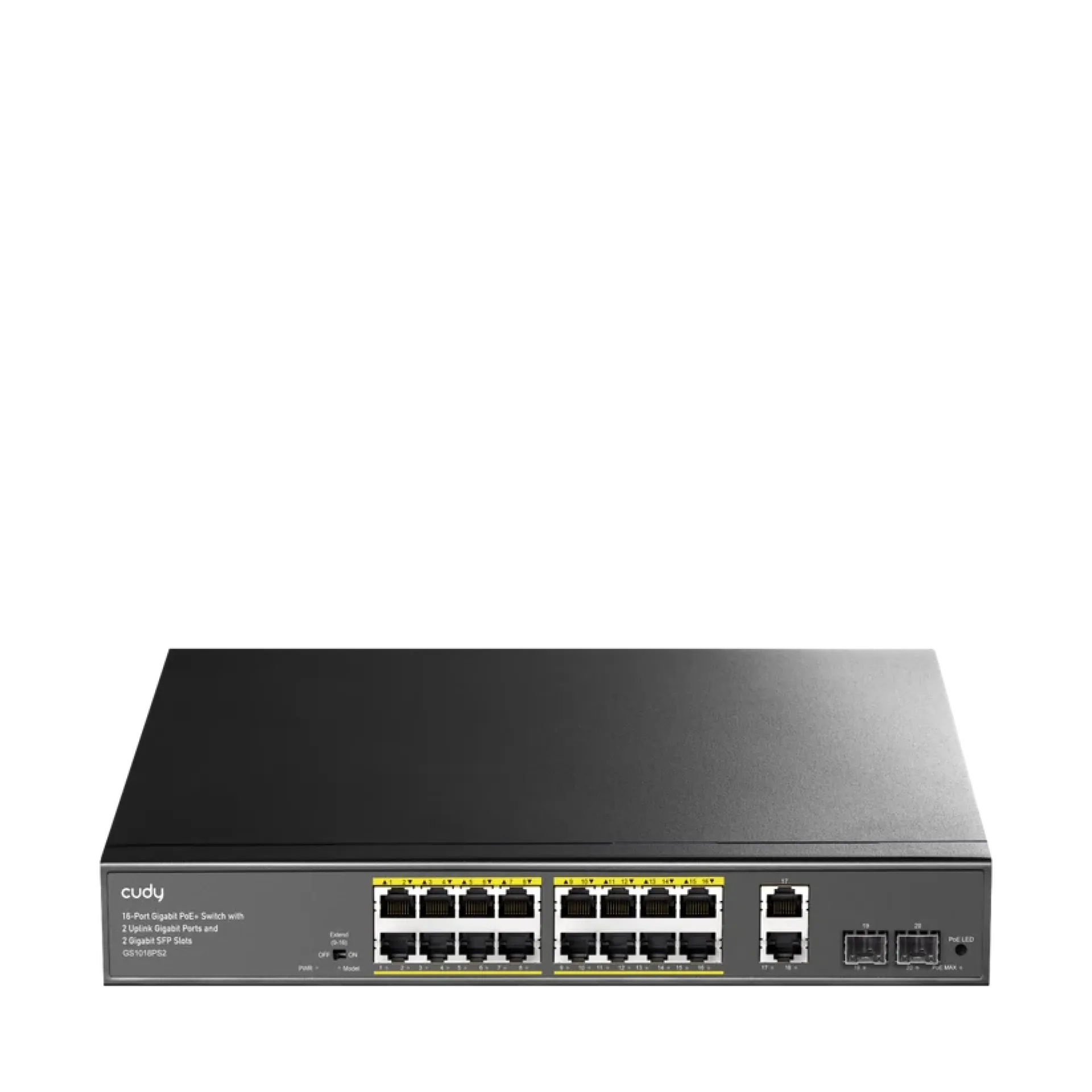

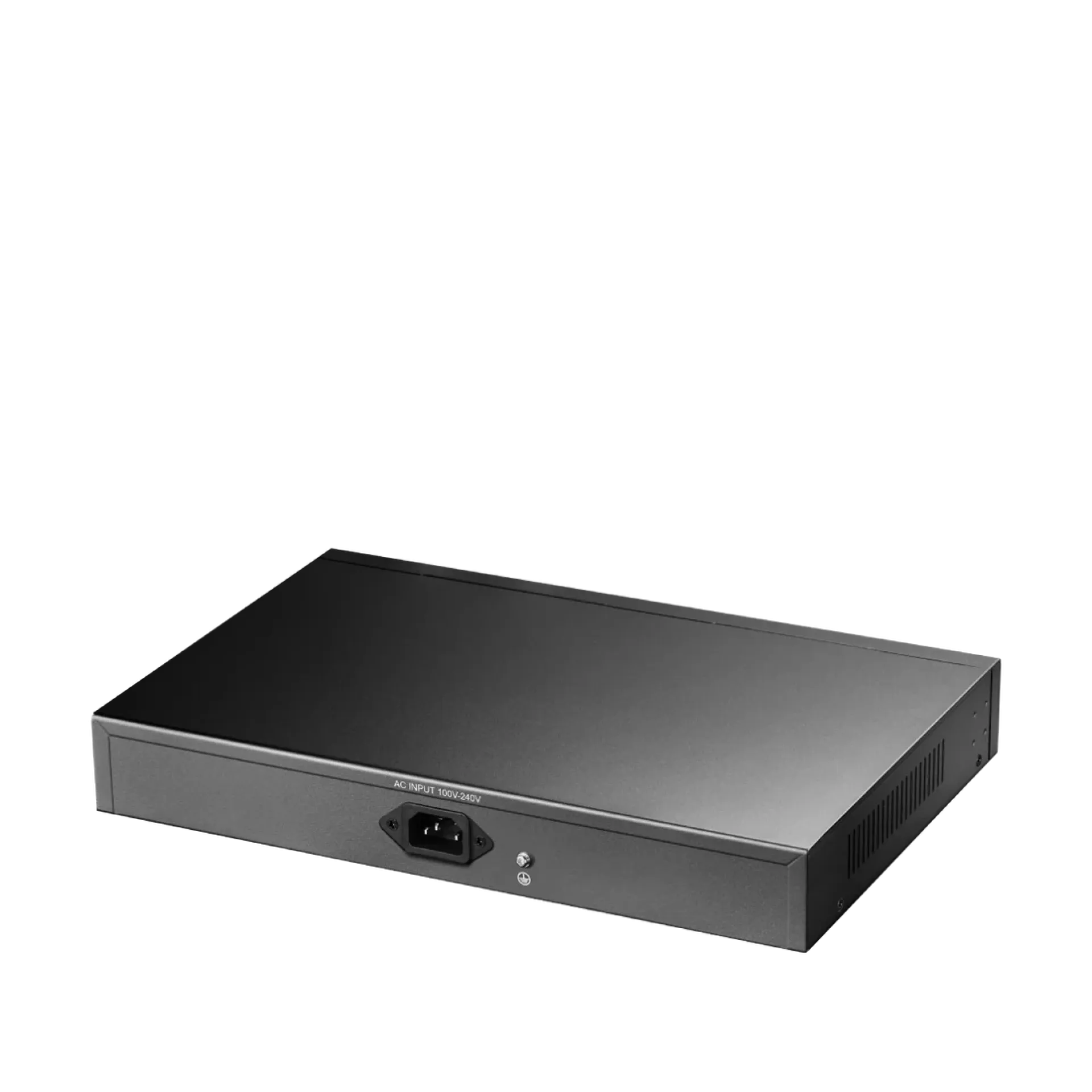

CUDY GS1018PS2 16-Port Gigabit PoE Switch with 2 GbE and 2 SFP Design and Build
- 19-inch rack-mountable design.
- Metal casing for durability.
- Silent cooling system for quieter operation.
- Desktop installation is also supported.
- Dimensions of approximately 440 × 180 × 44 mm for the 3.0 version.
- Includes mounting brackets for rack installation.
- LED indicators show power, link/activity and PoE status.
CUDY GS1018PS2 16-Port Gigabit PoE Switch with 2 GbE and 2 SFP Ideal Applications
- CCTV and IP surveillance systems
- Wireless access point deployments
- Office network infrastructure
- Campus Wi-Fi installations
- VoIP and other PoE devices
- Digital signage
- Fiber-connected network installations
- Small and medium-sized business networks
CUDY GS1018PS2 16-Port Gigabit PoE Switch with 2 GbE and 2 SFP Pros and Cons
| Pros | Cons |
|---|---|
| 16 Gigabit PoE+ ports | Larger than compact desktop switches |
| 2 Gigabit RJ45 uplinks | SFP modules are required for fiber connections |
| 2 Gigabit SFP slots | Extend mode reduces speed to 10Mbps |
| Up to 30W PoE per port | 200W power budget must be shared between connected PoE devices |
| 40Gbps switching capacity | — |
| VLAN and Extend modes | — |
| PoE Watchdog support | — |
| Rack-mountable metal design | — |
CUDY GS1018PS2 16-Port Gigabit PoE Switch with 2 GbE and 2 SFP FAQs
How many PoE ports does the CUDY GS1018PS2 have?
The GS1018PS2 has 16 Gigabit RJ45 PoE ports, numbered 1 to 16.
How much power can each PoE port provide?
Each PoE port can deliver up to 30W and supports IEEE 802.3af/at standards.
Does the CUDY GS1018PS2 have SFP ports?
Yes. It has two 1.25G SFP slots for fiber uplink connectivity.
Does it have additional Gigabit uplink ports?
Yes. In addition to the 16 PoE ports, the switch has two Gigabit RJ45 uplink ports and two SFP slots.
What is the power supply capacity?
The GS1018PS2 uses a 200W power supply.
Can the switch be used for CCTV?
Yes. Its 16 PoE+ ports can provide both network connectivity and power to compatible PoE IP cameras, making it suitable for larger CCTV installations.
What is Extend mode?
Extend mode allows compatible devices connected to ports 9–16 to communicate over distances of up to 250 metres. The Ethernet speed is limited to 10Mbps when this mode is active.
Can it be installed in a rack?
Yes. The GS1018PS2 supports rack mounting and comes with mounting hardware.
CUDY GS1018PS2 16-Port Gigabit PoE Switch with 2 GbE and 2 SFP Conclusion
The CUDY GS1018PS2 16-Port Gigabit PoE Switch with 2 GbE and 2 SFP is a practical networking solution for installations requiring multiple PoE connections and flexible uplink options. With 16 Gigabit PoE+ ports, two Gigabit uplinks, two SFP slots, a 200W power supply, VLAN, Extend mode and PoE Watchdog, it is well suited to CCTV, office networking, Wi-Fi and fiber-based deployments. At KSh 18,000, it provides a high-port-count PoE solution for growing networks.
