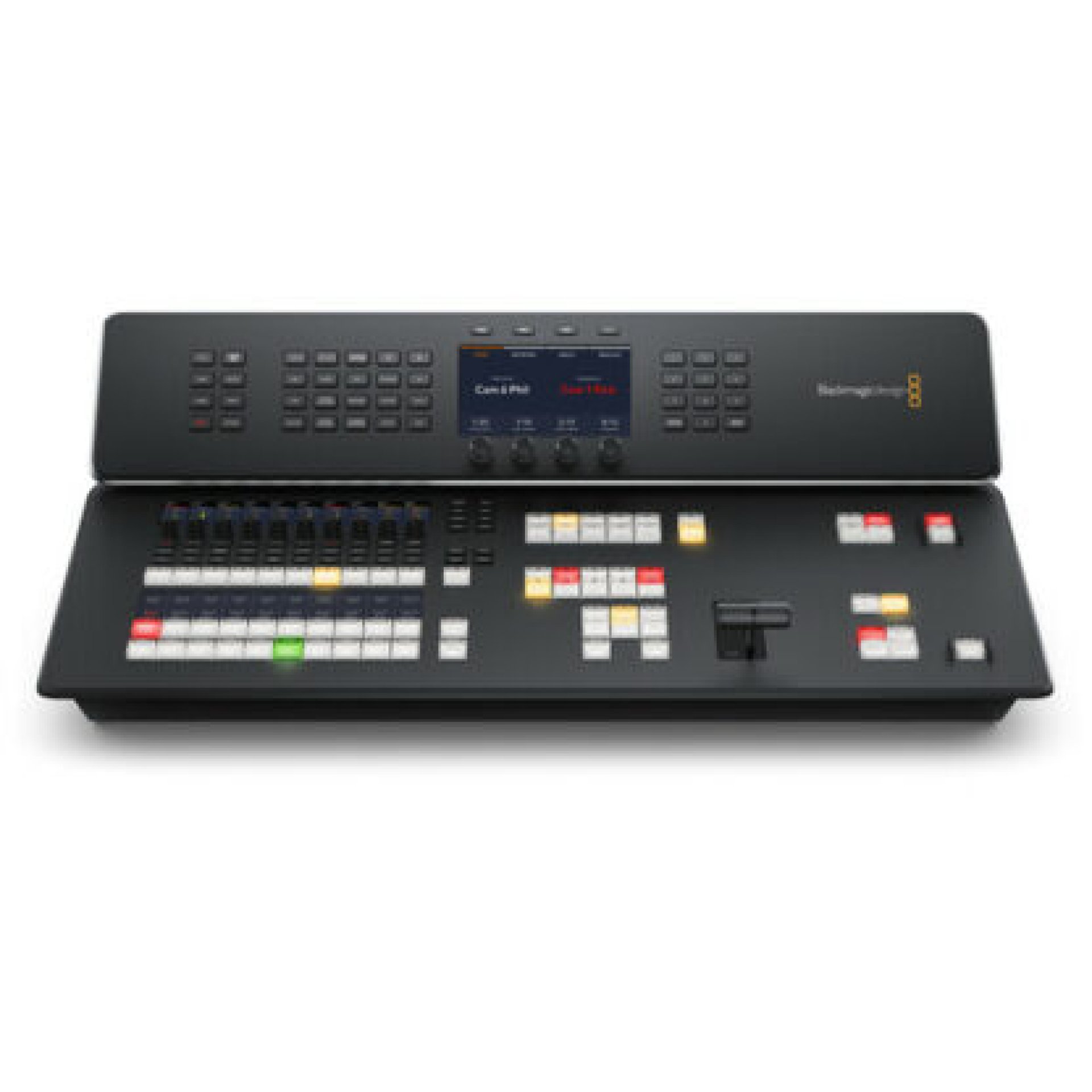

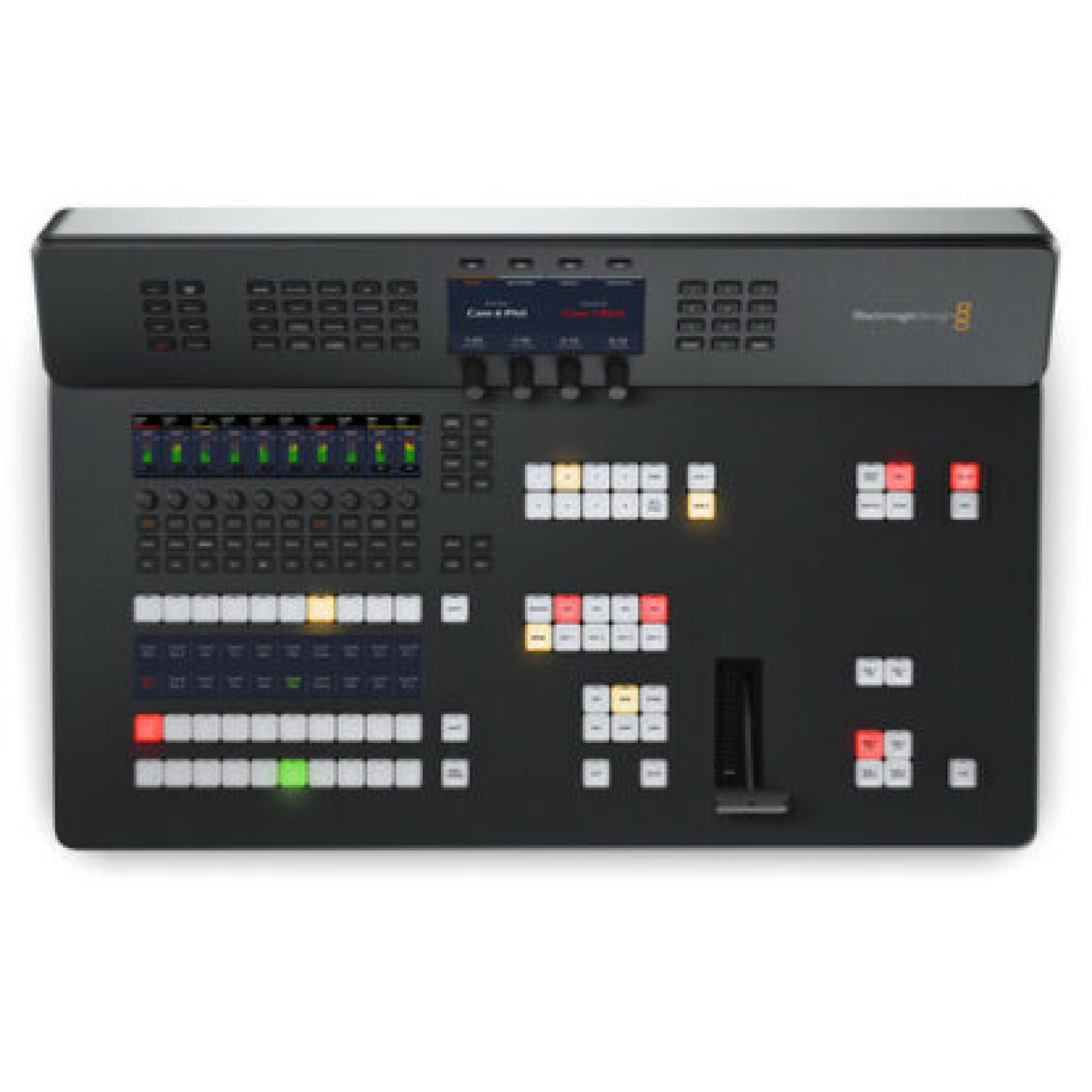

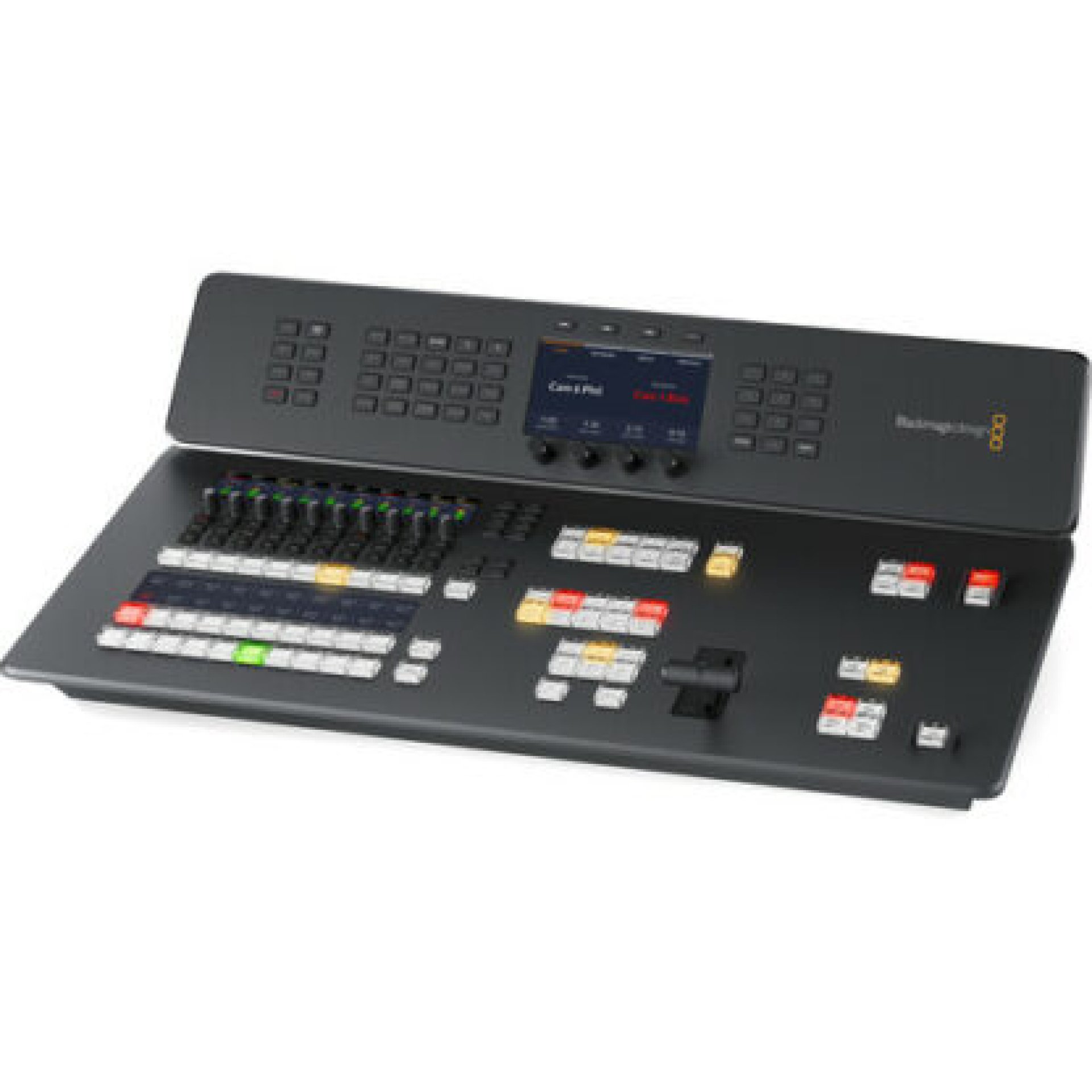

Blackmagic Design ATEM Television Studio HD8

Blackmagic Design ATEM Television Studio HD8

• 8-Input 3G-SDI 1080p60 Live Switcher
• Redesigned Buttons and Layout
• Streaming Support, USB & M.2 Recording
• Blackmagic Cloud Integration
• Webcam Support, Runs Blackmagic OS
• Up to 16 Multiview Output Sources
• Audio Mixing, Transitions, T-Bar, AUX
• Customizable Electronic LCDs
• Studio Camera Control
• Timecode, MADI, Talkback

Blackmagic Design ATEM Television Studio HD8

Blackmagic Design ATEM Television Studio HD8 – All-in-One Broadcast Switching and Streaming Solution

The Blackmagic Design ATEM Television Studio HD8 is a compact and powerful live production switcher designed for professional broadcasters, educators, event producers, and content creators. Featuring built-in streaming, multi-view monitoring, and advanced recording capabilities, this unit is the ultimate all-in-one solution for multi-camera live production workflows.

Blackmagic Design ATEM Television Studio HD8 – Seamless Streaming via RTMP

The ATEM Television Studio HD8 supports direct live streaming using Real Time Messaging Protocol (RTMP), making it easy to go live over Ethernet or via a shared internet connection through USB‑C. Compatible with Blackmagic Design cameras, it supports input streaming formats including HyperDeck High, Medium, Low, and Streaming High, Medium, and Low—ensuring smooth integration and optimized quality.

Blackmagic Design ATEM Television Studio HD8 – Record Video and Audio Directly via USB-C

Equipped with a USB-C expansion port, the ATEM Television Studio HD8 allows direct recording to external media drives. This provides a fast and efficient way to capture your live programs without the need for an external recorder or complex setup.

Blackmagic Design ATEM Television Studio HD8 – Versatile Video Recording Capabilities

The ATEM Television Studio HD8 records your program feed in H.264 .mp4 format with AAC audio. SDI inputs can also be recorded individually as separate .mp4 files at up to 70Mb/s, providing high-quality isolated recordings perfect for post-production or archival.

Blackmagic Design ATEM Television Studio HD8 – High-Quality Audio Recording

Beyond video, the ATEM Television Studio HD8 supports multi-channel audio recording. It captures 8 SDI 2-channel embedded audio inputs, 4 analog audio inputs, and up to 32 channels of MADI digital audio into separate 24-bit 48kHz .wav files, ensuring professional-grade audio quality.

Blackmagic Design ATEM Television Studio HD8 – Save Live Edits with DaVinci Resolve Integration

Every live switch during production is automatically recorded as a .drp file, which can be opened directly in DaVinci Resolve. This feature allows for precise re-editing or refinements in post-production, giving you complete creative flexibility.

Blackmagic Design ATEM Television Studio HD8 – Media Pool and Format Support

All media pool stills and clips used during your production are saved in a dedicated media folder. The ATEM Television Studio HD8 supports media formatted in ExFAT (Windows/Mac), APFS, and HFS+ for broad compatibility across platforms.

Blackmagic Design ATEM Television Studio HD8 – Configurable Multi-View Monitoring

Monitor all your feeds on a single display with the Blackmagic Design ATEM Television Studio HD8’s multi-view output, available via SDI and HDMI. You can configure views to 16, 13, 10, 7, or 4-up layouts and monitor Program, Preview, Inputs, Media Players, DSKs, SuperSource, Clean Feed, along with labels and audio meters.
