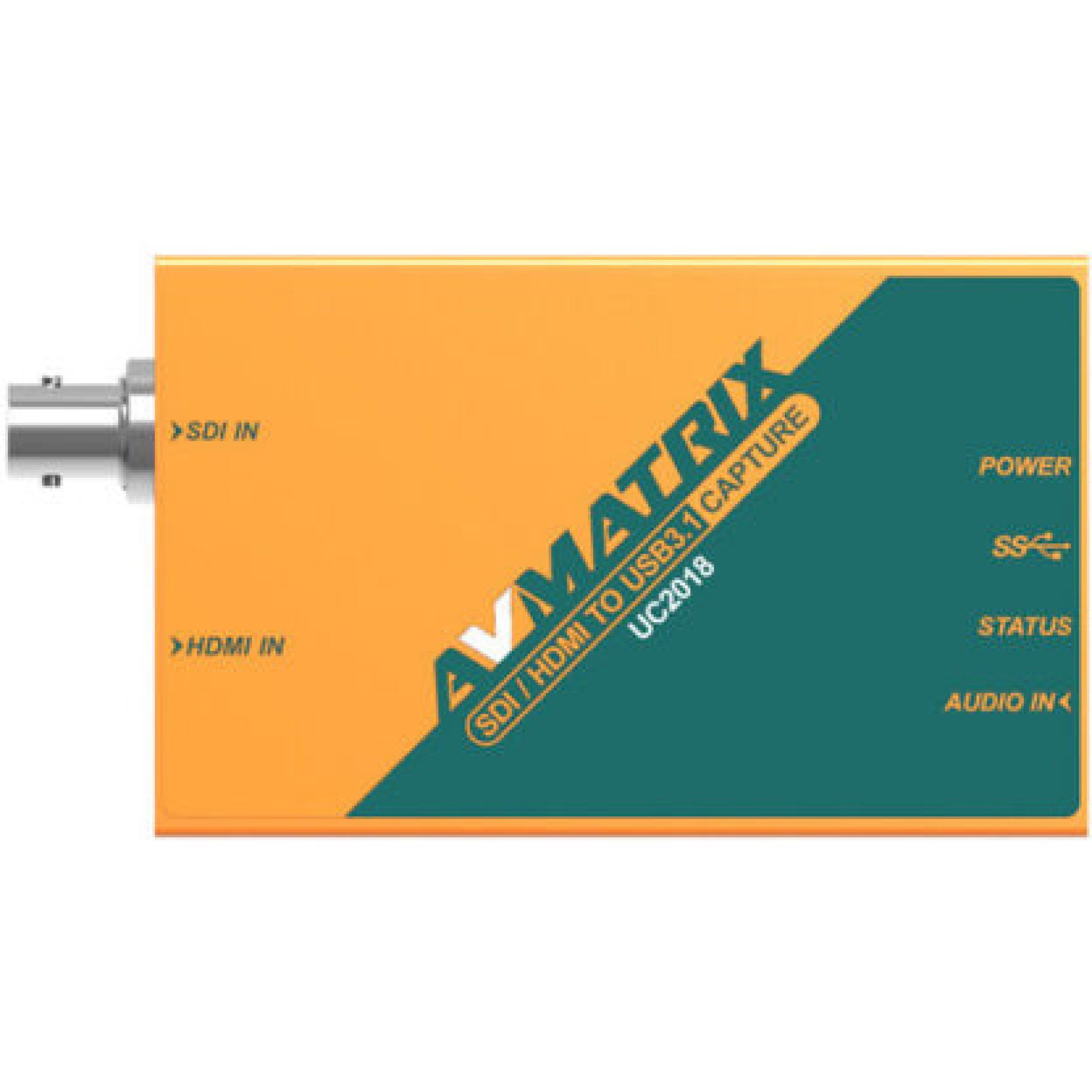

AVMatrix UC2018 SDI/HDMI to USB 3.0 Video Capture

AVMatrix UC2018 SDI/HDMI to USB 3.0 Video Capture

• Supports up to 1920 x 1080p60 Resolution
• Hardware Scaling and Deinterlacing
• Performs Frame Rate Conversion
• UVC Compatible
• Supports YUV 4:2:2 Video Output
• For Windows, Linus, and macOS
• Works with Third-Party Capture Software
• USB Powered

AVMatrix UC2018 SDI/HDMI to USB 3.0 Video Capture

AVMatrix UC2018 SDI/HDMI to USB 3.0 Video Capture – Streamlined Professional Signal Conversion

The AVMatrix UC2018 SDI/HDMI to USB 3.0 Video Capture is a reliable, high-performance solution for content creators, broadcasters, and live streamers. Designed to convert SDI or HDMI video signals into uncompressed USB 3.0 output, it allows direct capture to your computer for live streaming, conferencing, or recording with stunning clarity and low latency.

AVMatrix UC2018 SDI/HDMI to USB 3.0 Video Capture – Dual Input Versatility

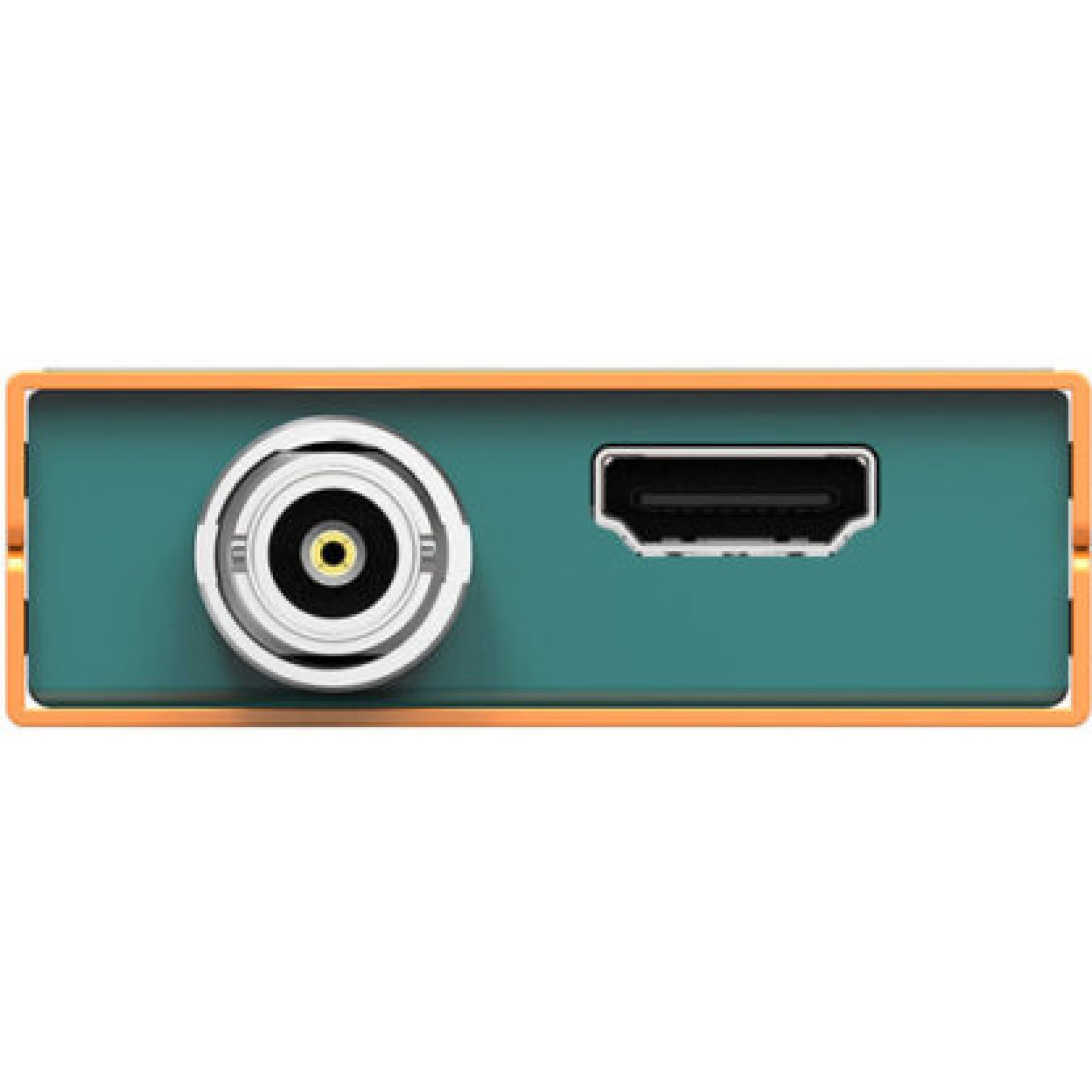

With both 3G-SDI and HDMI 1.4a inputs, the AVMatrix UC2018 supports a wide range of resolutions up to 1080p60. It automatically detects and adapts to the input signal, allowing you to switch between professional and consumer video sources with ease—ideal for studio, field, or hybrid production setups.

AVMatrix UC2018 SDI/HDMI to USB 3.0 Video Capture – High-Speed USB 3.0 Output

Equipped with a USB 3.0 Type-C interface, the UC2018 offers high-speed, low-latency video transmission to your PC or Mac. It supports UVC and UAC protocols, which means it's plug-and-play compatible with most operating systems and streaming software—no drivers required.

AVMatrix UC2018 SDI/HDMI to USB 3.0 Video Capture – Compatible with Major Streaming Platforms

The AVMatrix UC2018 is fully compatible with popular platforms and software including OBS Studio, Zoom, Skype, Microsoft Teams, YouTube Live, Wirecast, VLC, and more. Whether you're broadcasting a church service, live event, online class, or corporate webinar, the UC2018 ensures seamless integration.

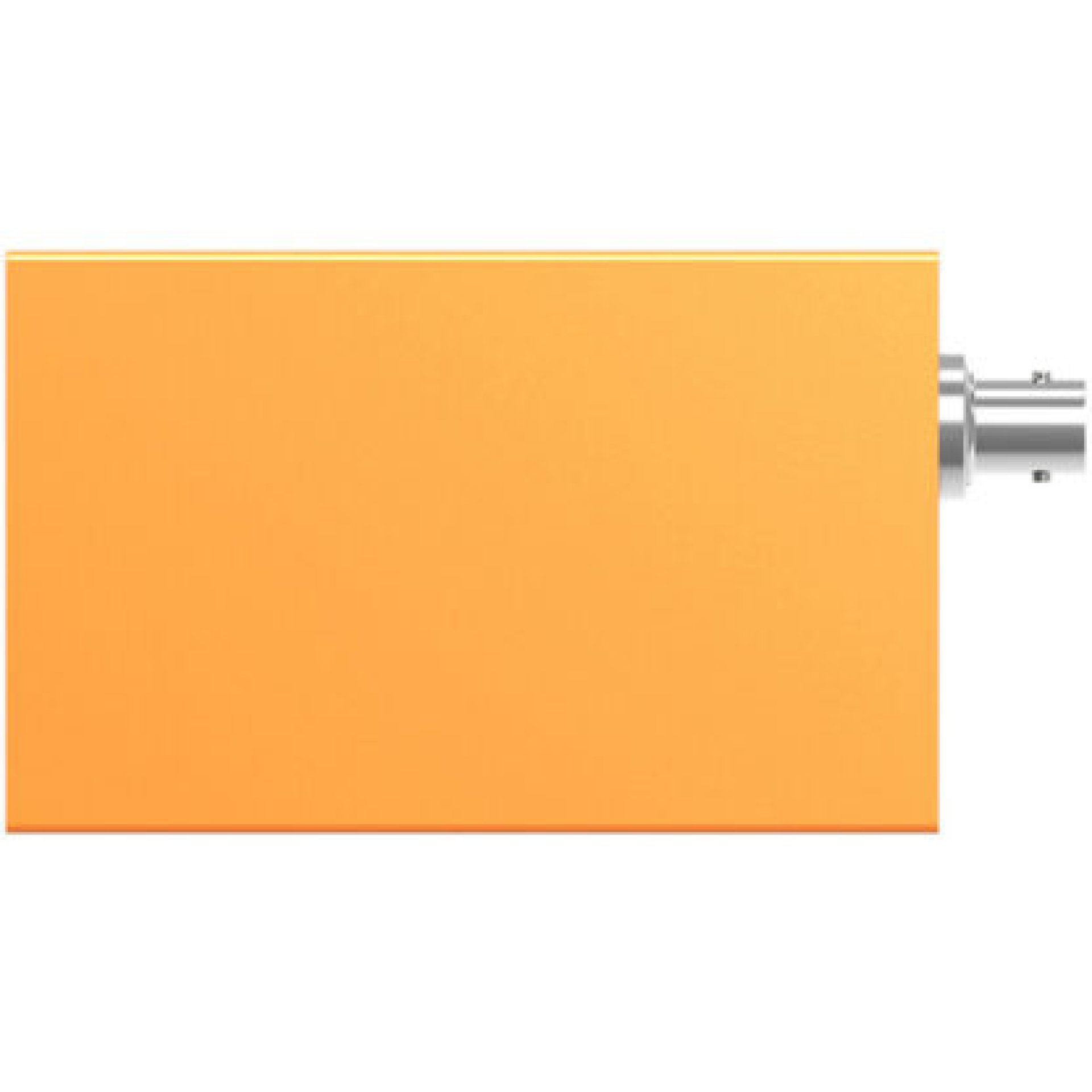

AVMatrix UC2018 SDI/HDMI to USB 3.0 Video Capture – Compact and Portable Design

Measuring just 92 x 58 x 19 mm and weighing only 205 grams, the AVMatrix UC2018 is lightweight and rugged, making it ideal for mobile use. Its durable metal casing protects the internal components and ensures reliable performance in any environment.

AVMatrix UC2018 SDI/HDMI to USB 3.0 Video Capture – Wide Resolution Support

This capture device supports a broad range of input and output resolutions, including:

• Input: 1080p, 1080i, 720p, 576p, 480p, 480i (via SDI or HDMI)

• Output: Customizable resolutions up to 1920x1200, supporting popular formats such as 1080p, 720p, and 1024x768 among many others

The output is delivered in YUY2 color space, maintaining high video fidelity and accurate color reproduction.

AVMatrix UC2018 SDI/HDMI to USB 3.0 Video Capture – Audio Input and Quality

In addition to embedded SDI and HDMI audio, the AVMatrix UC2018 features a 3.5mm stereo line-in jack, allowing external microphones or audio mixers to be connected. It supports 2-channel, 16-bit PCM audio at 48kHz, providing clear and professional sound for all your recordings and streams.

AVMatrix UC2018 SDI/HDMI to USB 3.0 Video Capture – Efficient Power and Broad System Support

Consuming only 3.5W of power, the device is highly efficient and powered directly via USB. It works with Windows, macOS, and Linux, requiring no additional drivers. Its support for ExFAT, HFS+, and APFS formatted media ensures compatibility with a wide range of systems and storage devices.

AVMatrix UC2018 SDI/HDMI to USB 3.0 Video Capture – Ideal for Every Application

Whether you're streaming a live concert, delivering a virtual lecture, conducting a remote interview, or producing content in the field, the AVMatrix UC2018 SDI/HDMI to USB 3.0 Video Capture delivers high-definition video capture with minimal setup and maximum reliability.
